3rd Row Seat Back Latch Cover Replacement (40% Outboard With AS8)

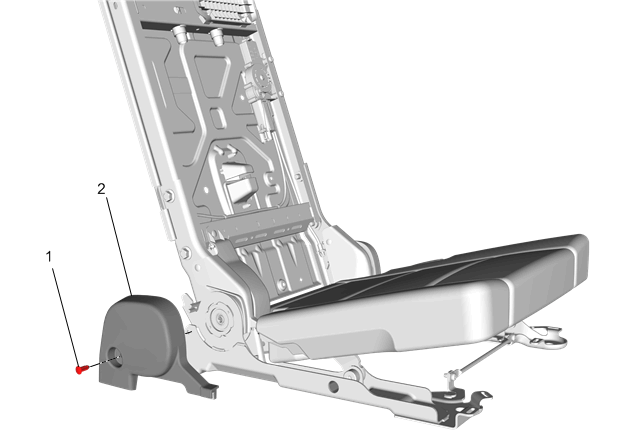

Fig 1: 3rd Row Seat Back Latch Cover (40% Outboard with AS8)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the 3rd row seat. Refer to 3rd Row Seat Removal and Installation .
1	3rd Row Seat Back Latch Cover Retainer
2	3rd Row Seat Back Latch Cover Procedure Release the metal clip retaining the cover to the seat frame. Release the plastic tab from the hook feature on the seat frame and remove the cover.

Callout

Component Name

Preliminary Procedures
Remove the 3rd row seat. Refer to 3rd Row Seat Removal and Installation .

3rd Row Seat Back Latch Cover Retainer

3rd Row Seat Back Latch Cover

Procedure

Release the metal clip retaining the cover to the seat frame.
Release the plastic tab from the hook feature on the seat frame and remove the cover.
