Rear Seat Back Folding Switch Replacement

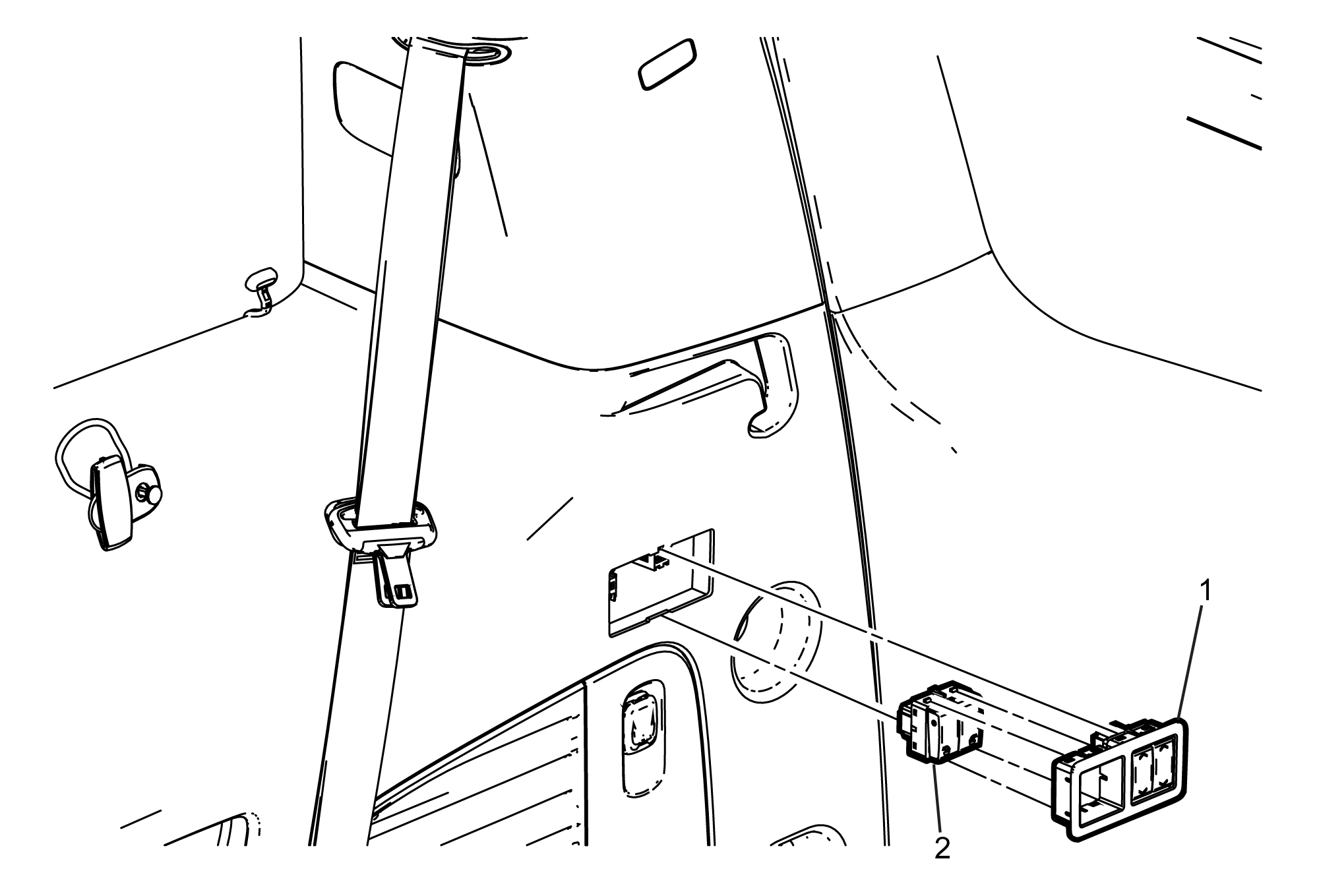

Fig 1: Rear Seat Back Folding Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Left Side, Standard Wheelbase)Quarter Lower Rear Trim Panel Replacement (Right Side, Standard Wheelbase)Quarter Lower Rear Trim Panel Replacement (Left Side, Extended Wheelbase)Quarter Lower Rear Trim Panel Replacement (Right Side, Extended Wheelbase) .
1	Rear Seat Back Folding Actuator Switch Bezel Procedure  Use a flat-bladed plastic trim tool in order to release the rear seat back folding actuator switch bezel from the quarter lower trim panel
2	Rear Seat Back Folding Actuator Switch Procedure  Disconnect the electrical connectors.
