Cruise Control Switch Replacement (Cadillac)
Cruise Control Switch Replacement (Cadillac)

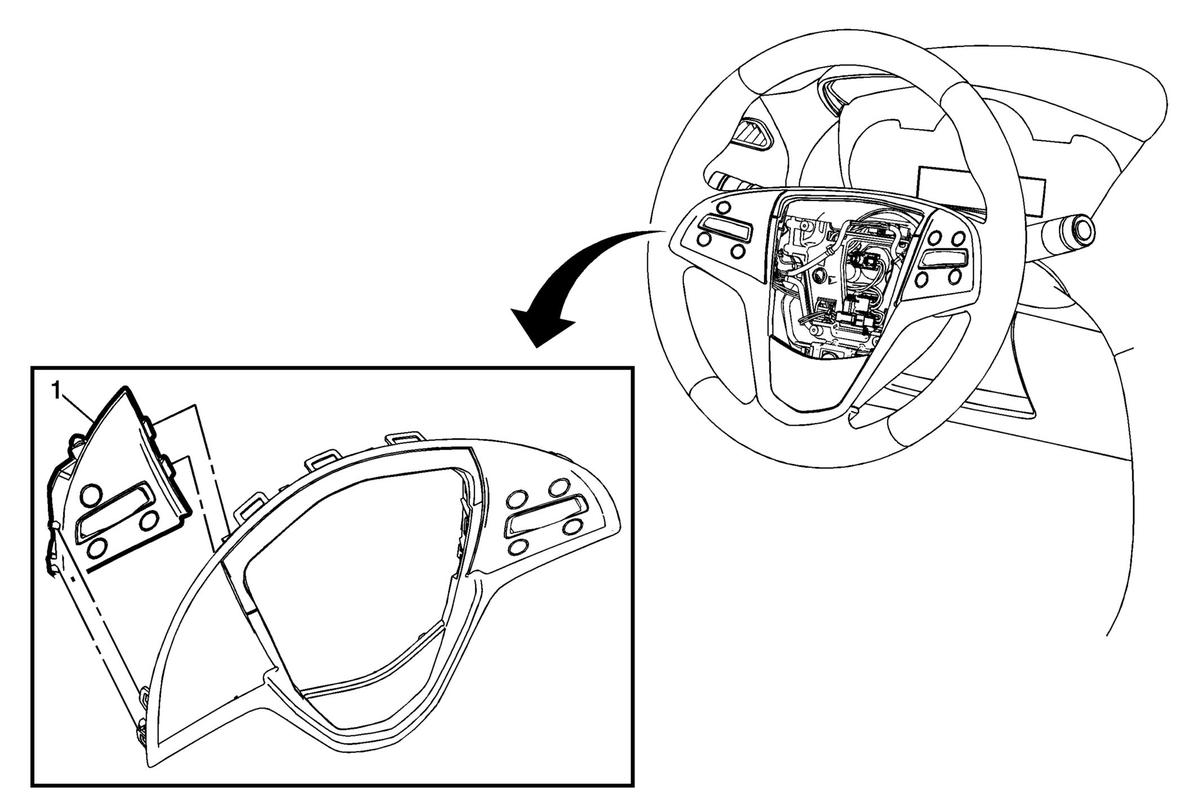

Fig 1: Cruise Control Switch (Cadillac)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Steering Wheel Airbag Replacement (Cadillac)
Steering Wheel Spoke Cover Replacement (Cadillac)
1
Cruise Control Switch
Procedure
Release the retaining tabs and remove the cruise control switch from the steering wheel spoke cover.
