Power, Ground, Serial Data and Controls (Z95)

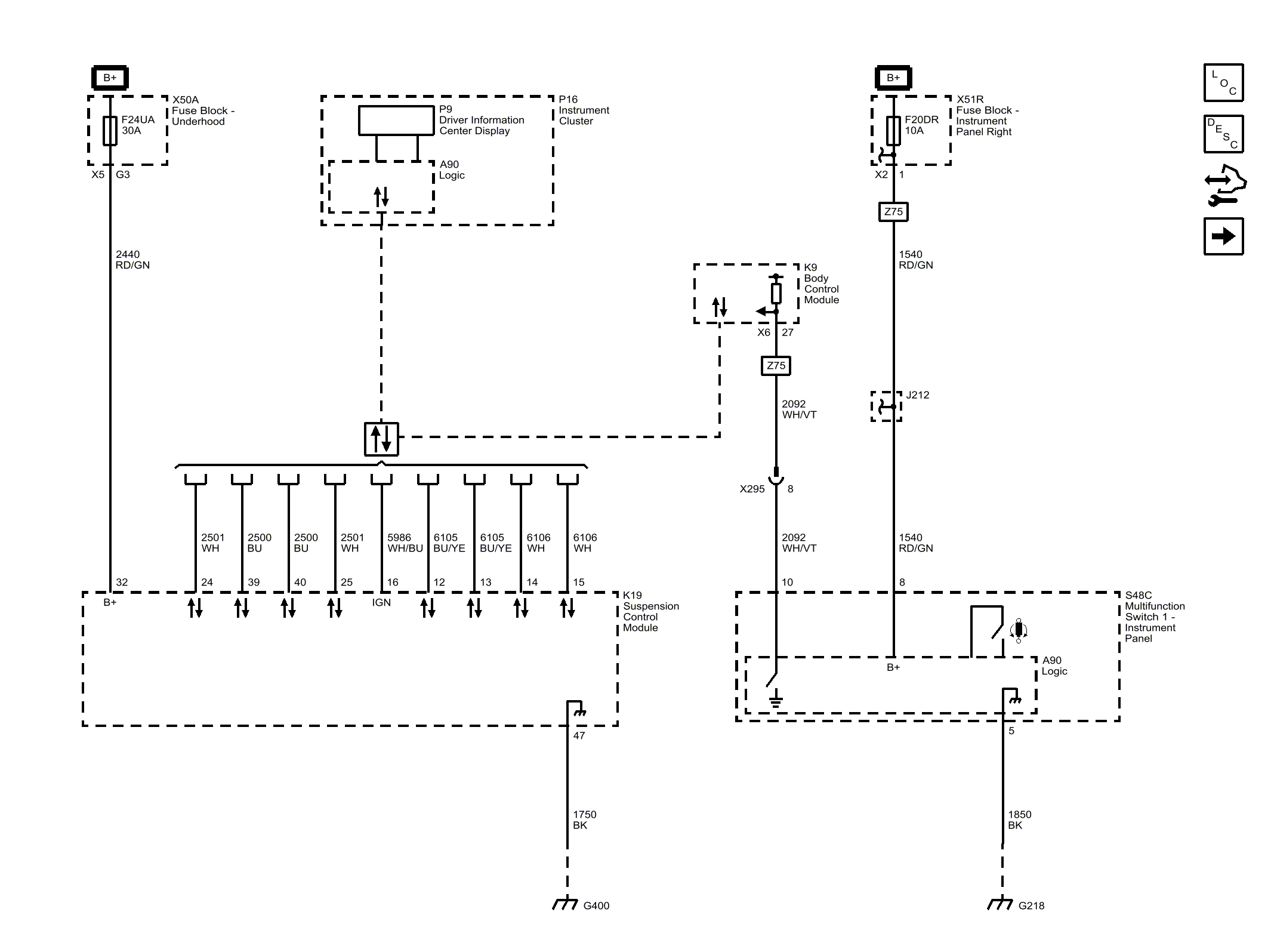

Fig 1: Power, Ground, Serial Data and Controls (Z95)

GM4690835

Courtesy of GENERAL MOTORS COMPANY
