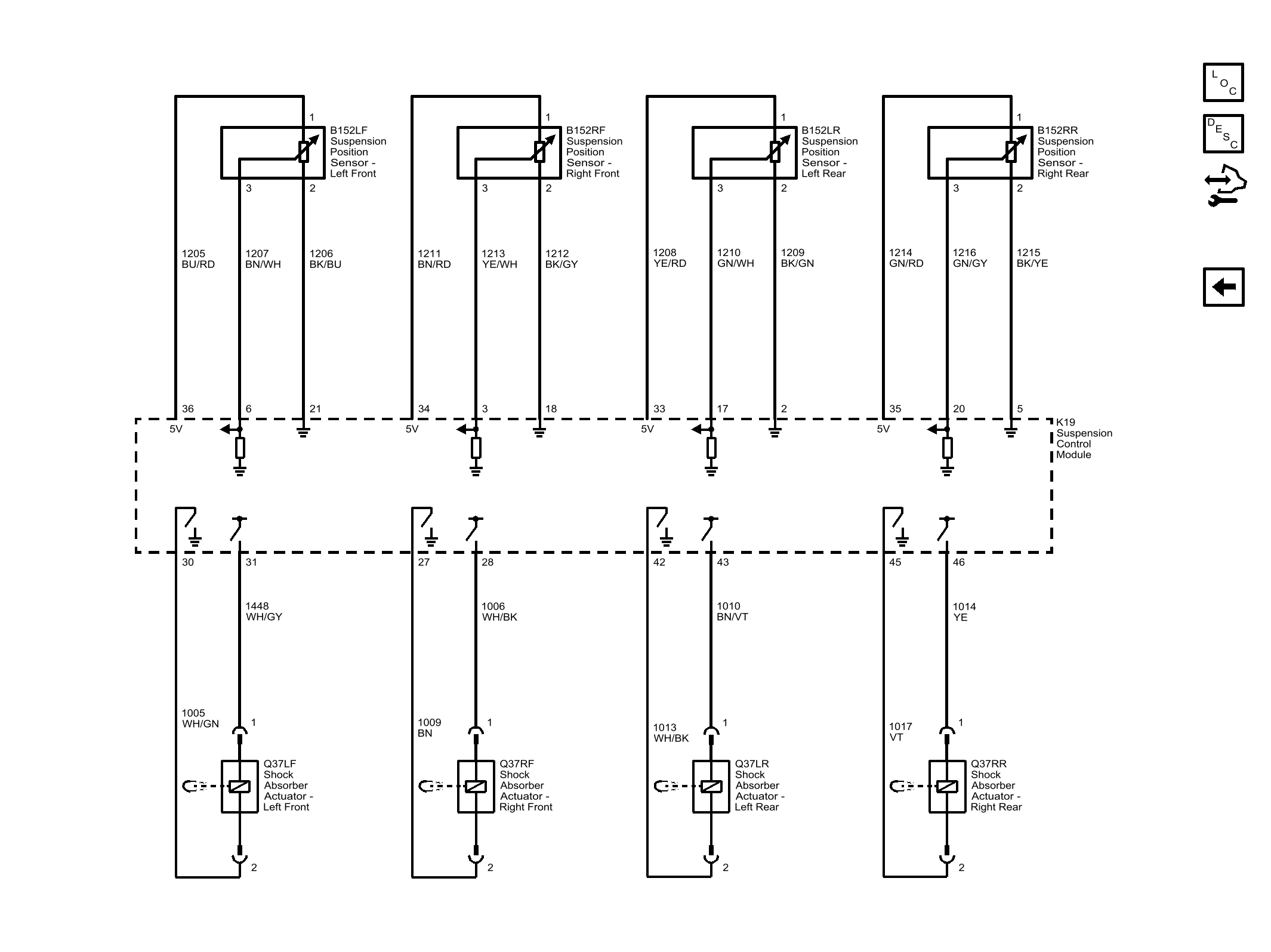

Home >> Chevrolet >> 2018 >> Suburban 3500 HD LS >> Repair and Diagnosis >> Suspension >> Electronic Suspension >> Suspension System - Suspension Damping >> Schematic Wiring Diagrams >> Electronic Suspension Control Wiring Schematics >> Position Sensors and Actuators (Z95)
