Turn Signal Switch Cancel Cam Replacement (Chevrolet/GMC)

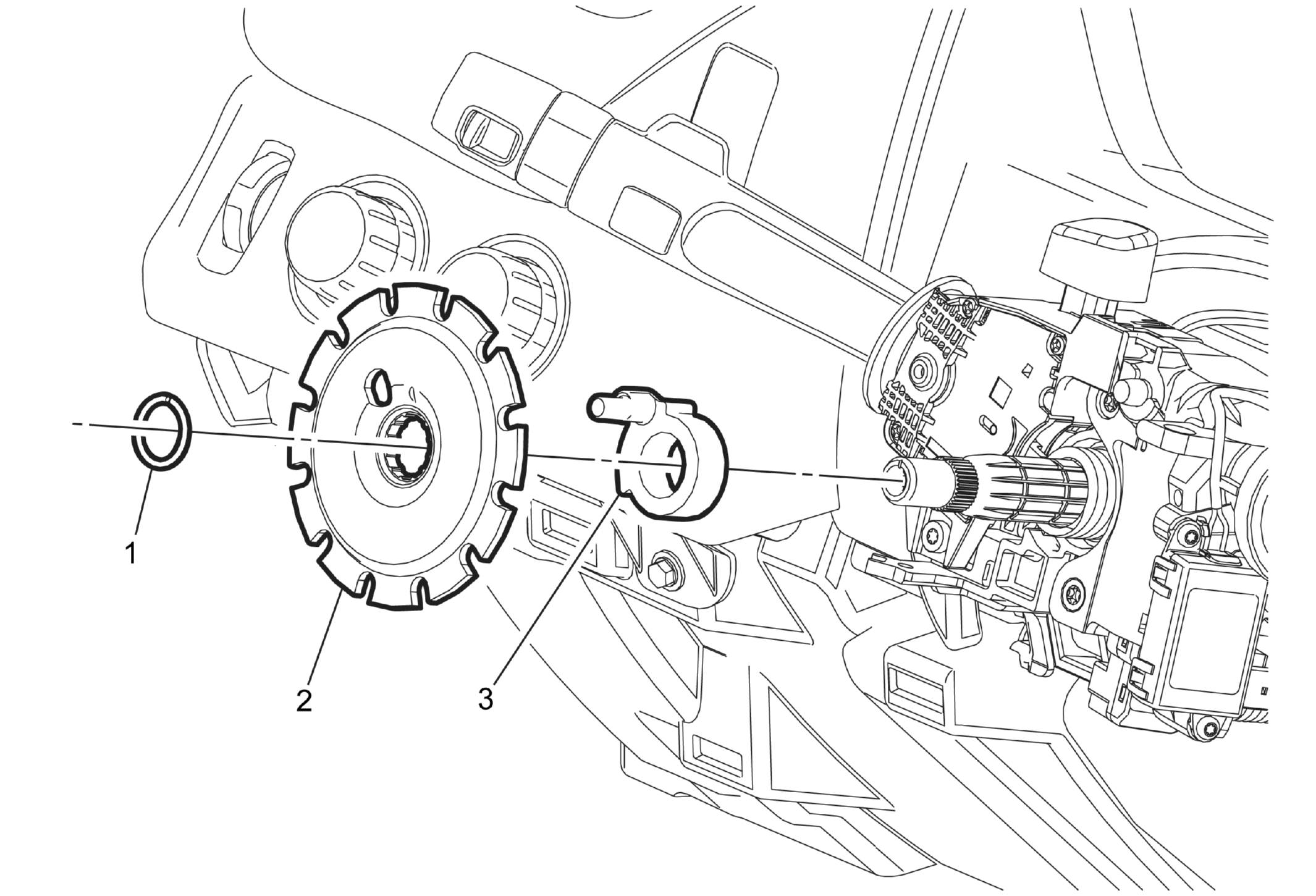

Fig 1: Turn Signal Switch Cancel Cam (Chevrolet/GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Steering Wheel Airbag Coil Replacement (Chevrolet/GMC)
1	Steering Shaft Lock Plate Retaining Ring CAUTION: Refer to Fastener Caution . Procedure Use the CH-23653 - SIR compressor to remove the steering shaft lock plate retaining ring. DISCARD the retaining ring. Install a NEW steering shaft lock plate retaining ring. Special Tools CH-23653 - SIR Steering Column Lock Plate Compressor Equivalent regional tools:Special Tools
2	Turn Signal Switch Cancel Cam Position Plate Procedure Use the alignment tooth on the turn signal switch cancel cam position plate to ensure proper alignment with the steering column shaft.
3	Turn Signal Switch Cancel Cam
