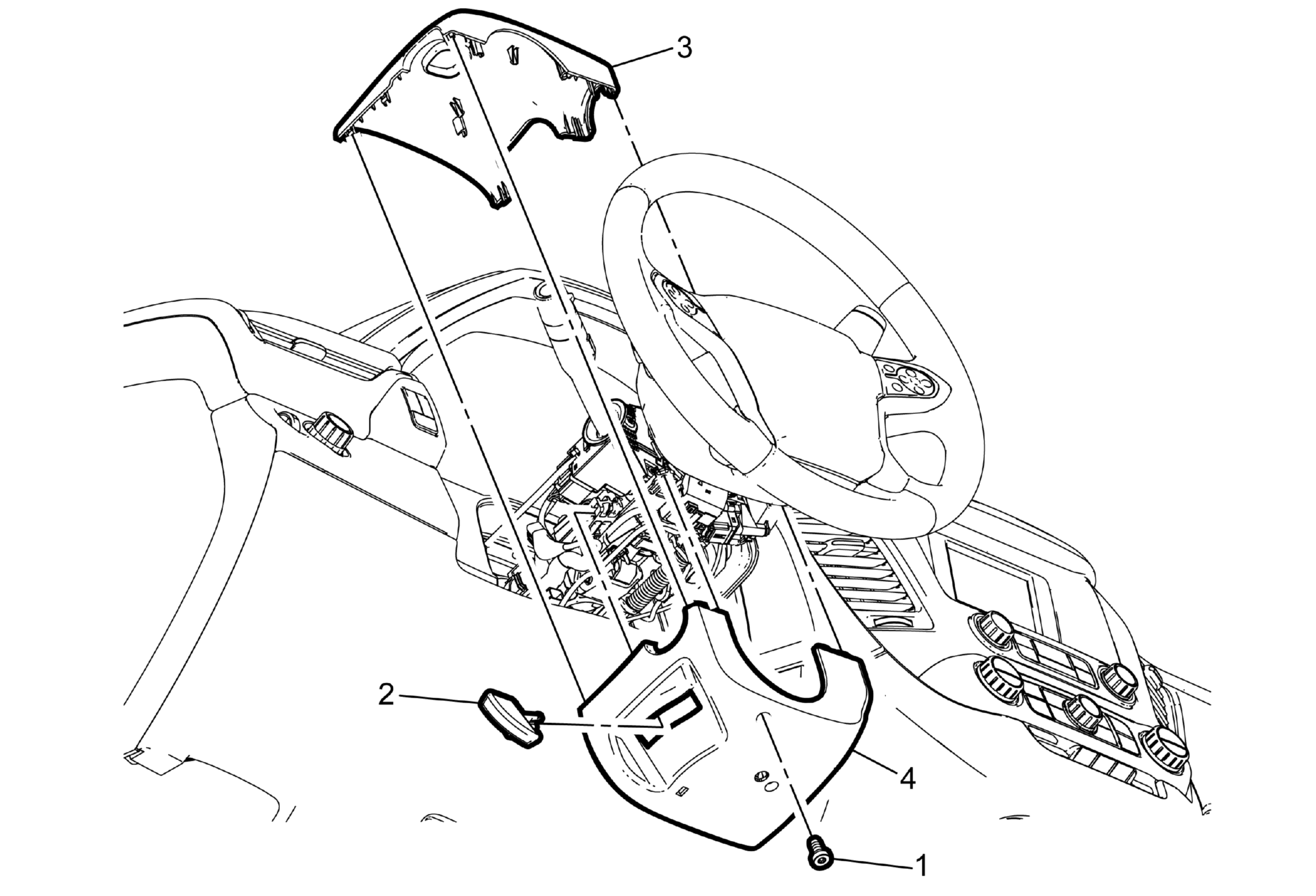

Steering Column Shroud Replacement (RPO N33)
| Callout | Component Name |
|---|---|
| 1 | Steering Column Shroud Bolt
CAUTION:
Refer to Fastener Caution
. Tighten 3 N.m (27 lb in) |
| 2 | Steering Column Tilt Wheel Release Lever Procedure Remove by pulling straight outwards. |
| 3 | Steering Column Shroud - Upper Procedure Use a flat bladed plastic trim tool in order to release the tabs securing the upper shroud cover to the lower shroud cover. |
| 4 | Steering Column Shroud - Lower |
