Instrument Panel Center Air Outlet Replacement - Right Side (Chevrolet/GMC)

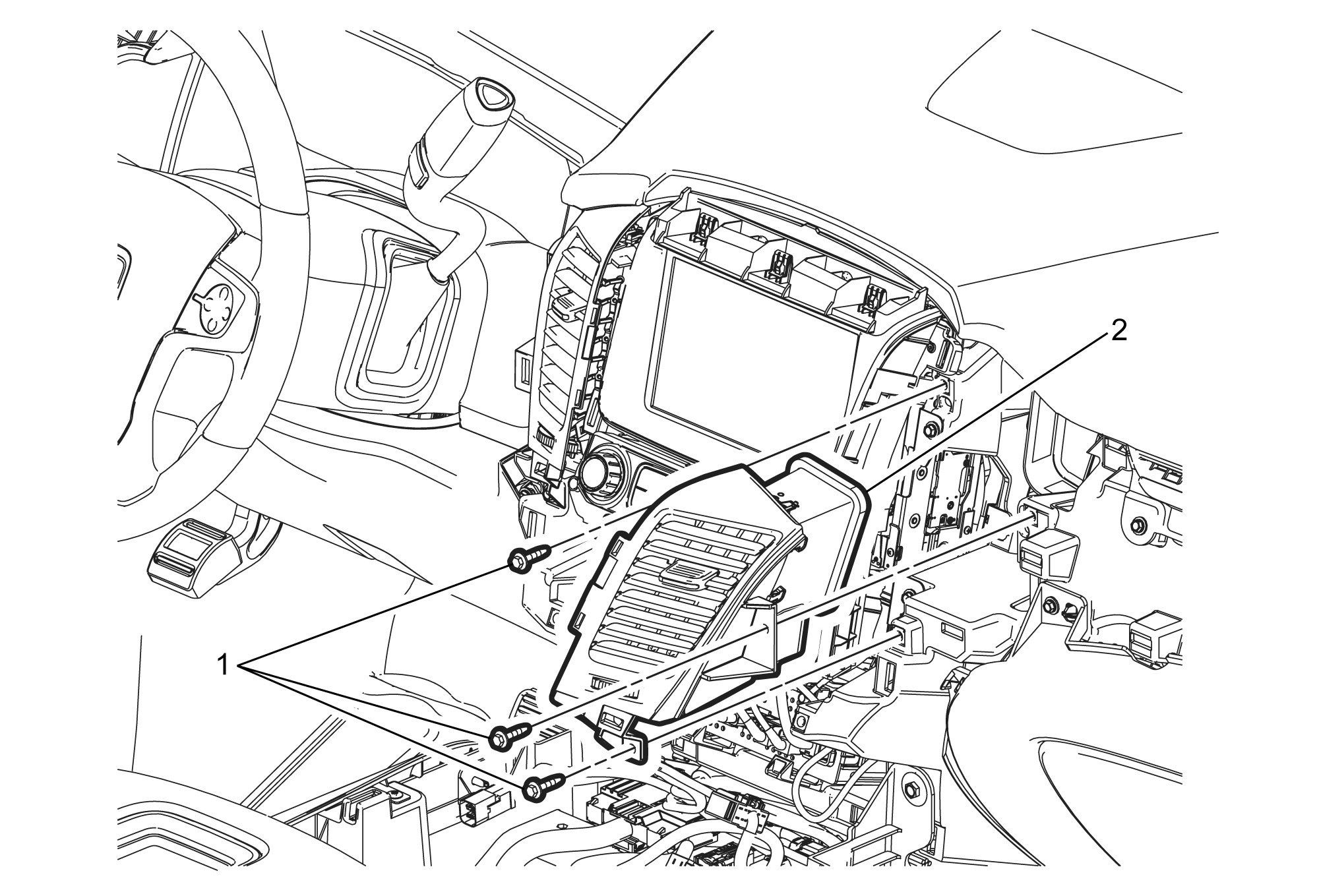

Fig 1: Instrument Panel Center Air Outlet - Right Side (Chevrolet/GMC)
GM3627005Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel accessory center trim plate. Refer to Instrument Panel Accessory Center Trim Plate Replacement (Chevrolet/GMC) .
1 Instrument Panel Center Air Outlet Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Instrument Panel Center Air Outlet
