Instrument Cluster Replacement (Chevrolet / GMC)

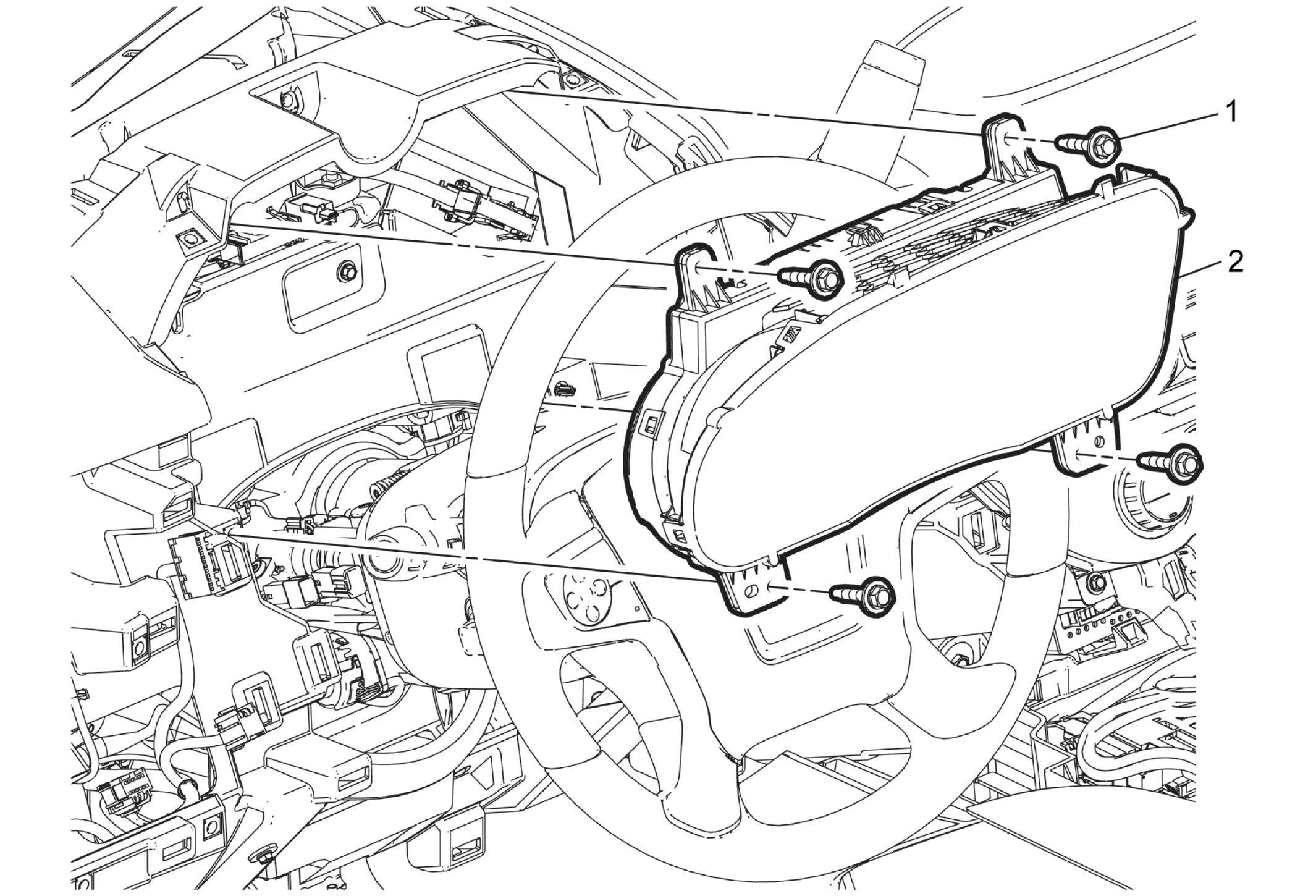

Fig 1: Instrument Cluster (Chevrolet/GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Replacement (Chevrolet / GMC) .
1	Instrument Cluster Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Cluster Assembly Procedure Disconnect the electrical connector. Refer to Control Module References for programming and set up information.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Replacement (Chevrolet / GMC) .

Instrument Cluster Fasteners (Qty: 4)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Cluster Assembly

Procedure
