Windshield Garnish Molding Replacement (Right Side)

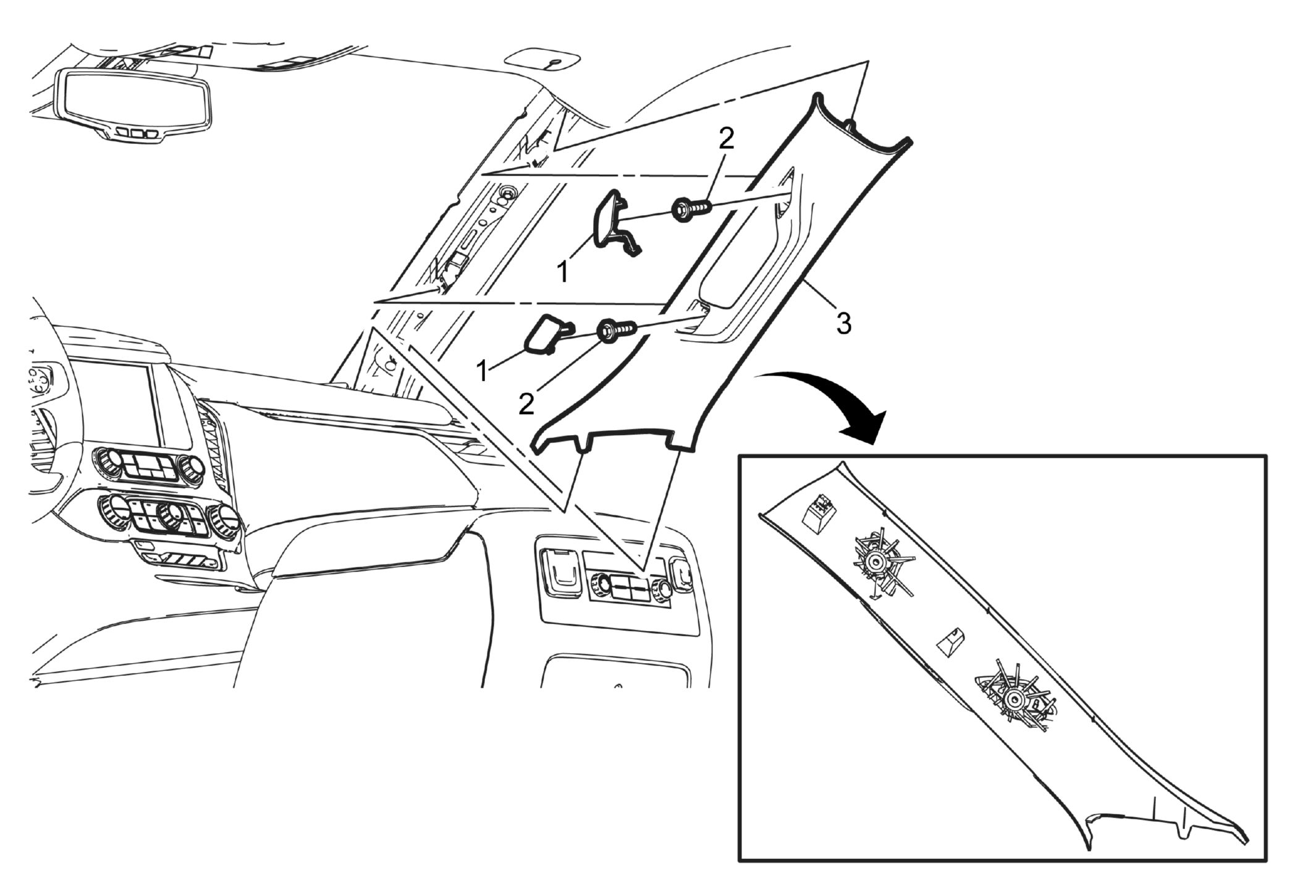

Fig 1: Windshield Garnish Molding Assembly (Right Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Disable the SIR system. Refer to SIR Disabling and Enabling .
1	Windshield Pillar Assist Handle Cover (Qty: 2)
2	Windshield Pillar Assist Handle Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
3	Windshield Garnish Molding Assembly Procedure  Ensure tab is fully seated in I/P upper trim panel prior to engaging upper retainer.
