Instrument Panel Upper Trim Cover Replacement (Chevrolet/GMC)
Instrument Panel Upper Trim Cover Replacement (Chevrolet/GMC)

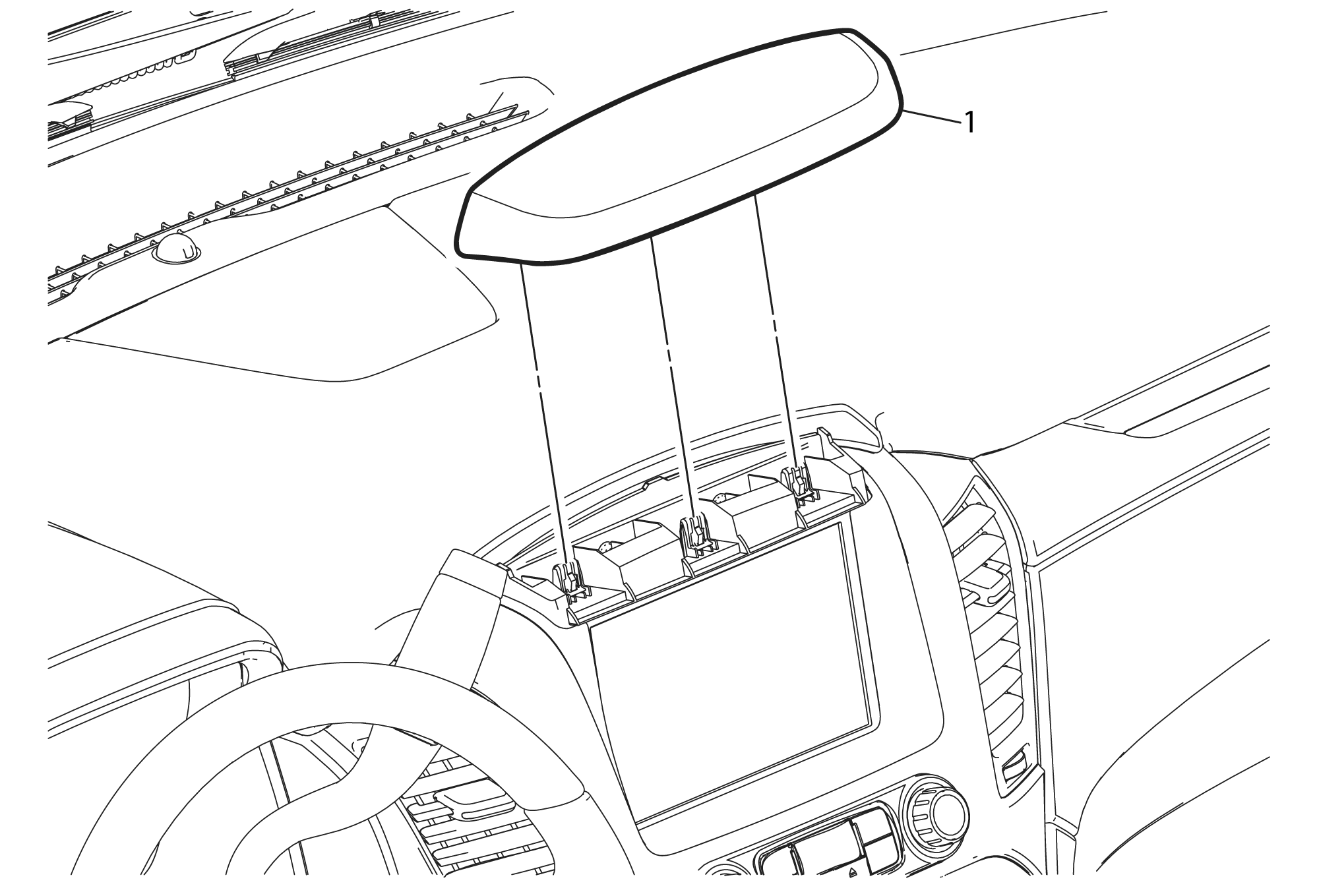

Fig 1: Instrument Panel Upper Trim Cover (Chevrolet/GMC)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Instrument Panel Upper Trim Cover
Procedure
Use a flat bladed plastic trim tool to aid in the removal of the cover from the instrument panel assembly.
