Instrument Panel Lower Trim Panel Replacement (Chevrolet/GMC)
Instrument Panel Lower Trim Panel Replacement (Chevrolet/GMC)

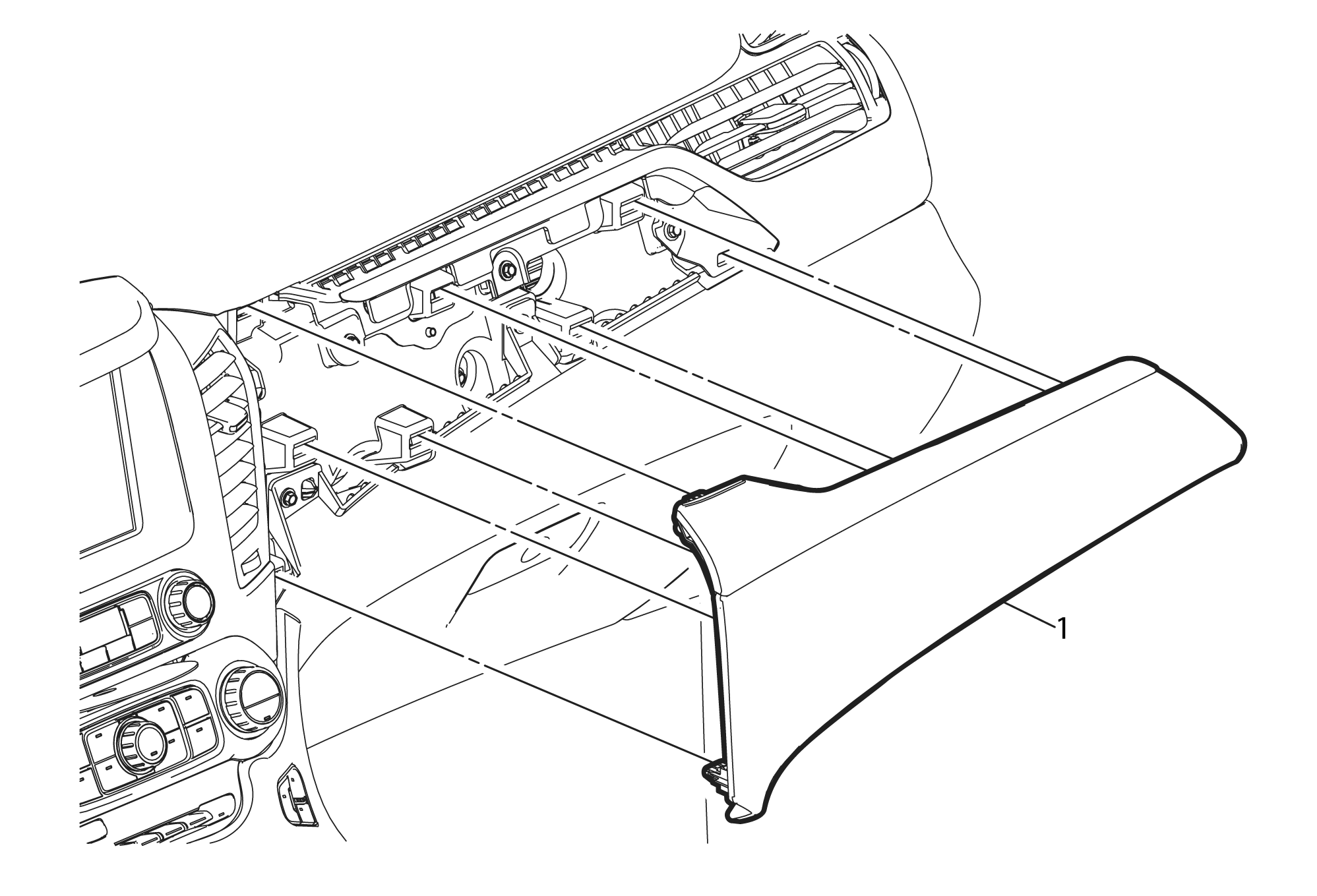

Fig 1: Instrument Panel Lower Trim Panel (Chevrolet/GMC)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Instrument Panel Lower Trim Panel
Procedure
Use a flat bladed plastic trim tool to aid in the removal of the panel from the instrument panel assembly.
