Instrument Panel Accessory Center Trim Plate Replacement (Cadillac)

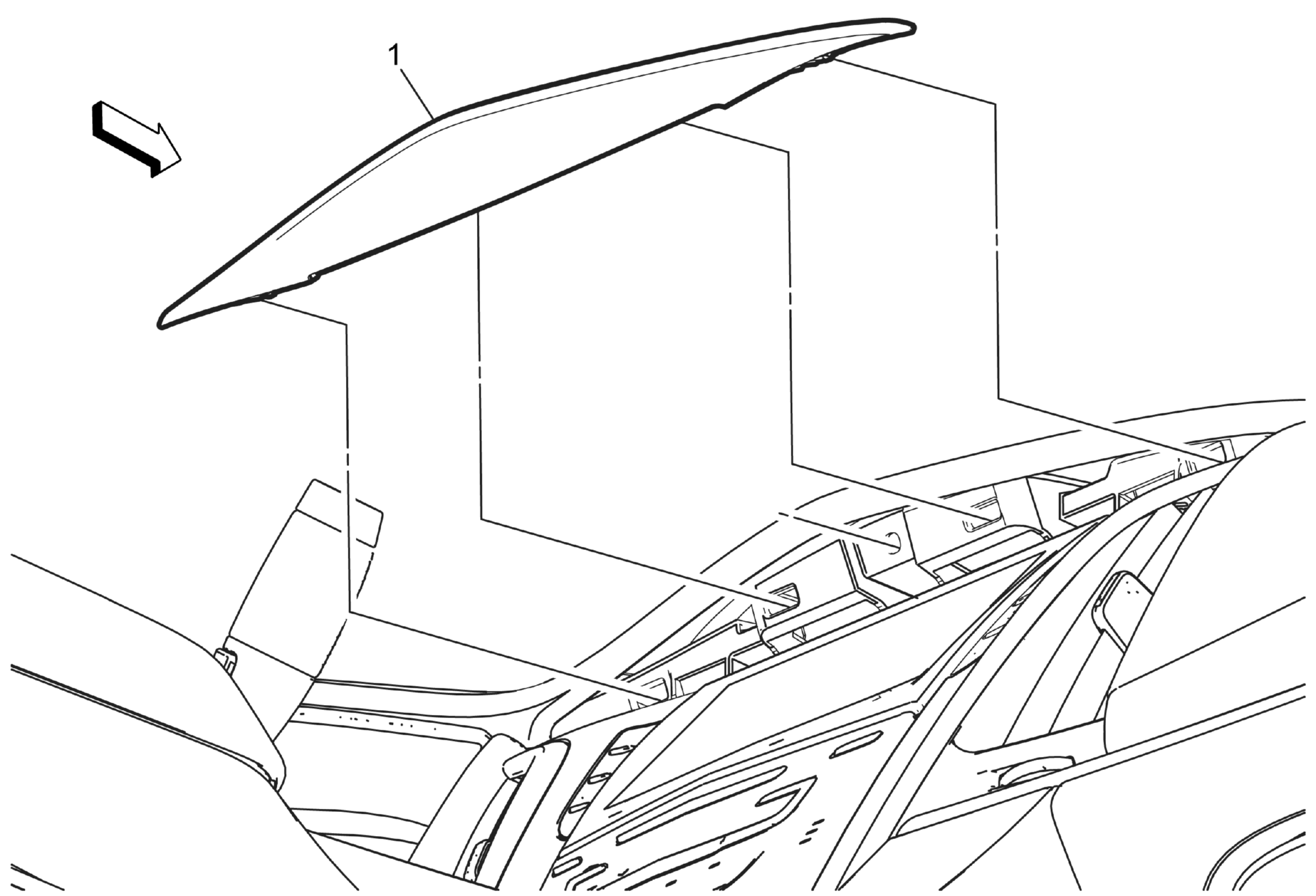

Fig 1: Instrument Panel Accessory Center Trim Plate (Cadillac)
GM3627287Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Instrument Panel Accessory Center Trim Plate

Procedure

  1. Use a flat bladed plastic trim tool.
  2. Start at the bottom edge careful not to apply the trim tool within 2" of either end.
NOTE:

Use care when removing and installing the trim plate.
