Instrument Panel Accessory Bezel Replacement (Cadillac)

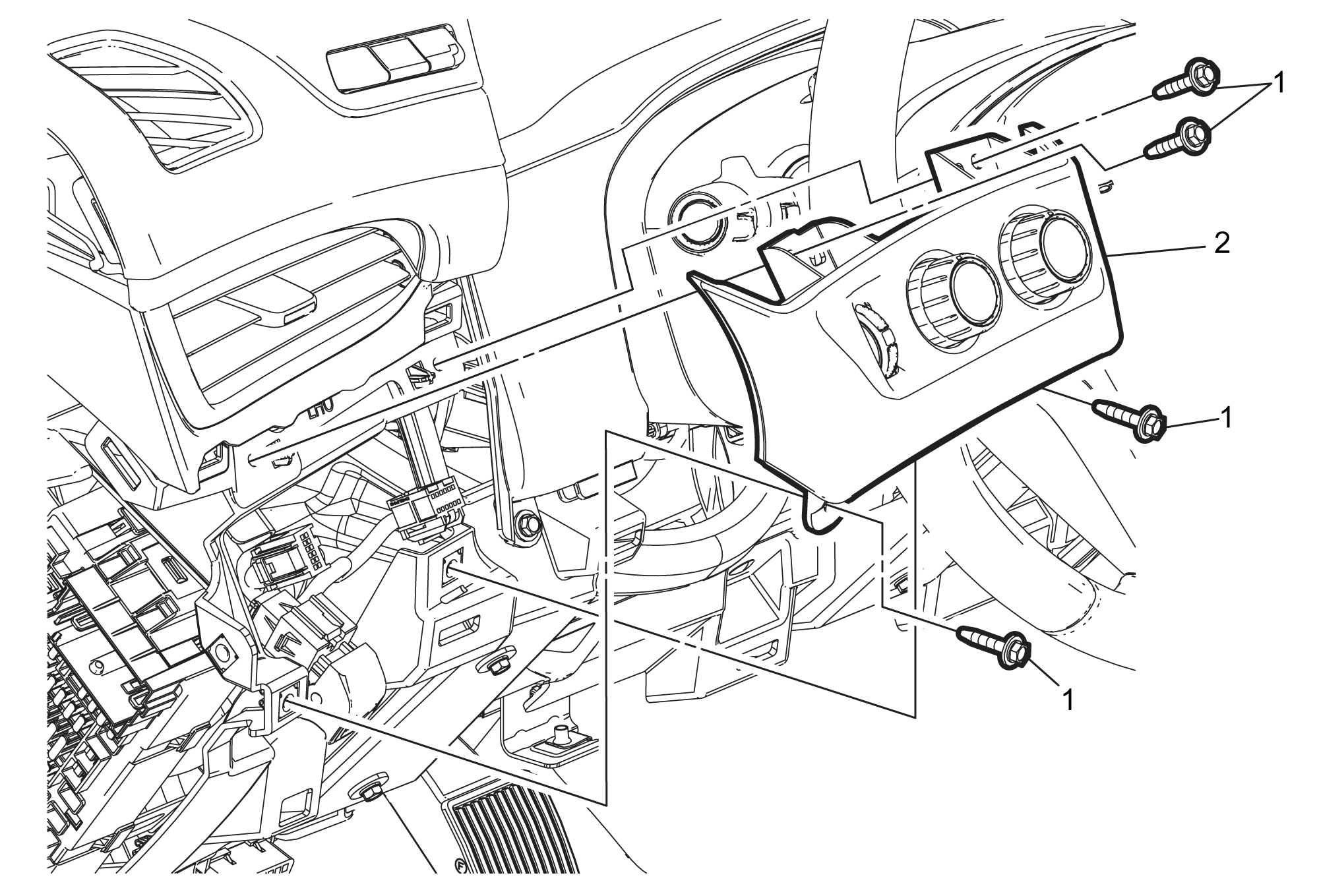

Fig 1: Instrument Panel Accessory Bezel (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Instrument Panel Knee Bolster. Refer to Instrument Panel Knee Bolster Replacement (Cadillac) . Remove Instrument Panel Trim Plate - Left Side. Refer to Instrument Panel Trim Plate Replacement - Left Side (Cadillac) .
1	Instrument Panel Accessory Bezel Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Accessory Bezel Procedure Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Instrument Panel Accessory Bezel Bolt (Qty: 4)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Accessory Bezel

Procedure
