Front Floor Console Front Compartment Cover Replacement

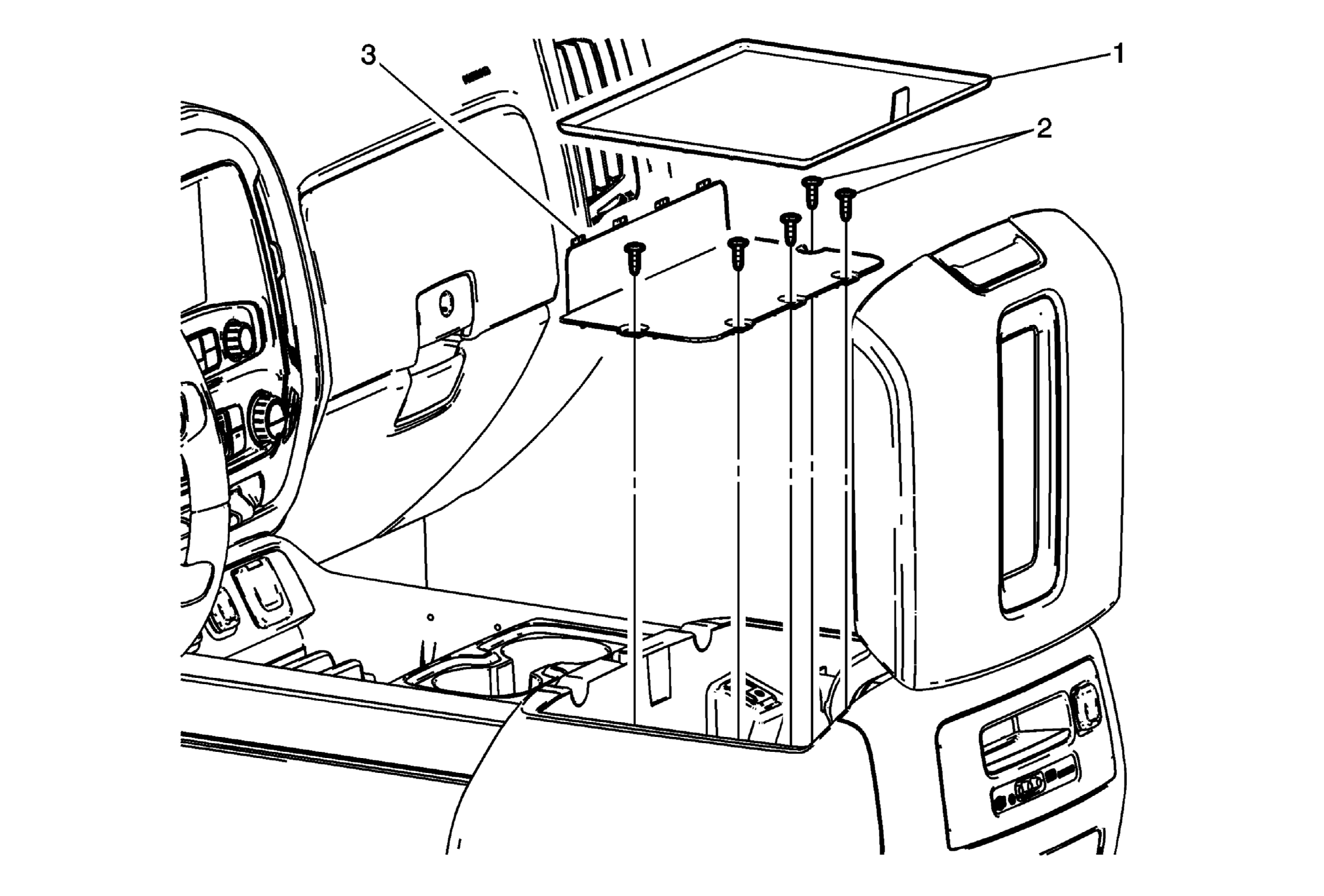

Fig 1: Front Floor Console Front Compartment Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Floor Console Compartment Liner
2	Front Floor Console Front Compartment Cover Bolt (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
3	Front Floor Console Front Compartment Cover Procedure  Lift the cover from the rearward side to clear the tabs.
