Front Floor Console Center Compartment Replacement (Chevrolet/GMC)

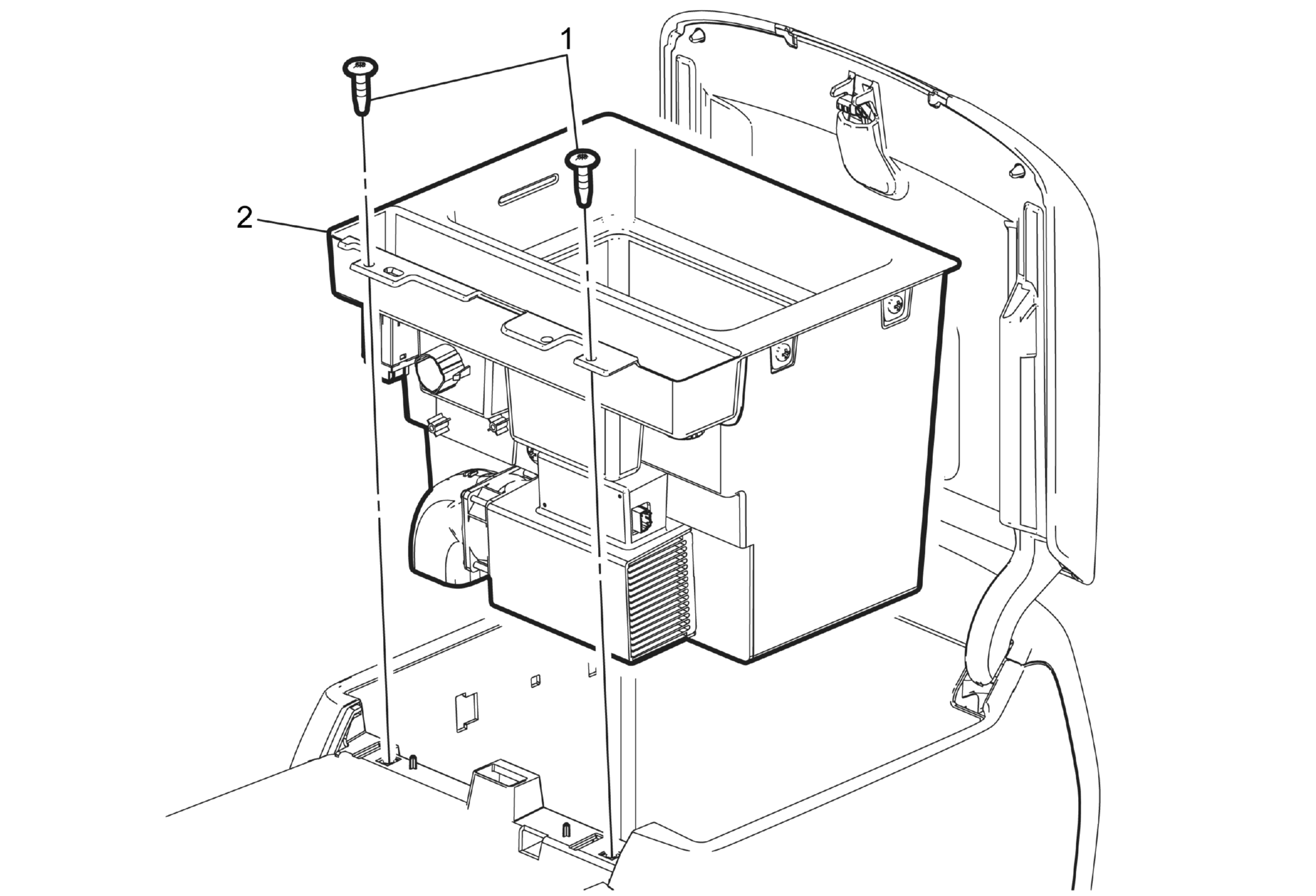

Fig 1: Front Floor Console Center Compartment (Chevrolet/GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement (Chevrolet/GMC) .
1	Front Floor Console Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Floor Console Center Compartment Procedures Disconnect all electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement (Chevrolet/GMC) .

Front Floor Console Bolt (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Floor Console Center Compartment

Procedures
