Hood Primary Latch Release Cable Replacement

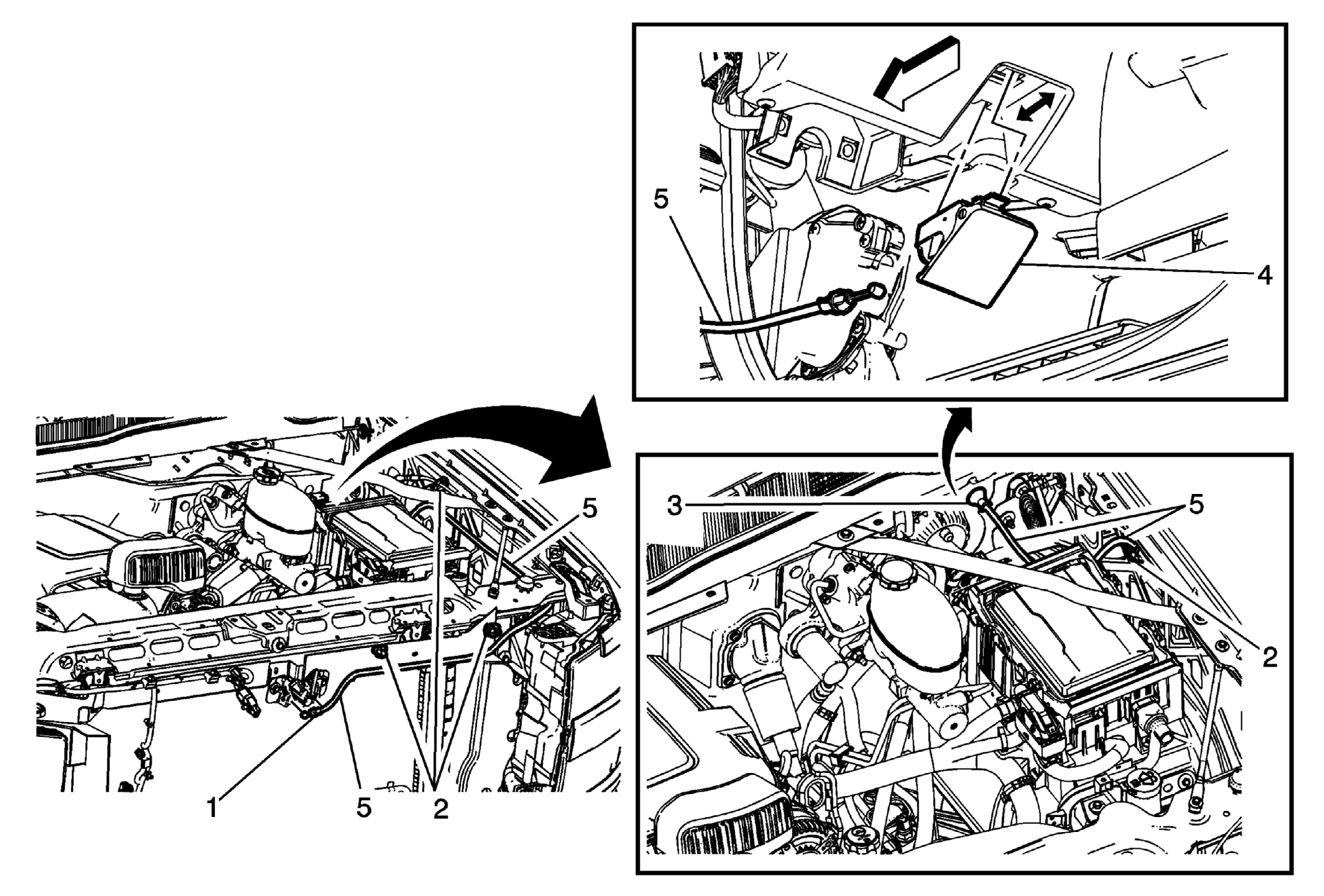

Fig 1: Hood Primary Latch Release Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement (GMC) Front Compartment Front Sight Shield Replacement (Chevrolet) Front Compartment Front Sight Shield Replacement (Cadillac) .
1	Hood Primary Latch Cable Procedure Disconnect the hood primary latch release cable from the primary hood latch.
2	Hood Primary Latch Release Cable Retainer (Qty: 2) Procedure Disconnect the hood release cable retainers from the hood release cable.
3	Hood Primary Latch Release Cable Grommet
4	Hood Primary Latch Release Cable Handle Procedure Disconnect the hood primary latch release cable handle from the hood latch cable.
5	Hood Primary Latch Release Cable Procedure Attach mechanics wire to the cable and pull the cable out. Attach mechanics wire to the new cable and guide in.
