Section 2 (Automatic Transmission - JATCO CVT)
>>
Schematic Wiring Diagrams
>>
Automatic Transmission Controls Wiring Schematics
>>

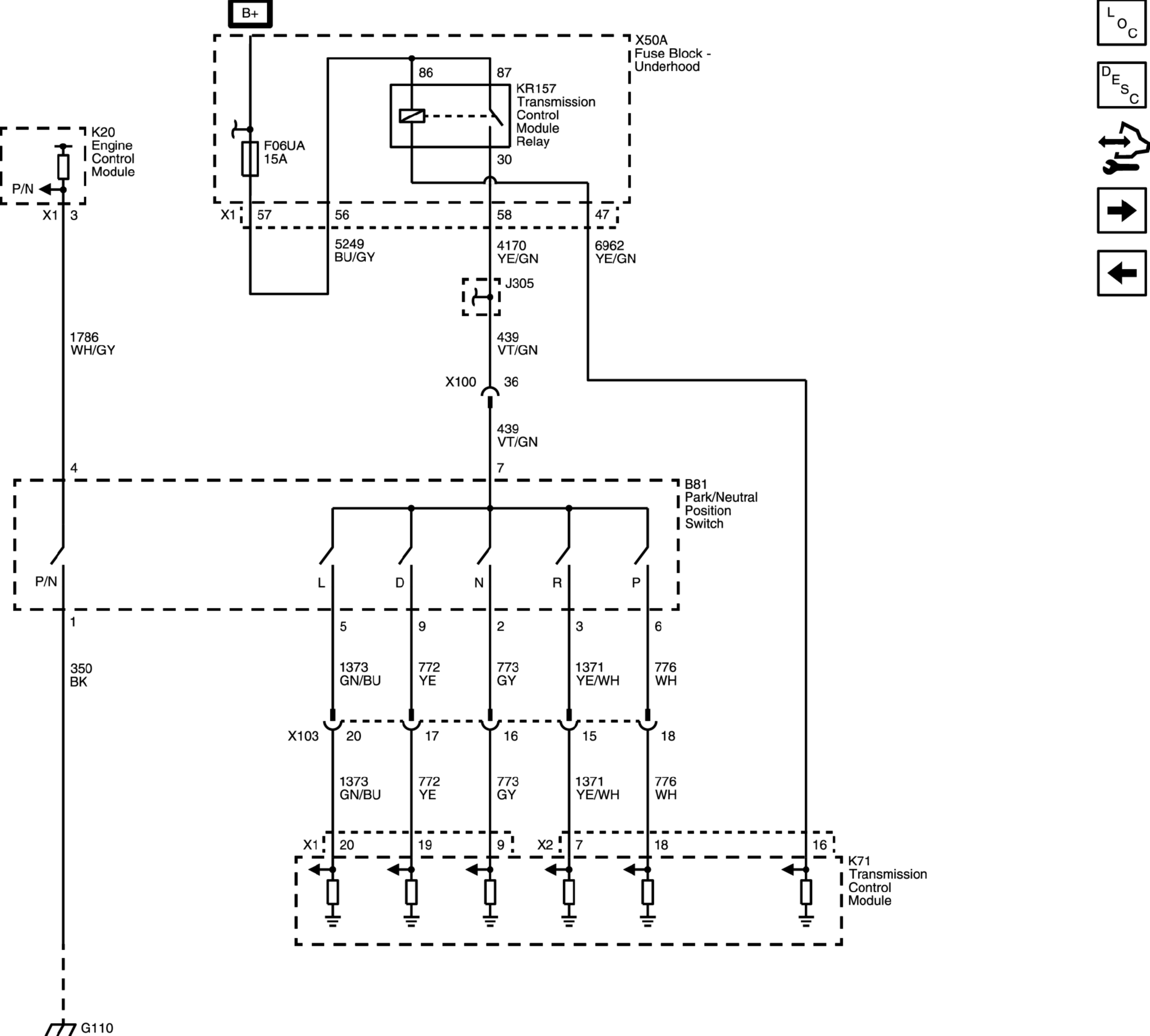

Transmission Shift Lever (MR8)
Transmission Shift Lever (MR8)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
