Vehicle Speed Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

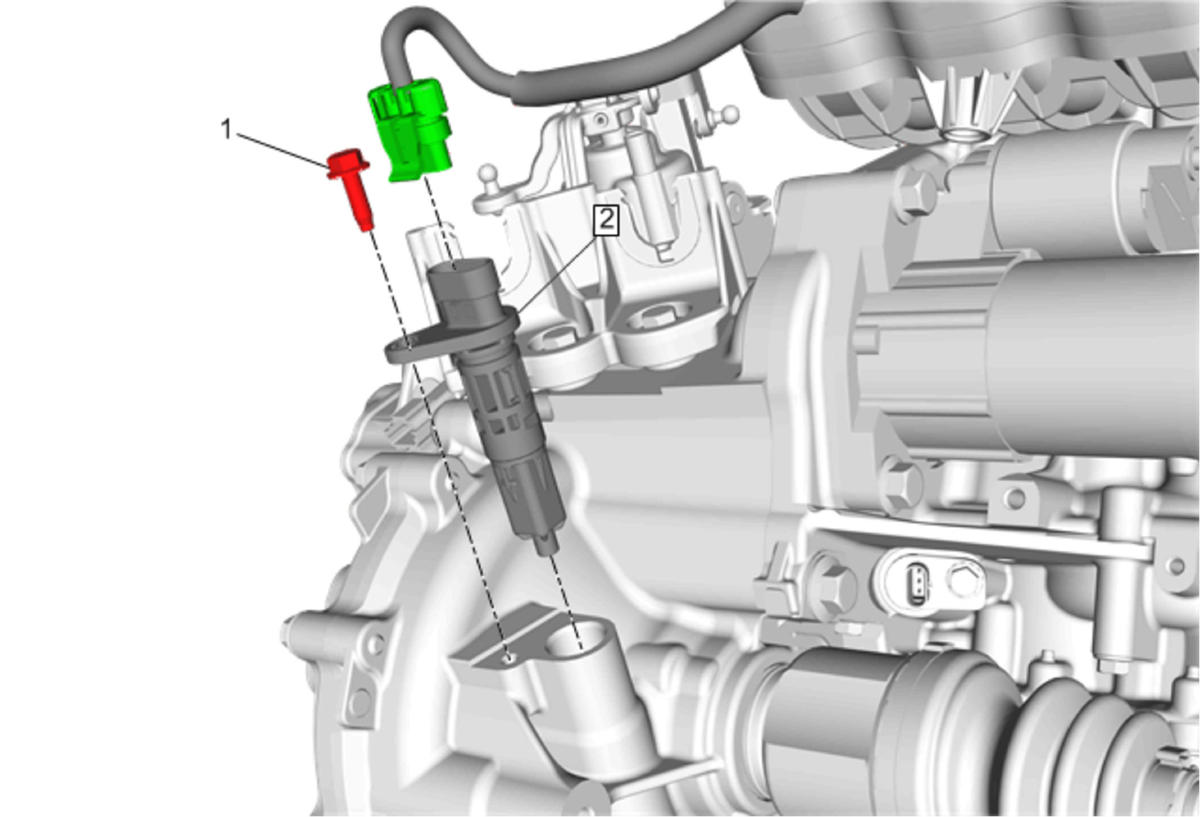

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Vehicle Speed Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Vehicle Speed Sensor Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Vehicle Speed Sensor Bolt

CAUTION:

Tighten
9 N.m (80 lb in)

Vehicle Speed Sensor
Procedure
Disconnect the electrical connector.
