Transmission Rear Mount Replacement: Notes
WARNING: This page is about a different variant/trim than selected.
- Raise and support the vehicle. Refer to Vehicle Lifting and Jacking Caution .
- Using a suitable jack stand, support the rear of the powertrain.

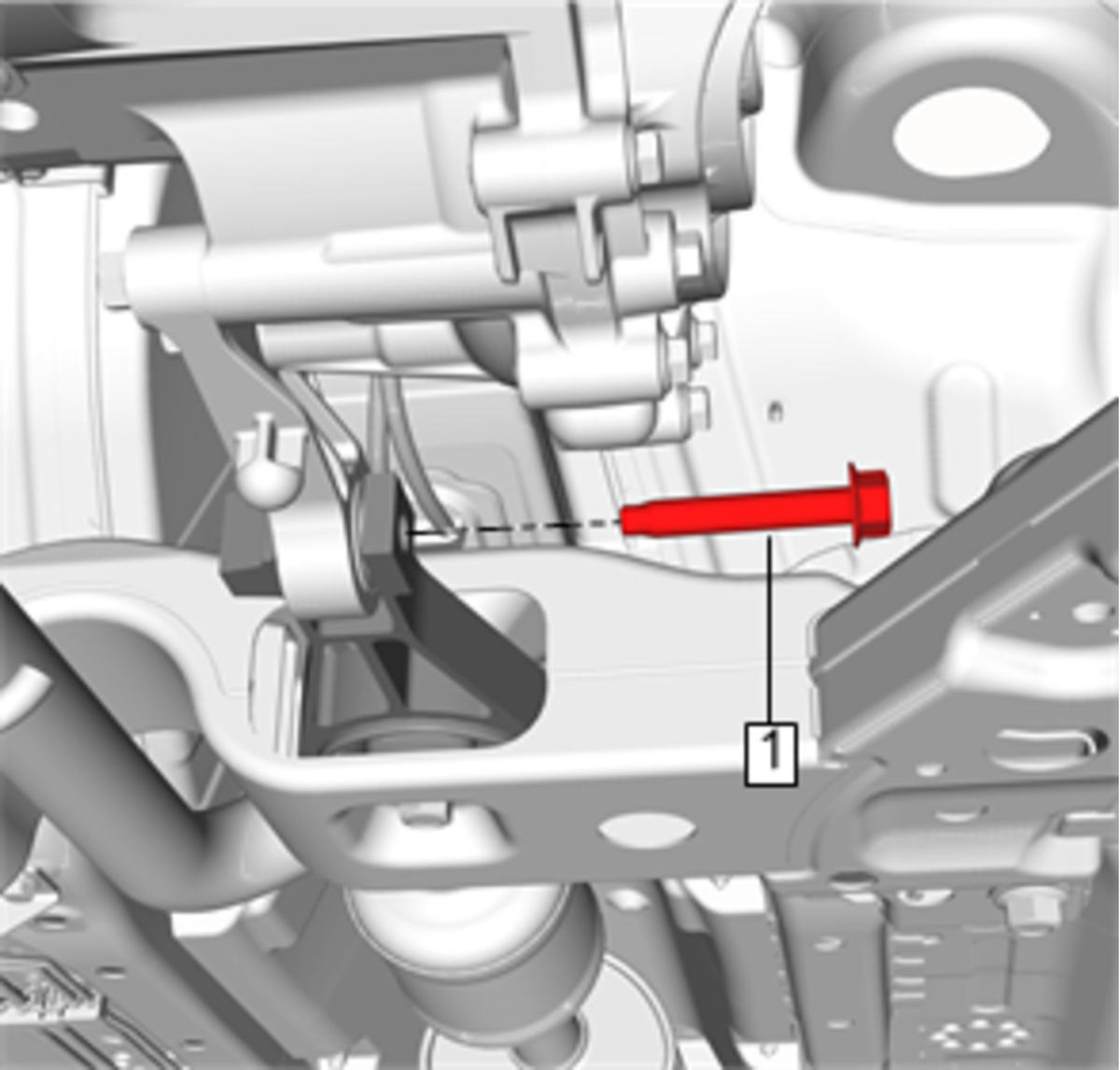

Remove and DISCARD the transmission mount strut front bolt (1).

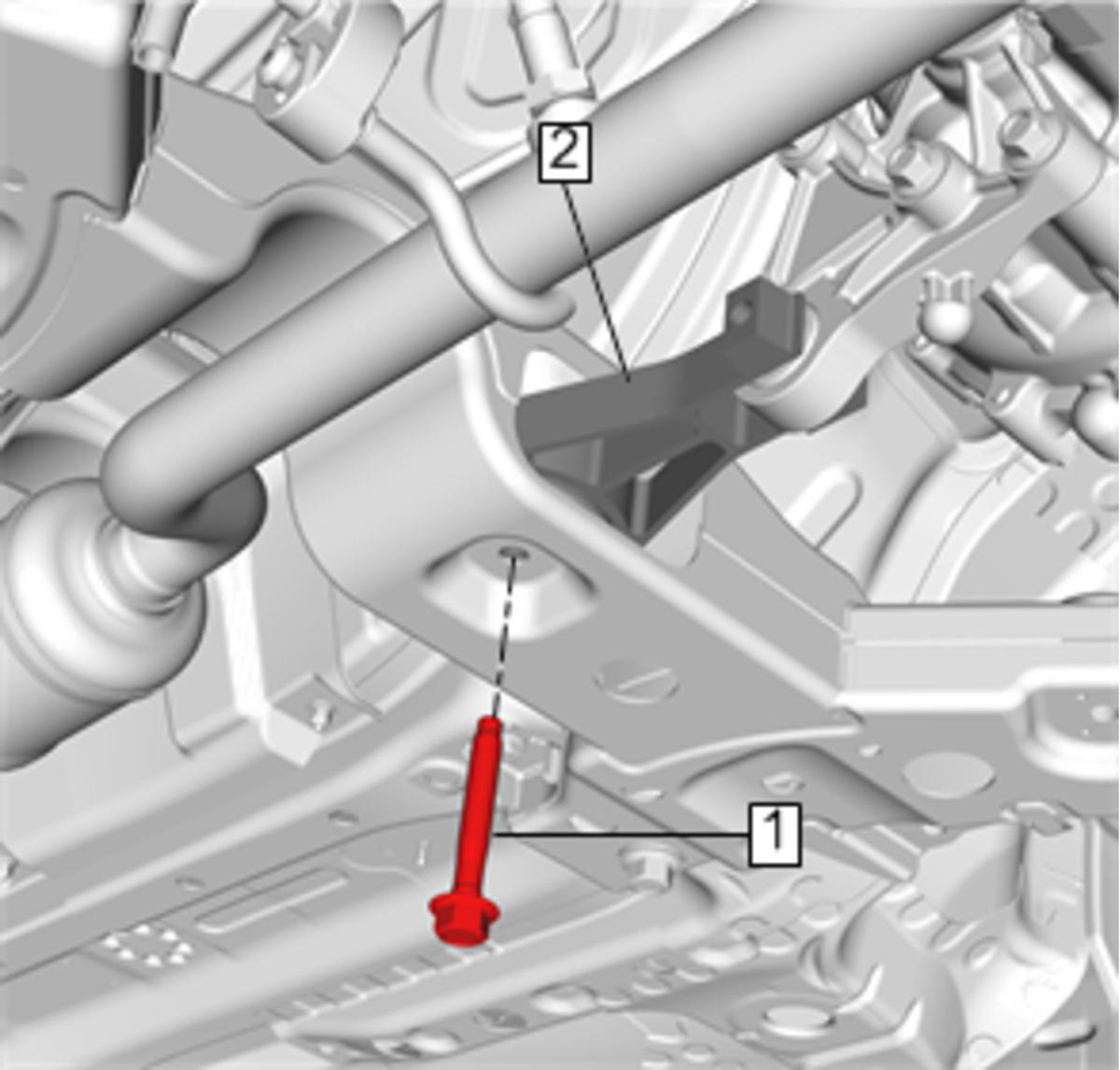

Remove and DISCARD the transmission mount strut rear bolt (1).
- Remove the transmission mount strut (2) from the cradle.
