Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to Vehicle Lifting and Jacking Caution .
  2. Using a suitable jack stand, support the rear of the powertrain.
  3. GM4043949Courtesy of GENERAL MOTORS COMPANY

    Remove and DISCARD the transmission mount strut front bolt (1).

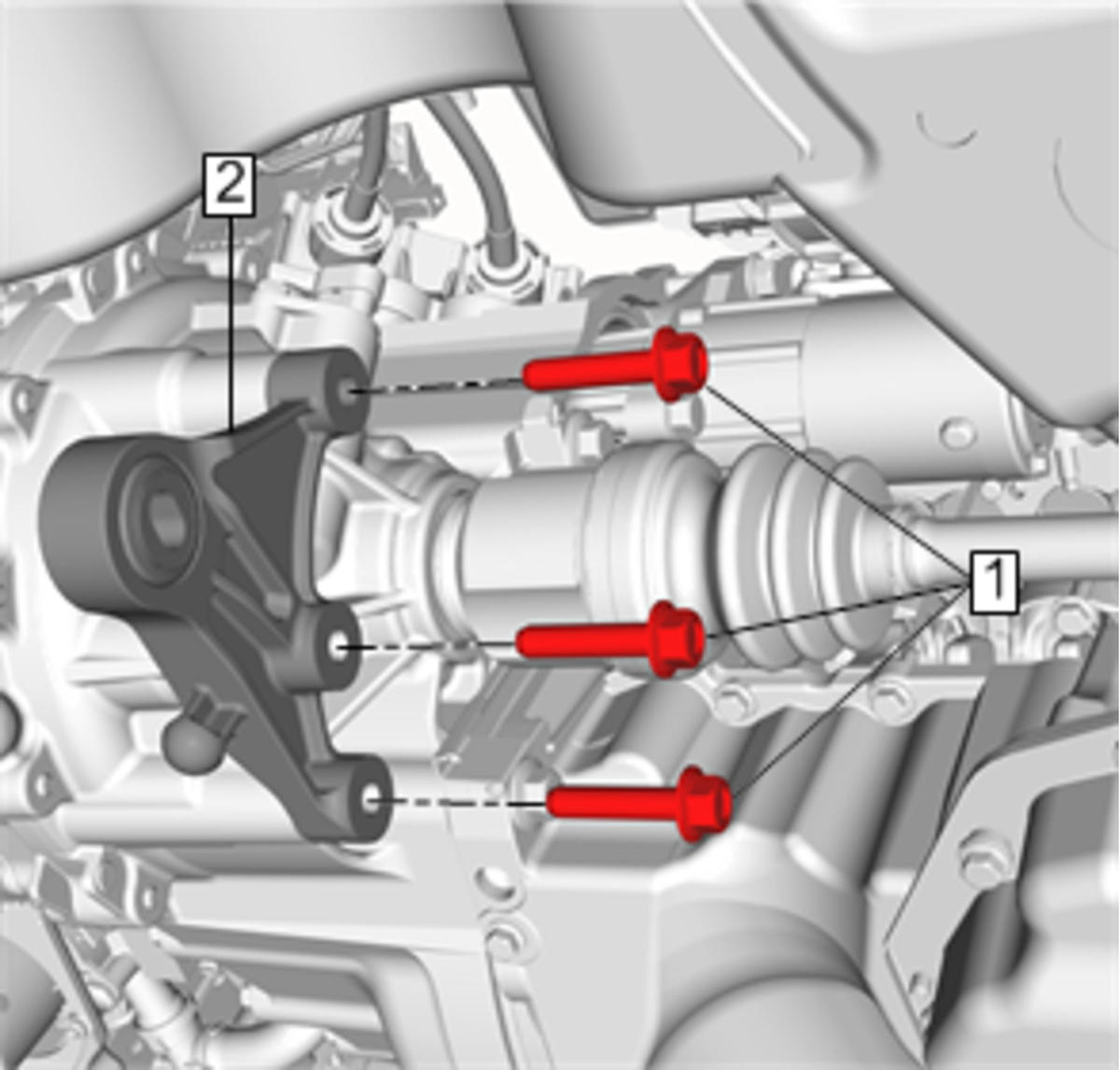

  4. GM4043950Courtesy of GENERAL MOTORS COMPANY

    Remove and DISCARD the transmission mount strut bracket bolts (1).

  5. Remove the transmission mount strut bracket (2) from the transmission.
