Installation Procedure

WARNING: This page is about a different variant/trim than selected.

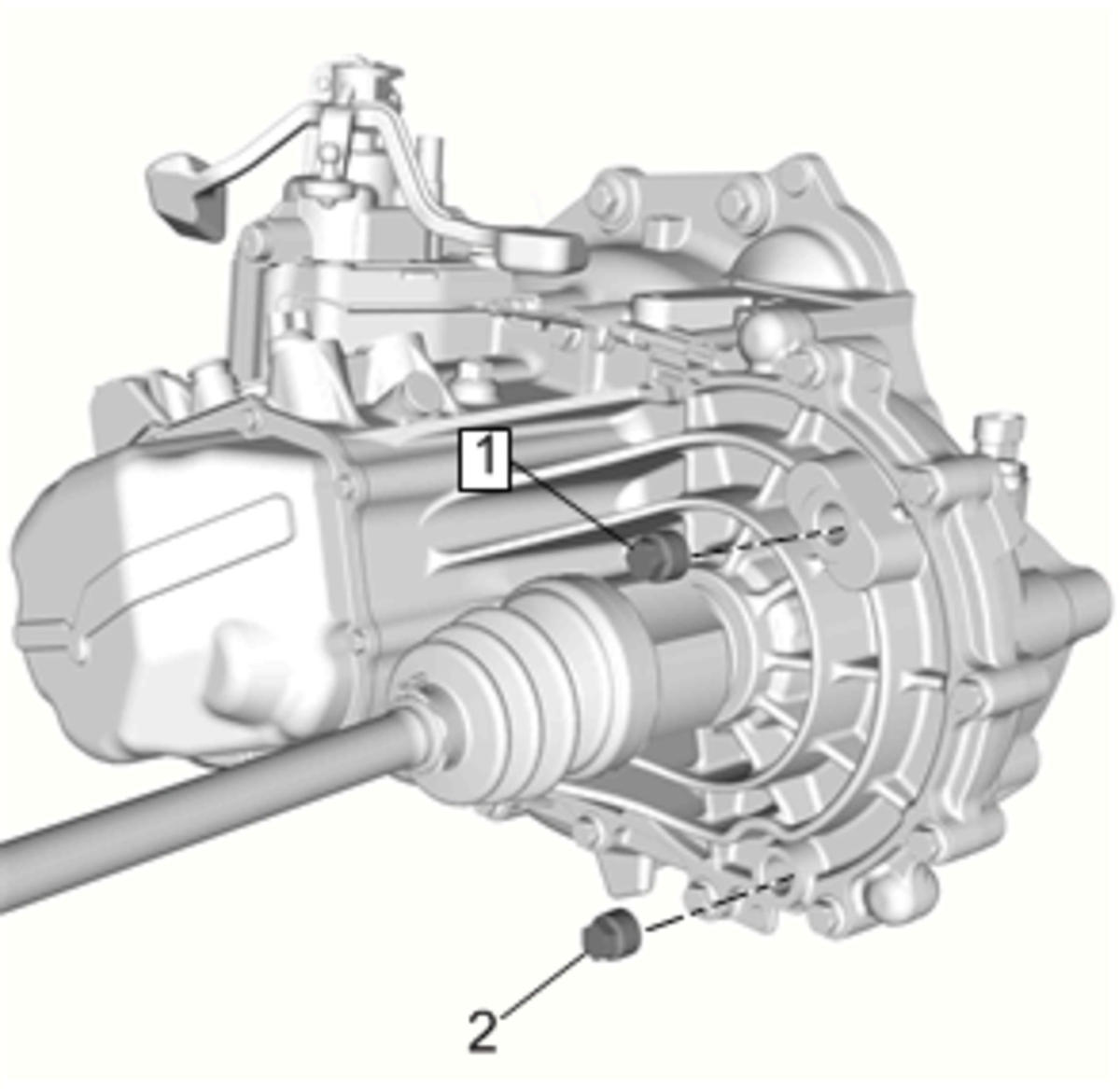

  1. GM4039173Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the NEW transmission case oil drain plug (2) and tighten to 25 N.m (18 lb ft).

  2. Add transmission fluid until it seeps out of the fluid level check plug hole.
  3. Install the NEW transmission case oil level check plug (1) and tighten to 25 N.m (18 lb ft).
  4. Lower the vehicle.
