Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front floor console. Refer to Front Floor Console Replacement .

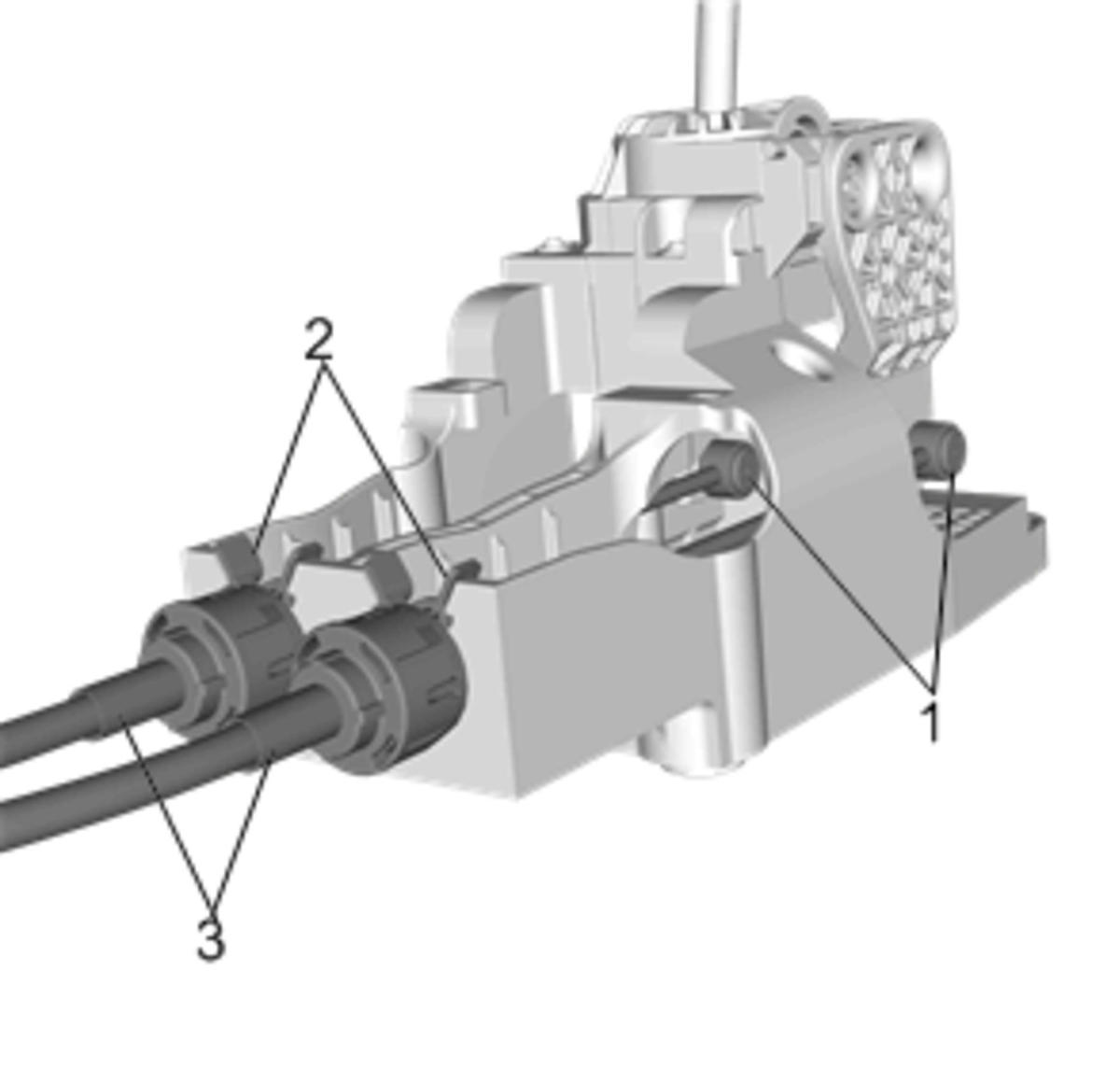

  2. GM4039061Courtesy of GENERAL MOTORS COMPANY

    Disconnect the shift lever and selector lever cable (1) from the transmission control lever.

  3. Release the cable retainers (2) and remove the shift lever and selector lever cable (3) from the transmission control housing.
  4. GM4039146Courtesy of GENERAL MOTORS COMPANY

    Remove the transmission control bolts (1) and nuts (2).

  5. Remove the transmission control (3) from the vehicle.
