Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Remove the battery tray. Refer to Battery Tray Replacement (without Engine Block Heater)Battery Tray Replacement (with Engine Block Heater) .
Without draining the coolant or removing the hoses, remove and position aside the radiator surge tank. Refer to Radiator Surge Tank Replacement .
Remove the shift lever and selector lever cable from shift control housing. Refer to Manual Transmission Shift Lever and Selector Lever Cable Replacement .
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Certainly remove the shift interlock bolt. Otherwise, shift control housing assembly cannot be removed.

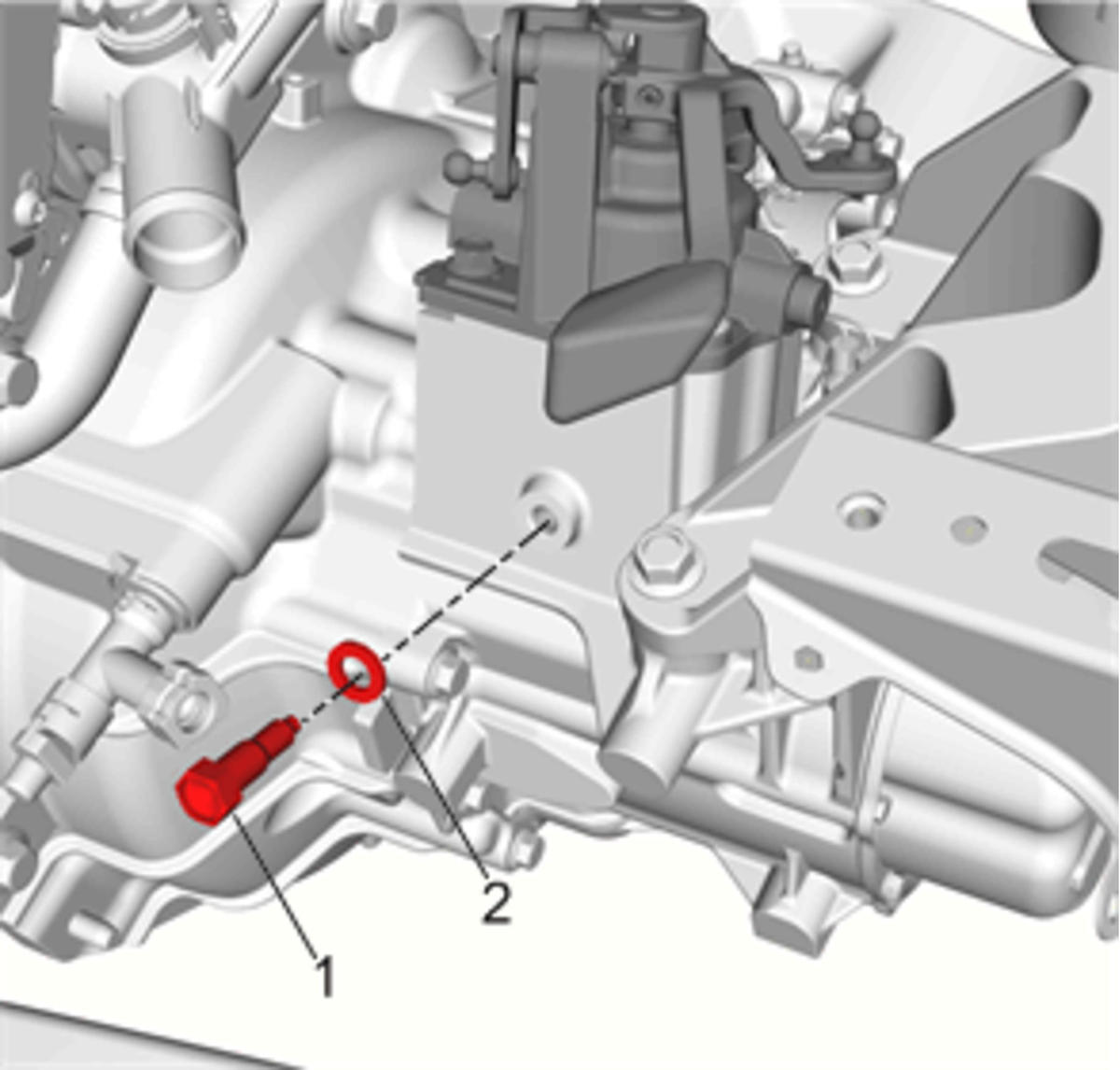

Remove the shift interlock washer (2) and bolt (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Shift the transmission into NEUTRAL.

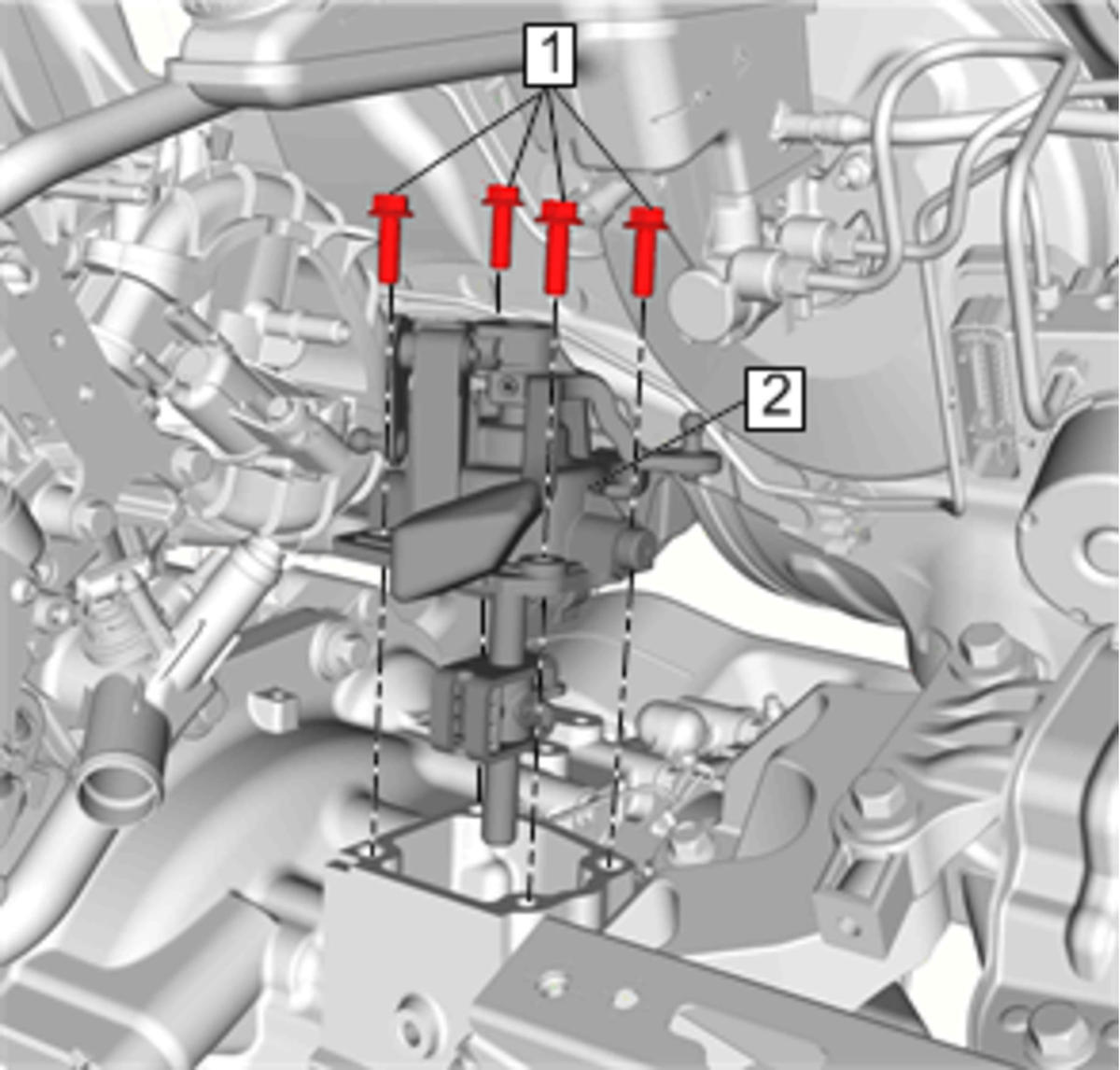

Remove the 4 shift control housing bolts (1).
Remove the shift control housing assembly (2) from the transmission.
Remove the sealant on the shift control housing and the transmission case.
