Installation Procedure
WARNING: This page is about a different variant/trim than selected.
- Position the shift lever and the selector lever cable assembly in the vehicle.
- Gently pull the shift lever and the selector lever cable assembly through the cowl into the engine compartment.
- CAUTION:
Refer to Fastener Caution .

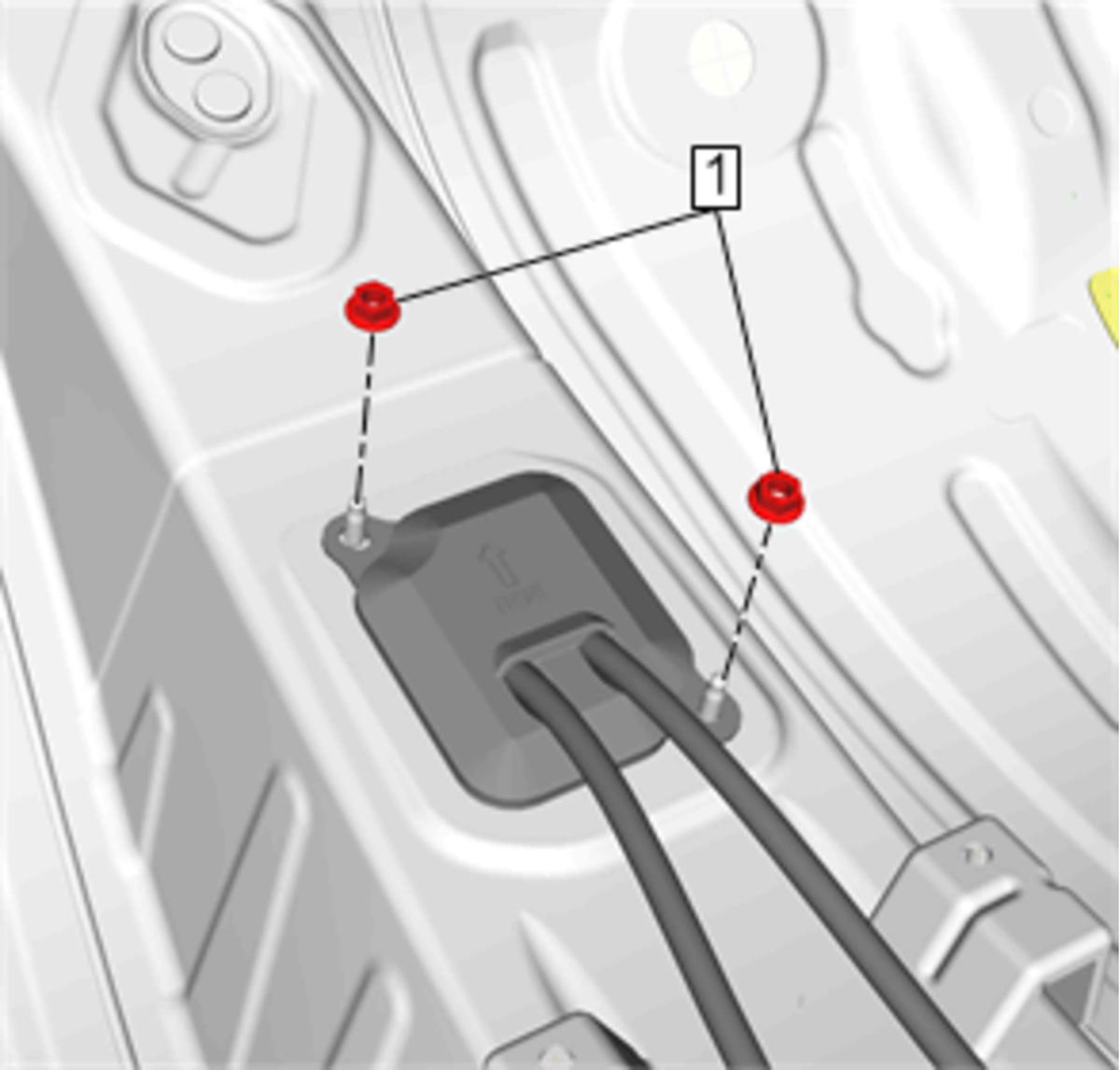

Install the shift lever and selector lever cable grommet nut (1), and tighten to 6 N.m (53 lb in).
-

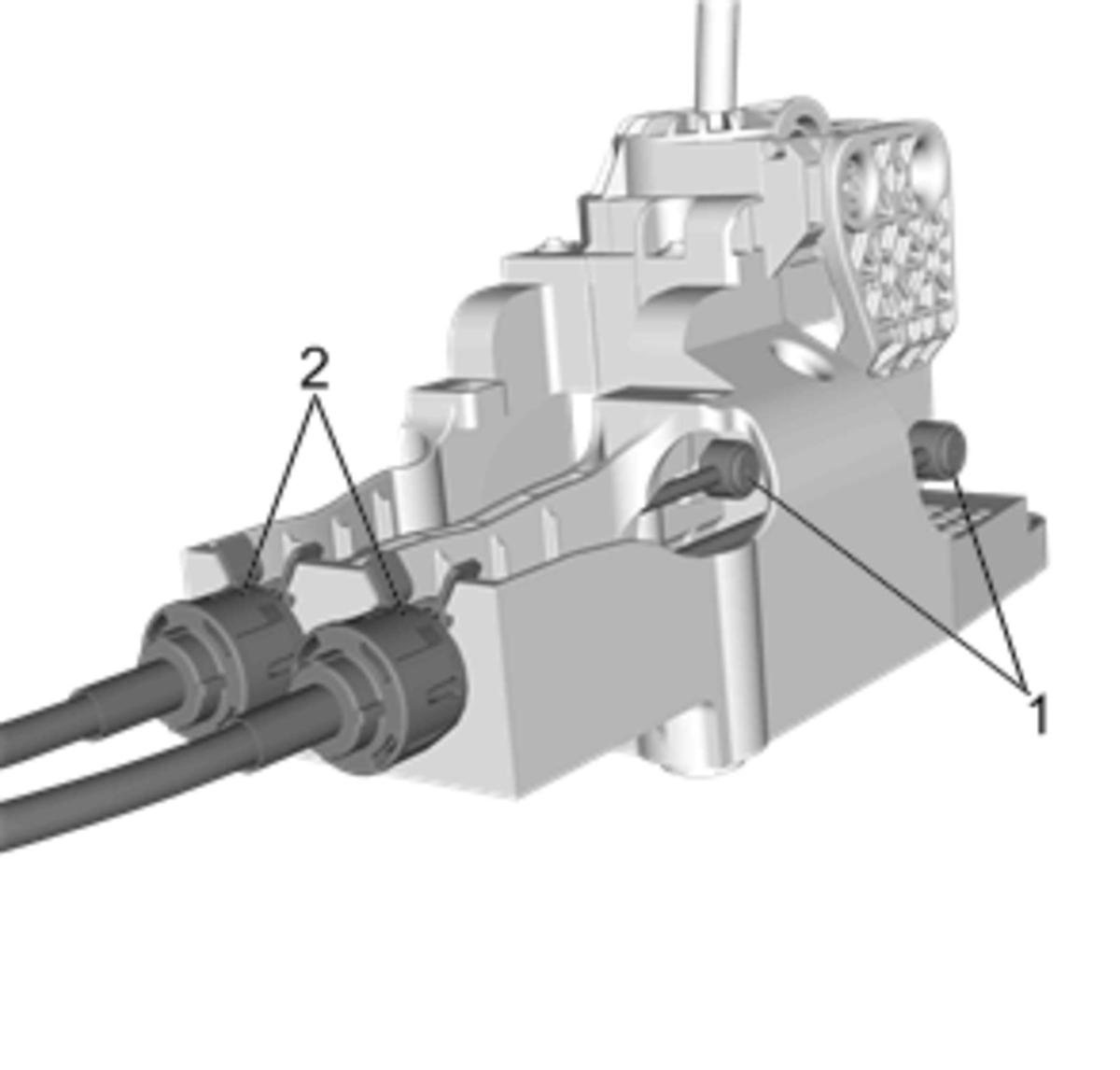

Fig 1: Shift Lever And Selector Lever Cable, Shift Control Housing And Selector And Shift Lever Cable Bracket
Courtesy of GENERAL MOTORS COMPANY
NOTE:After install, lift up the cable socket by hand to confirm if they are fully installed.
Install the shift lever and selector lever cable (2) to the selector and shift lever cable bracket (4).
- Install the shift lever and selector lever cable (1) to the shift control housing (3).
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

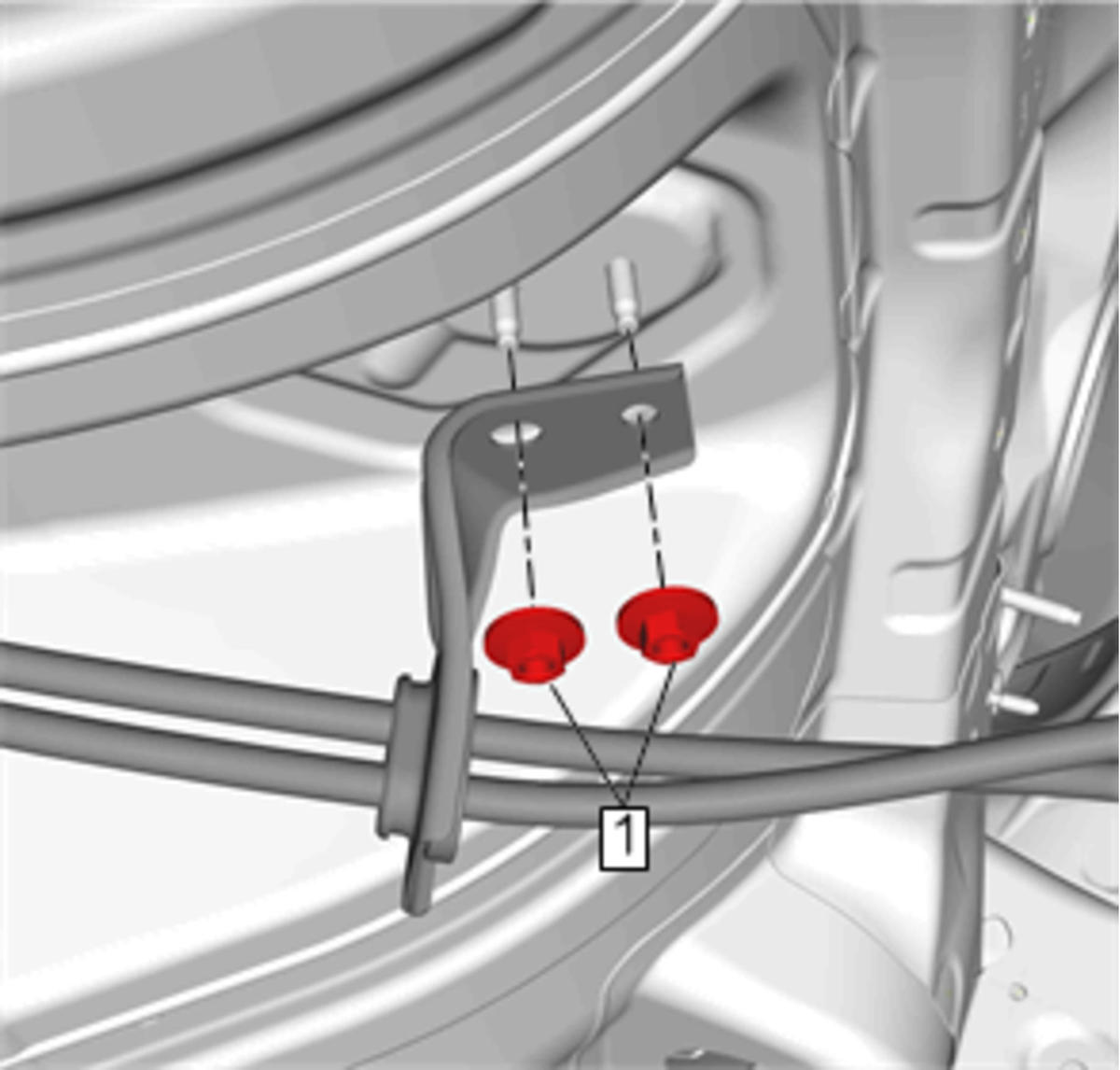

Install the shift lever and selector lever cable bracket nuts (1) to the underbody and tighten to 6 N.m (53 lb in).
- Lower the vehicle.
- NOTE:
After install, lift up the cable socket by hand to confirm if they are fully installed.

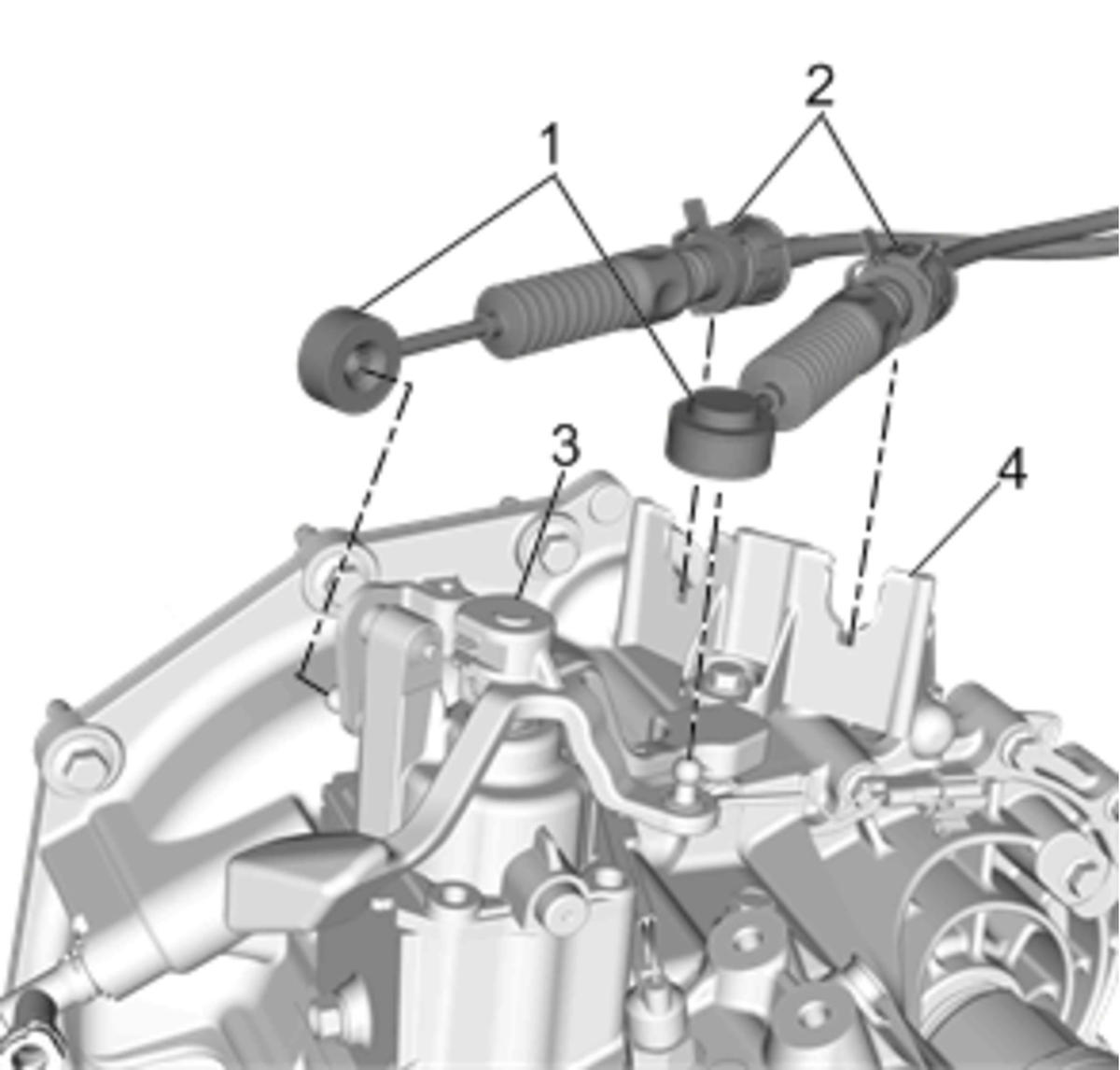

Install the shift lever and selector lever cable (2) to the transmission control housing.
- Connect the shift lever and selector lever cable (1) to the transmission control lever.
- Install the front floor console. Refer to Front Floor Console Replacement .
- Install the battery tray. Refer to Battery Tray Replacement (without Engine Block Heater)Battery Tray Replacement (with Engine Block Heater) .
NOTE:
After install, lift up the cable end by hand to confirm if they are fully installed
