Front Wheel Drive Shaft Seal Replacement - Right Side

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front wheel drive shaft from the transmission. Refer to Front Wheel Drive Shaft Replacement .

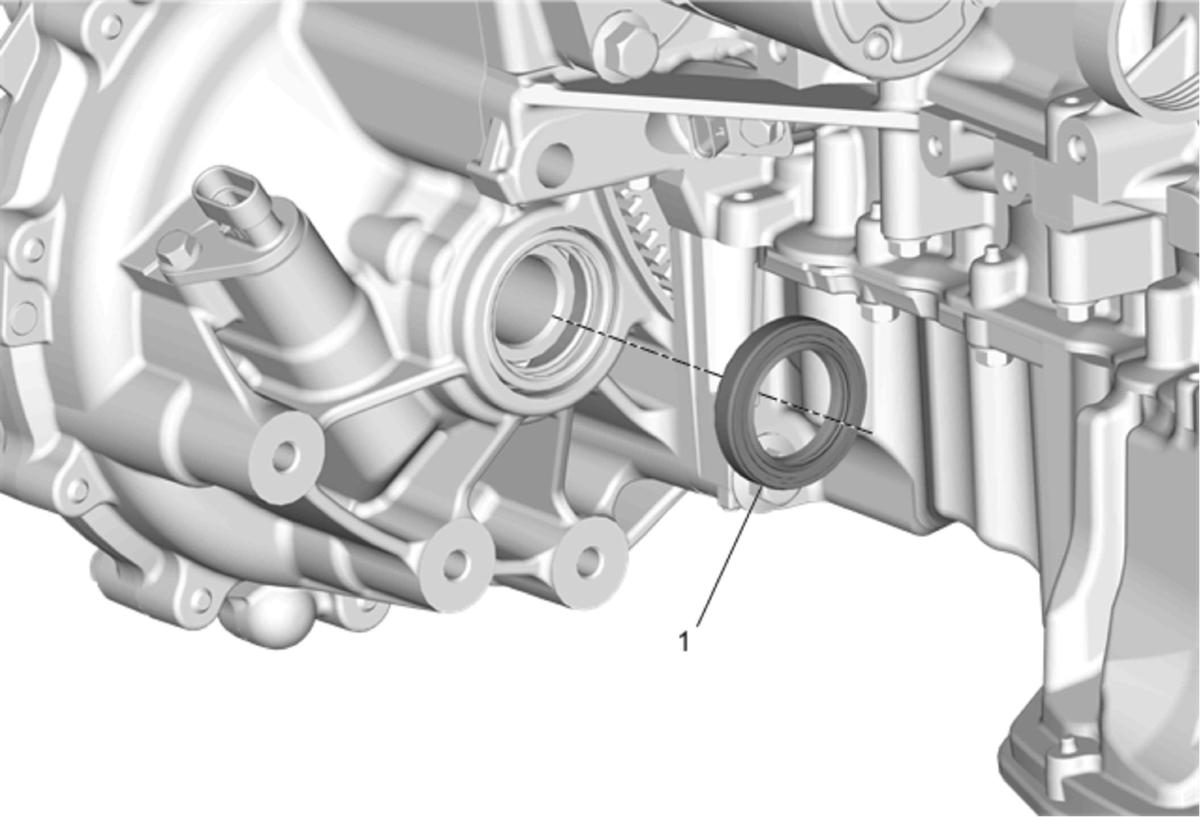

1	Right Front Wheel Drive Shaft Oil Seal Procedure For seal removal, use DT-7004 slide hammer with DT-586 seal remover. For seal installation, use DT-51777 seal installer. NOTE: Do not reuse the front wheel drive shaft oil seal. Special Tools DT-586 Universal Seal Remover DT-7004 Slide Hammer DT-51777 Oil Seal Installer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the front wheel drive shaft from the transmission. Refer to Front Wheel Drive Shaft Replacement .

Right Front Wheel Drive Shaft Oil Seal

Procedure

NOTE:

Do not reuse the front wheel drive shaft oil seal.

Special Tools

For equivalent regional tools, refer to Special Tools .
