Backup Lamp Switch Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the battery tray. Refer to Battery Tray Replacement (without Engine Block Heater)Battery Tray Replacement (with Engine Block Heater) .

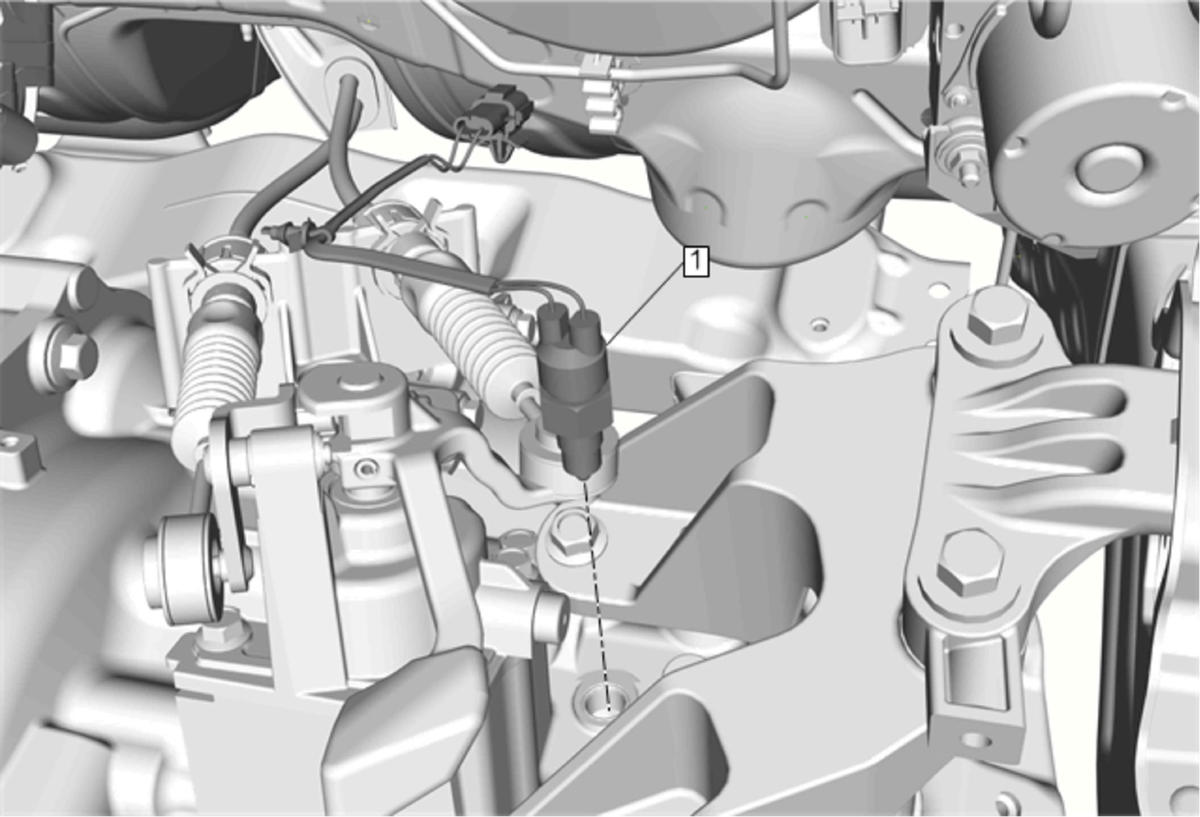

1	Backup Lamp Switch CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the electrical connector. Unclip the backup lamp switch wiring harness retainers from the transmission and engine start wiring harness bracket. Tighten 17 N.m (13 lb ft) Special Tools DT-50182 Backup Lamp Switch Remover/Installer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Backup Lamp Switch

CAUTION:

Procedure

Disconnect the electrical connector.
Unclip the backup lamp switch wiring harness retainers from the transmission and engine start wiring harness bracket.

Tighten
17 N.m (13 lb ft)
Special Tools
DT-50182 Backup Lamp Switch Remover/Installer
For equivalent regional tools, refer to Special Tools .
