3rd-4th Gear Shift Shaft Assembly

WARNING: This page is about a different variant/trim than selected.

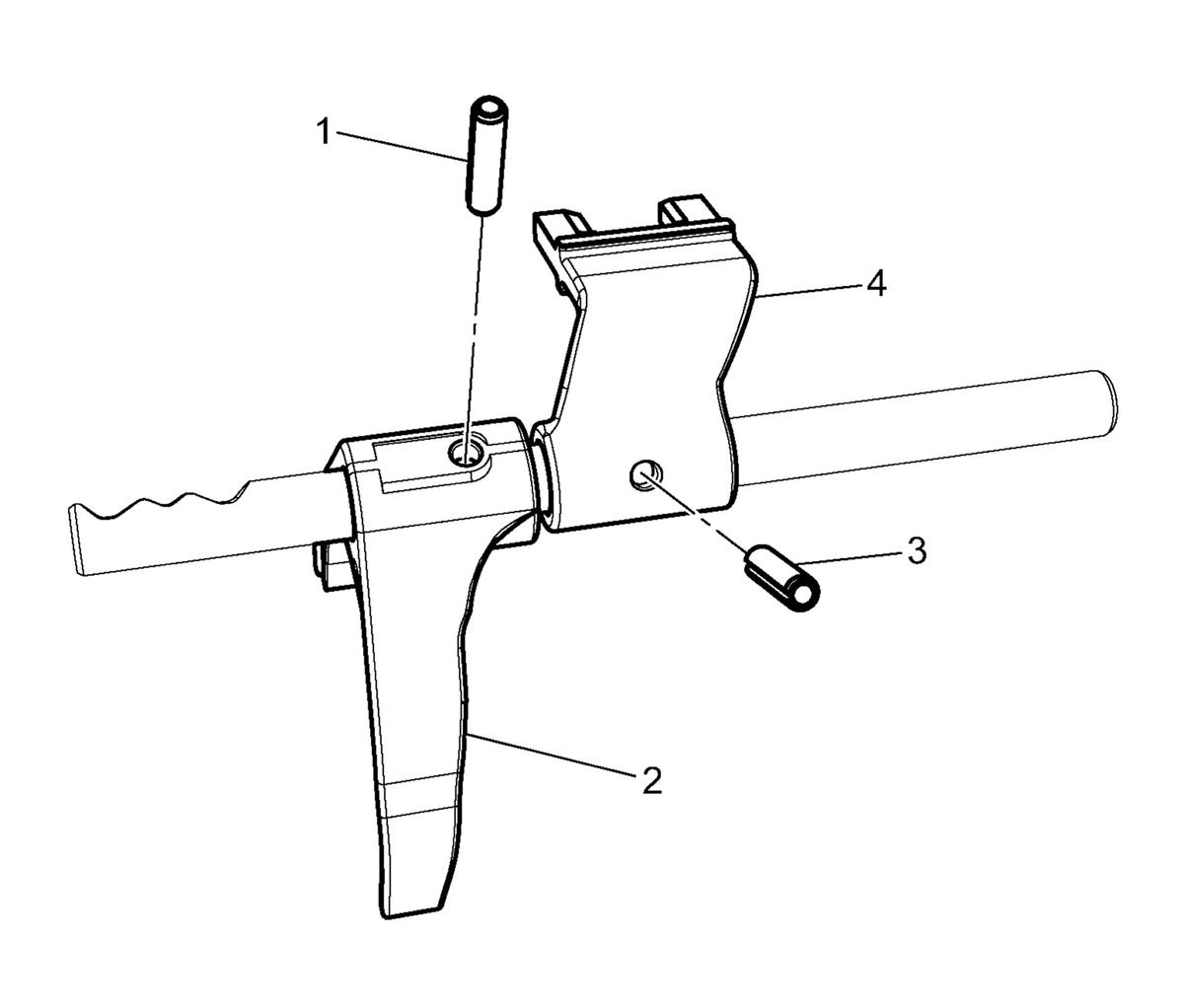

  1. GM3970971Courtesy of GENERAL MOTORS COMPANY

    Place the shift shaft into a vise with a protector.

  2. Install the 3rd-4th gear shift yoke (4).
  3. Install the new 3rd-4th gear shift yoke pin (3) using a pin punch and a hammer.
  4. Install the 3rd-4th gear shift fork (2).
  5. Install the new 3rd-4th gear shift fork pin (1) using a pin punch and a hammer.
  6. Install the 3rd-4th gear shift shaft assembly into the gear unit.
  7. Install the gear unit. Refer to Transmission Assemble .
