1st-2nd Gear Shift Shaft Assembly

WARNING: This page is about a different variant/trim than selected.

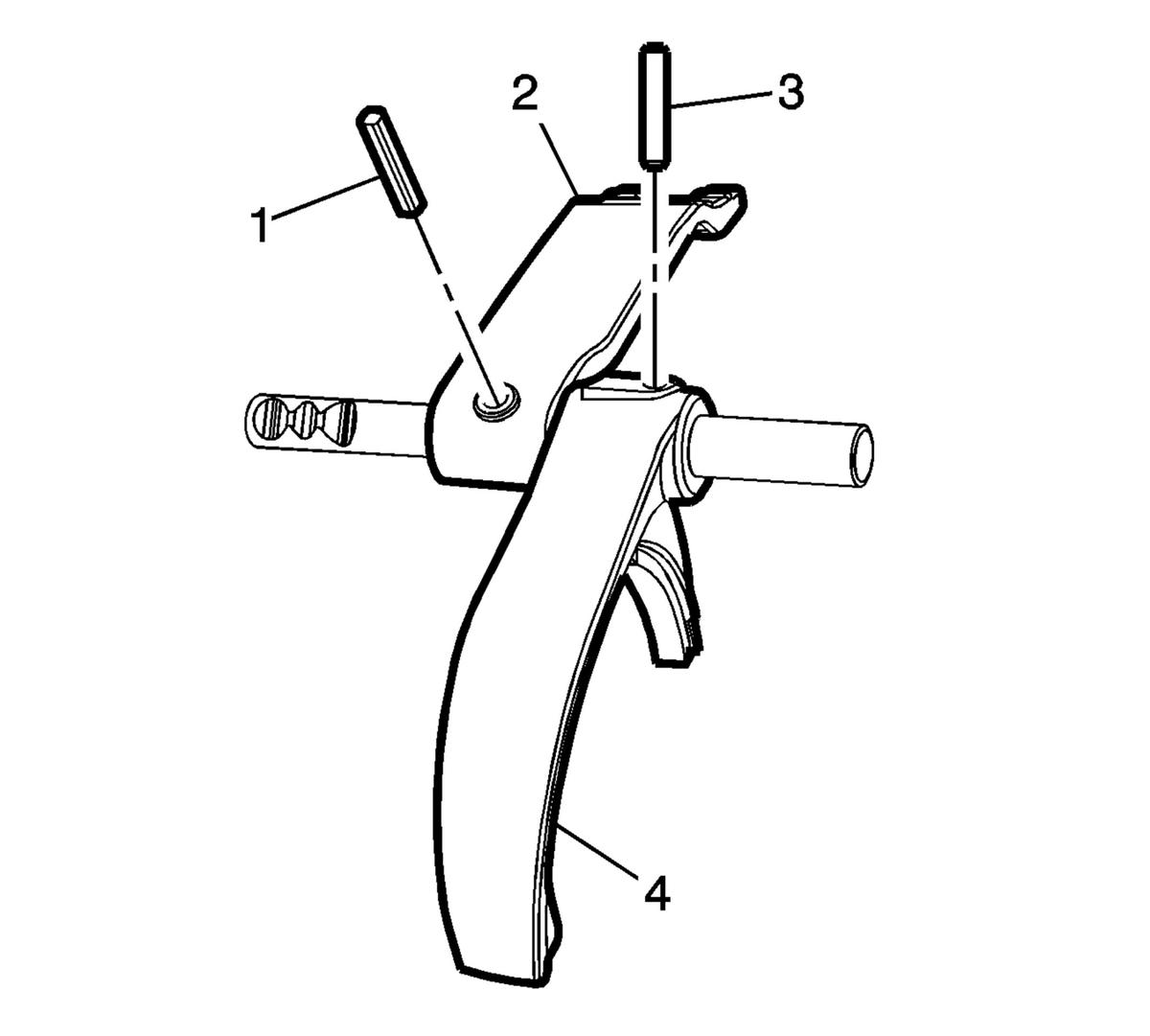

  1. GM2493600Courtesy of GENERAL MOTORS COMPANY

    Place the shift shaft into a vise with a protector.

  2. Install the 1st-2nd gear shift fork (4).
  3. Install the new 1st-2nd gear shift fork pin (3) using a pin punch and a hammer.
  4. Install the 1st-2nd gear shift yoke (2).
  5. Install the new 1st-2nd gear shift yoke pin (1) using a pin punch and a hammer.
  6. Install the 1st-2nd gear shift shaft assembly into the gear unit.
  7. Install the gear unit. Refer to Transmission Assemble .
