Counter Gear Shaft Assemble

WARNING: This page is about a different variant/trim than selected.

Special Tools

For equivalent regional tools, refer to Special Tools .

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Coat the inner parts of the gear, the bearing and the oil seal with gear fluid.

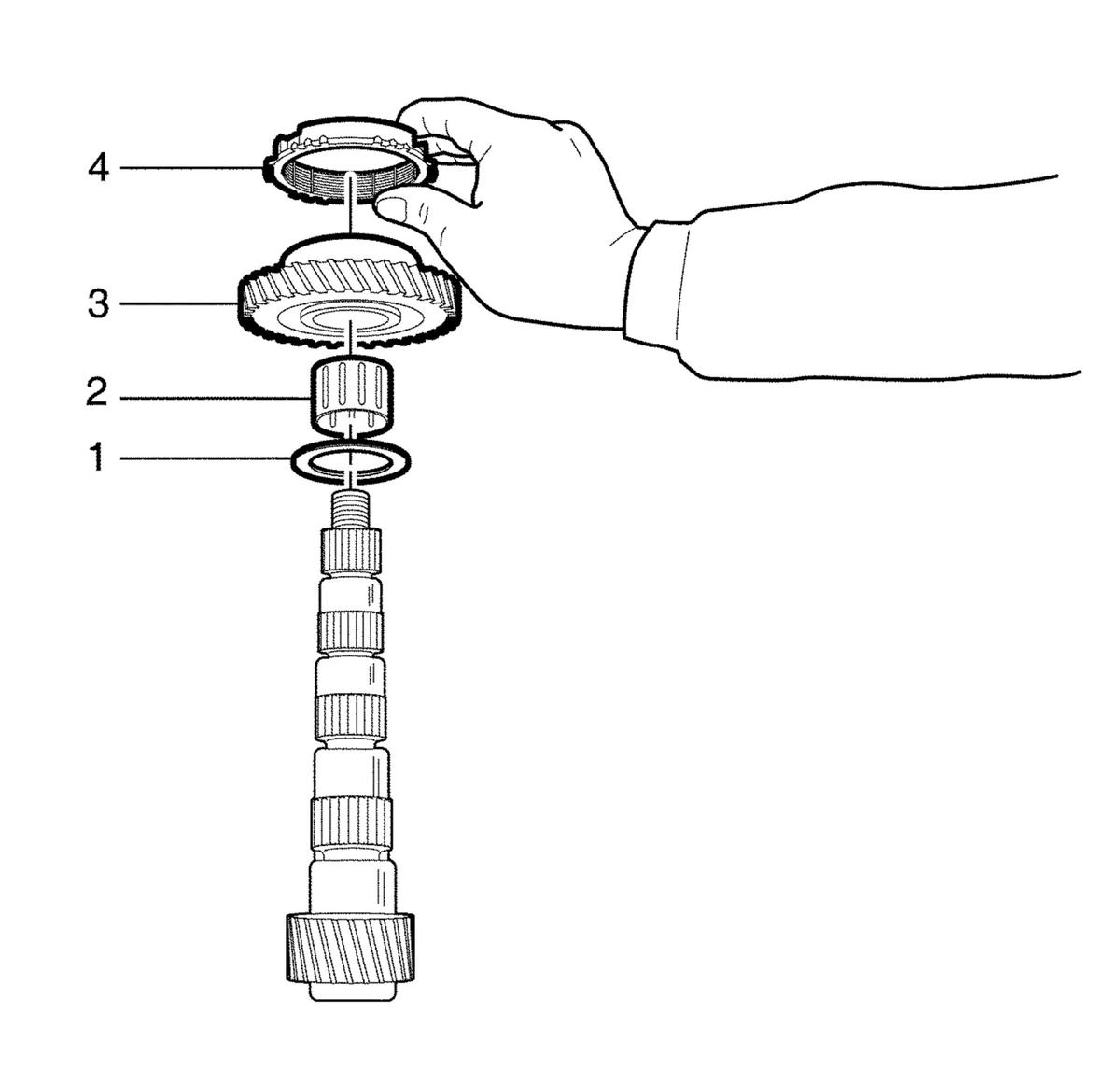

Install the 1st gear spacer (1).
Install the 1st gear bearing (2).
Install the 1st gear (3).
Install the 1st gear synchronizer ring (4).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Make sure that the key units is properly seated into the key groove of sleeve and hub.

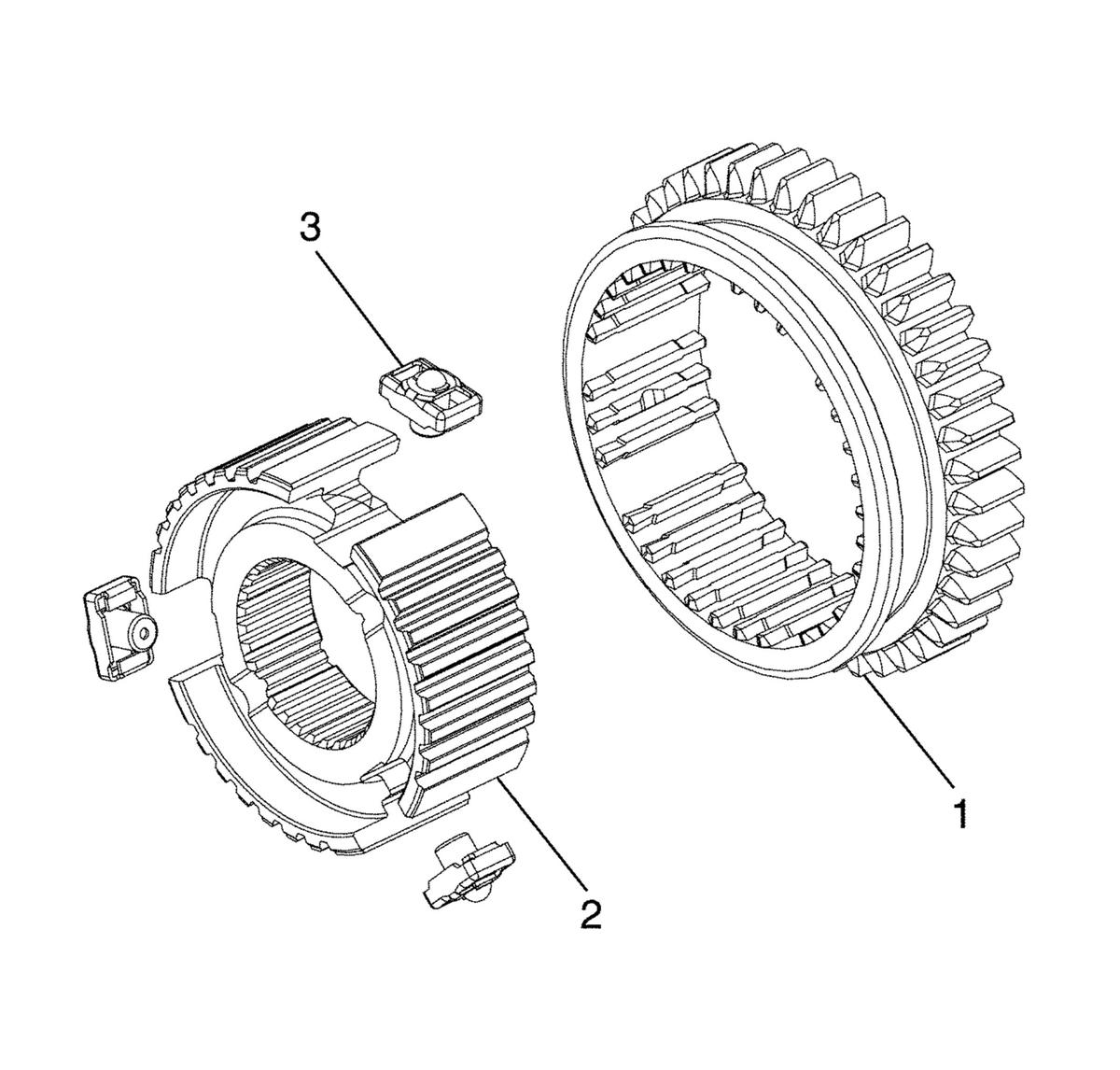

Install the hub (2) to the 1st-2nd gear synchronizer sleeve (1).
Install the key units (3) into the key groove of the hub and sleeve.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Match the key groove of hub to the 1st gear synchronizer ring lug.

Install the 1st-2nd gear synchronizer hub assembly (2) into the counter shaft using the DT-49081 gear, bearing installer (1), and a press.
Courtesy of GENERAL MOTORS COMPANY

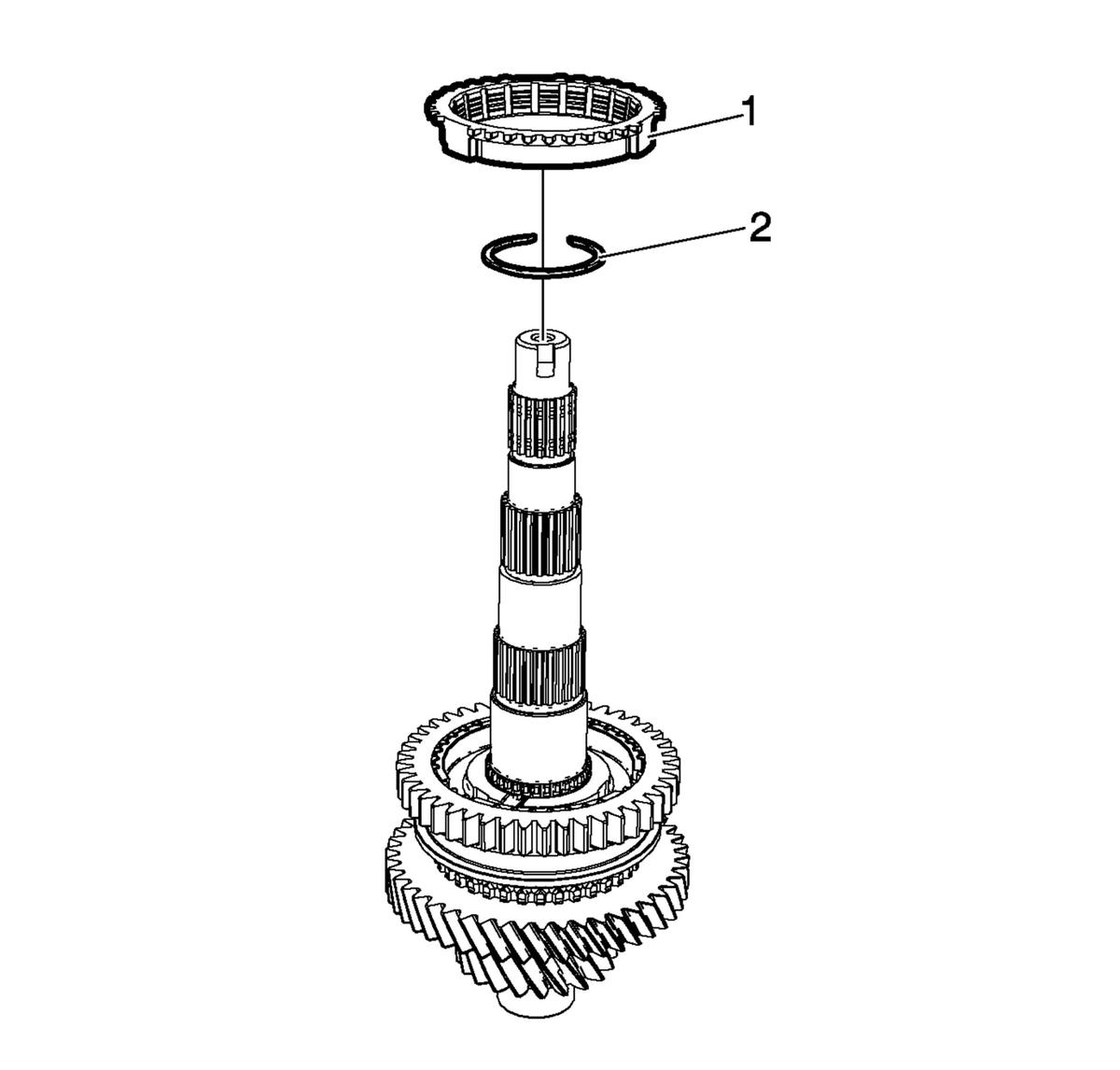

Install the 1st-2nd gear synchronizer circlip (2).

NOTE:

Match the 2nd synchronizer ring lug to the key groove of hub.

Install the 2nd synchronizer ring (1).
Courtesy of GENERAL MOTORS COMPANY

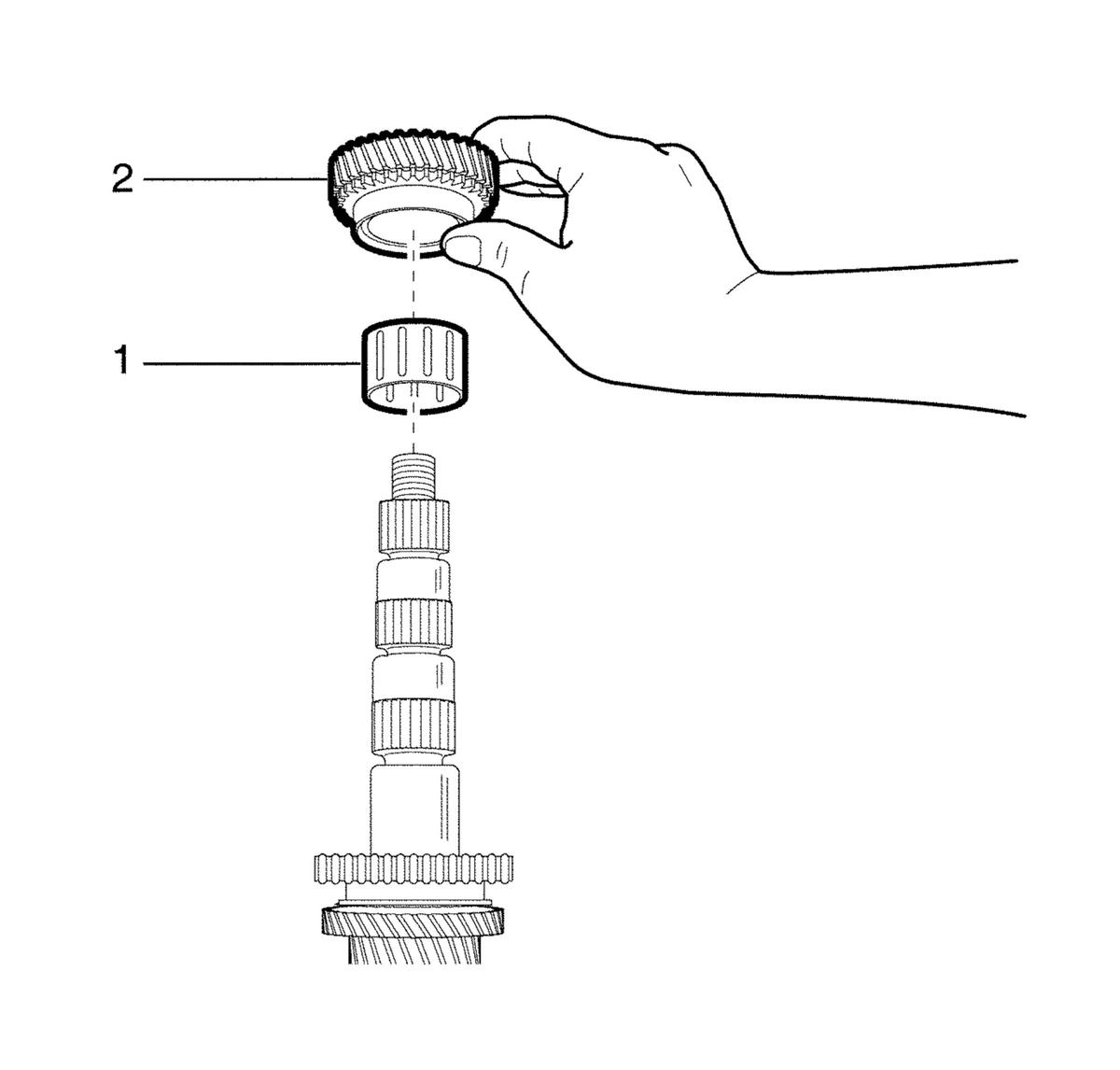

Install the 2nd gear bearing (1).
Install the 2nd gear (2).
Courtesy of GENERAL MOTORS COMPANY

Insert the 3rd gear and the 3rd-4th gear spacer into the counter shaft.

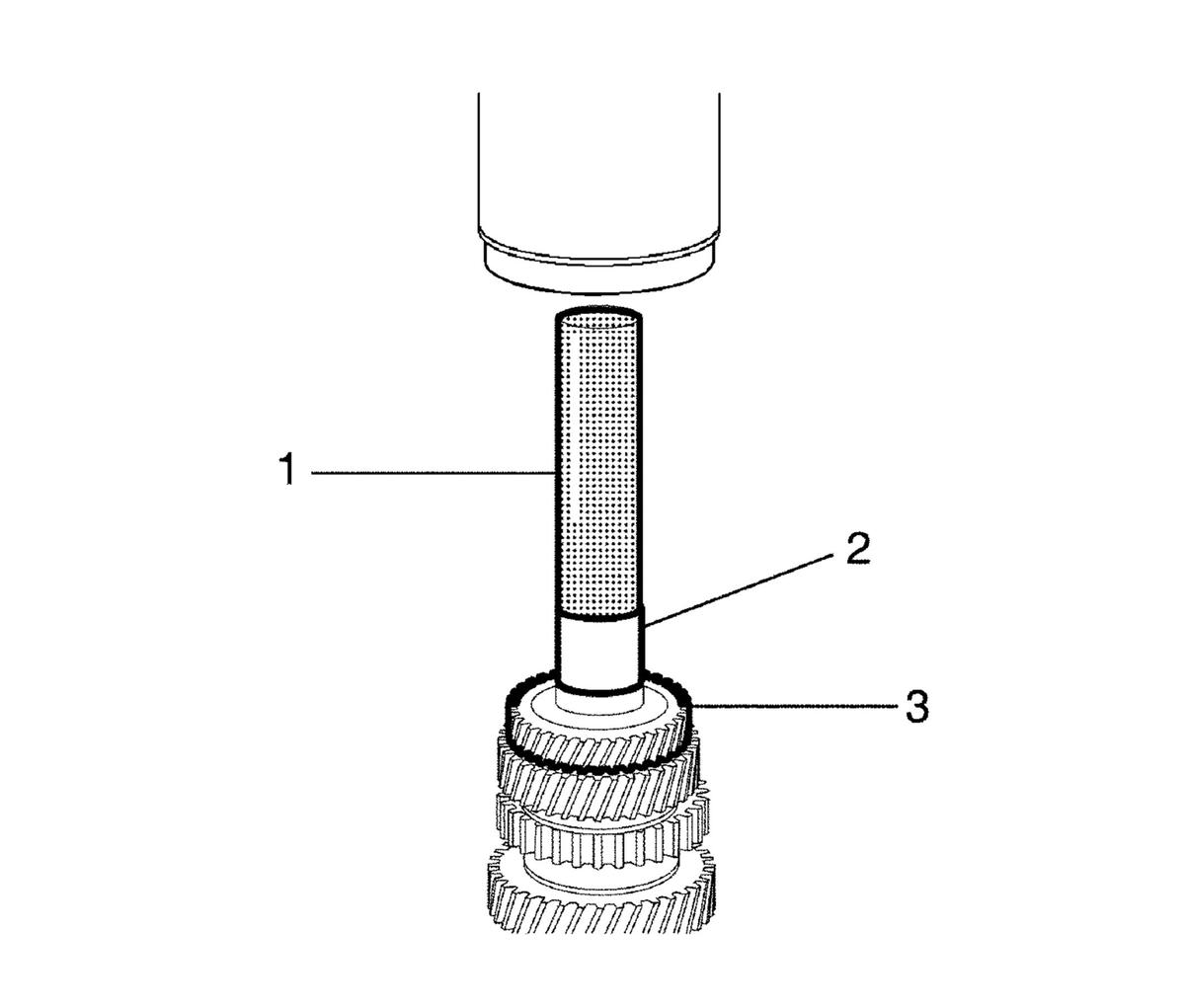

Install the 3rd-4th gear spacer (2) and the 3rd gear (3) using the DT-49079 gear, bearing installer (1) and a press.
Courtesy of GENERAL MOTORS COMPANY

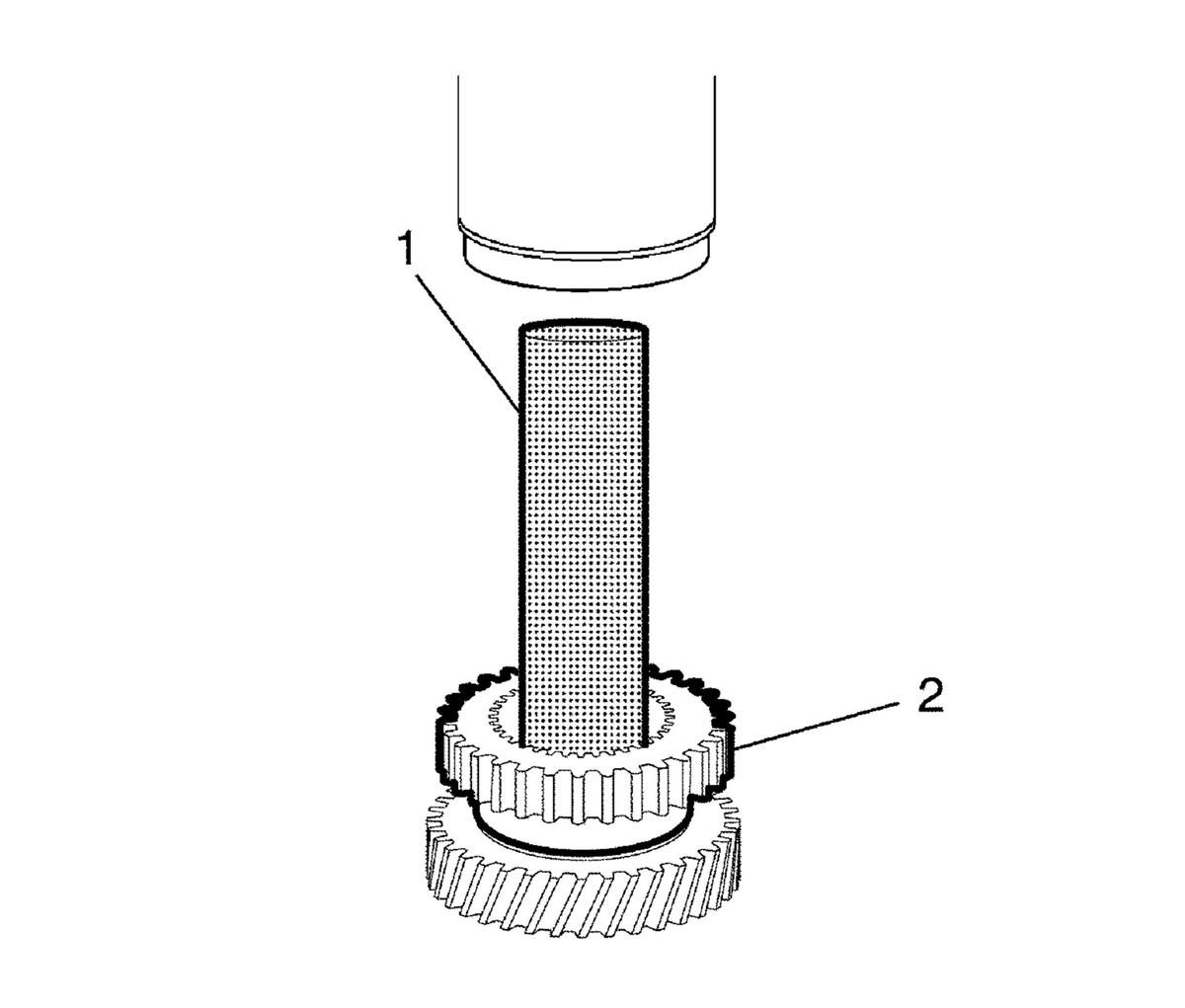

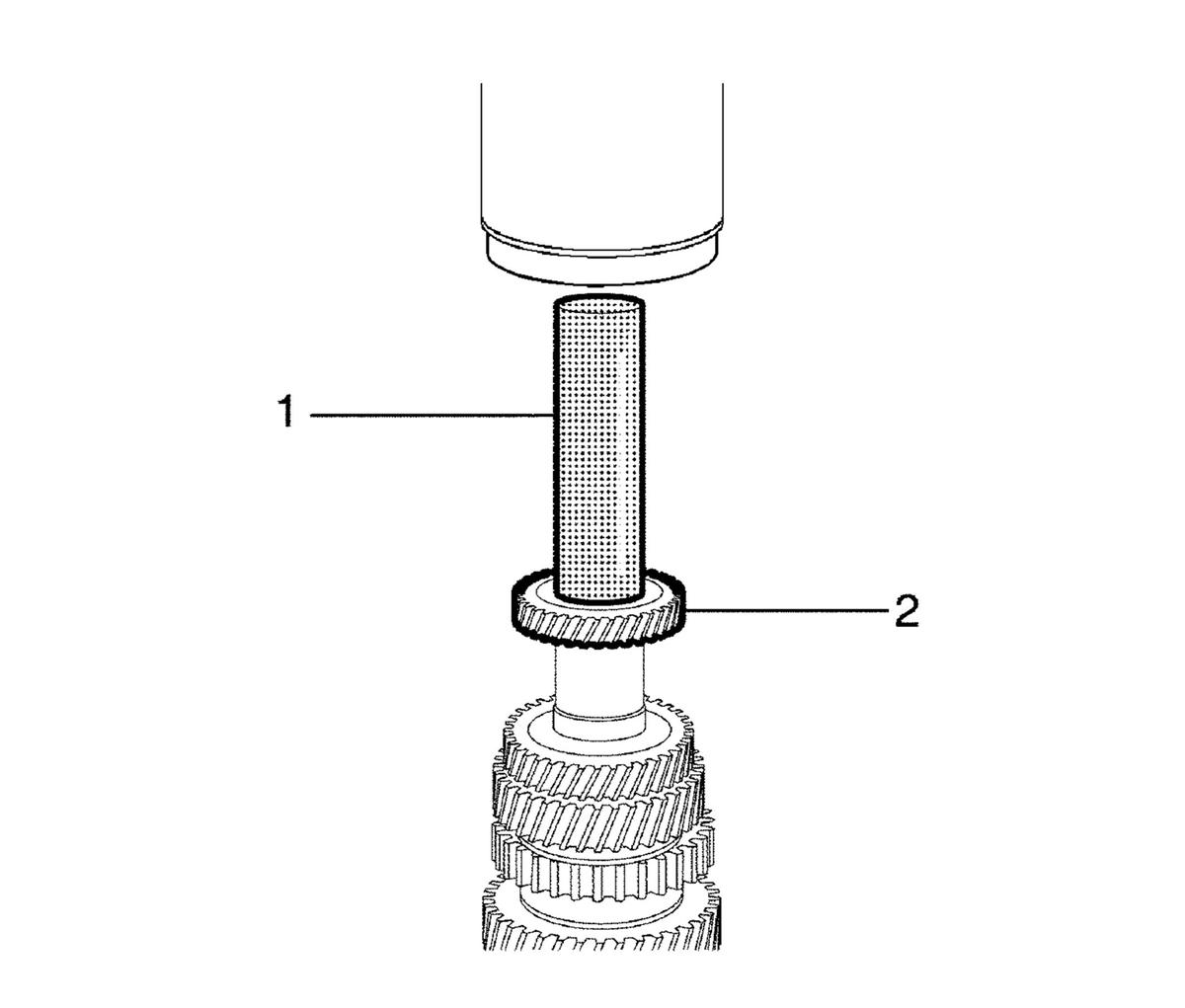

Install the 4th gear (2) to the counter shaft using the DT-49080 gear, bearing installer (1) and a press.
Courtesy of GENERAL MOTORS COMPANY

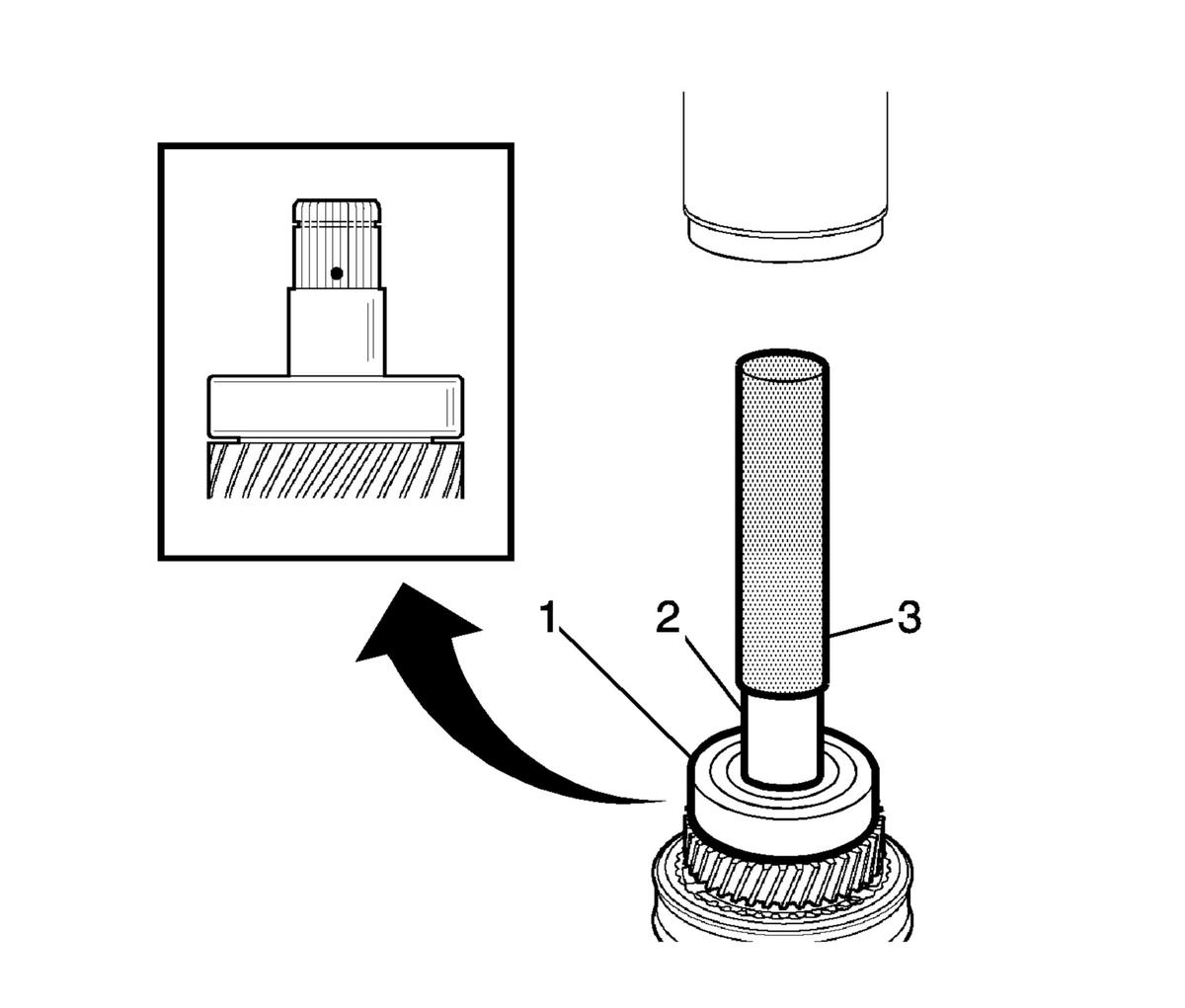

Install the left side bearing (2) onto the countershaft using the DT-49080 gear, bearing installer (1) and a press.
Courtesy of GENERAL MOTORS COMPANY

Install the countershaft right side bearing.
Install the gear unit. Refer to Transmission Assemble .
