Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

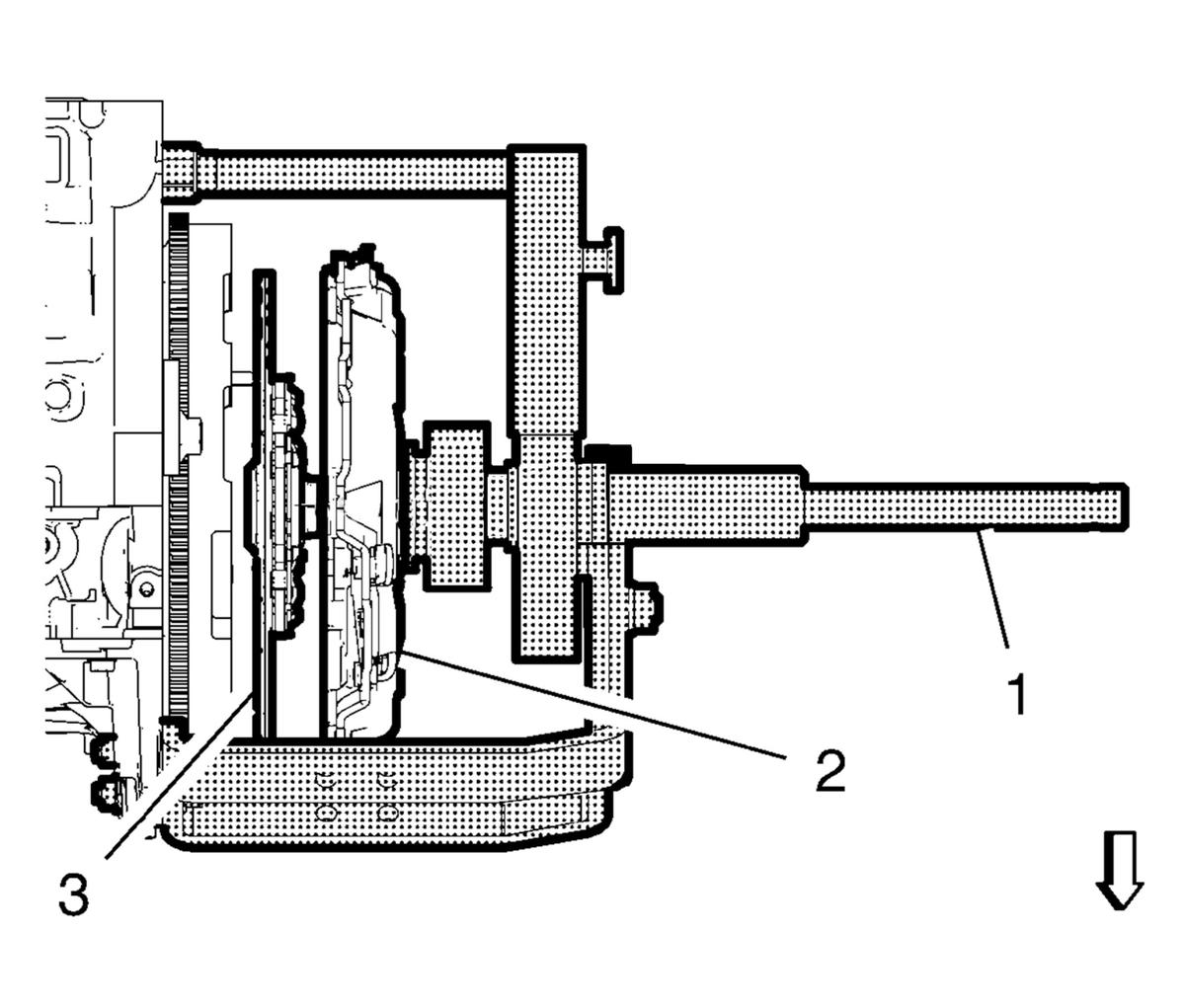

Install the clutch driven plate (3) and the clutch pressure plate (2).

Center the clutch driven plate, using the DT-6263-30 centering drift (1) in conjunction with the clutch center guide.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do NOT turn further than necessary.

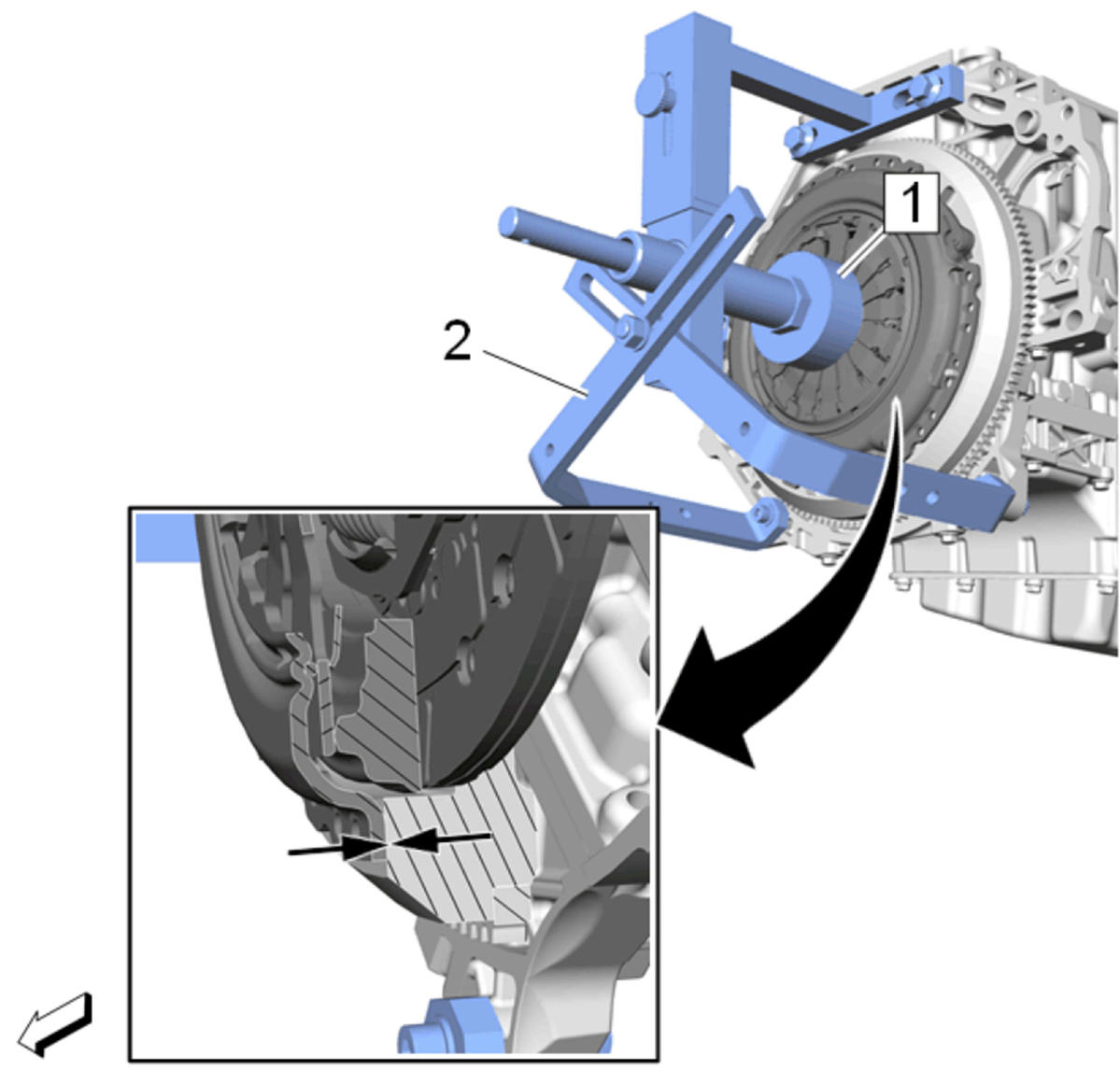

Preload the clutch springs, using the DT-6263 remover/installer (2).

Turn the threaded rod (1) clockwise until the pressure plate contacts the flywheel (arrows).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

NOTE:
In the case that the clutch pressure plate bolts where assembled with thread lock agent: Service may offer bolts that are not microencapsulated. If this is the case apply thread lock agent to the bolt. If fastener is microencapsulated, install NEW clutch pressure plate bolts. DO NOT reuse the old bolt.

Install the 6 NEW clutch pressure plate bolts (1). For the correct bolts, refer to the electronic parts catalog.
Tighten the clutch pressure plate bolts to 25 N.m (18 lb ft).
Courtesy of GENERAL MOTORS COMPANY

Remove the DT-6263 remover/installer (2) from the engine block.
1. Turn the threaded rod (1) of the DT-6263 remover/installer counterclockwise to the stop.
2. Remove the DT-6263-30 centering drift (3) in conjunction with the clutch center guide (arrow).
3. Remove the 4 bolts removing the DT-6263 remover/installer from the engine block.
Courtesy of GENERAL MOTORS COMPANY

Remove the EN-652 holder (1) from the engine block.
Install the transmission. Refer to Transmission Replacement (With 1.0L Engine)Transmission Replacement (With 1.4L Engine) .
