Removal Procedure
WARNING: This page is about a different variant/trim than selected.
WARNING:
Refer to Brake Fluid Irritant Warning .
CAUTION:
Refer to Brake Fluid Effects on Paint and Electrical Components Caution .
- NOTE:
Before disconnecting the reservoir tank hose, remove the clutch/brake fluid from the reservoir tank.

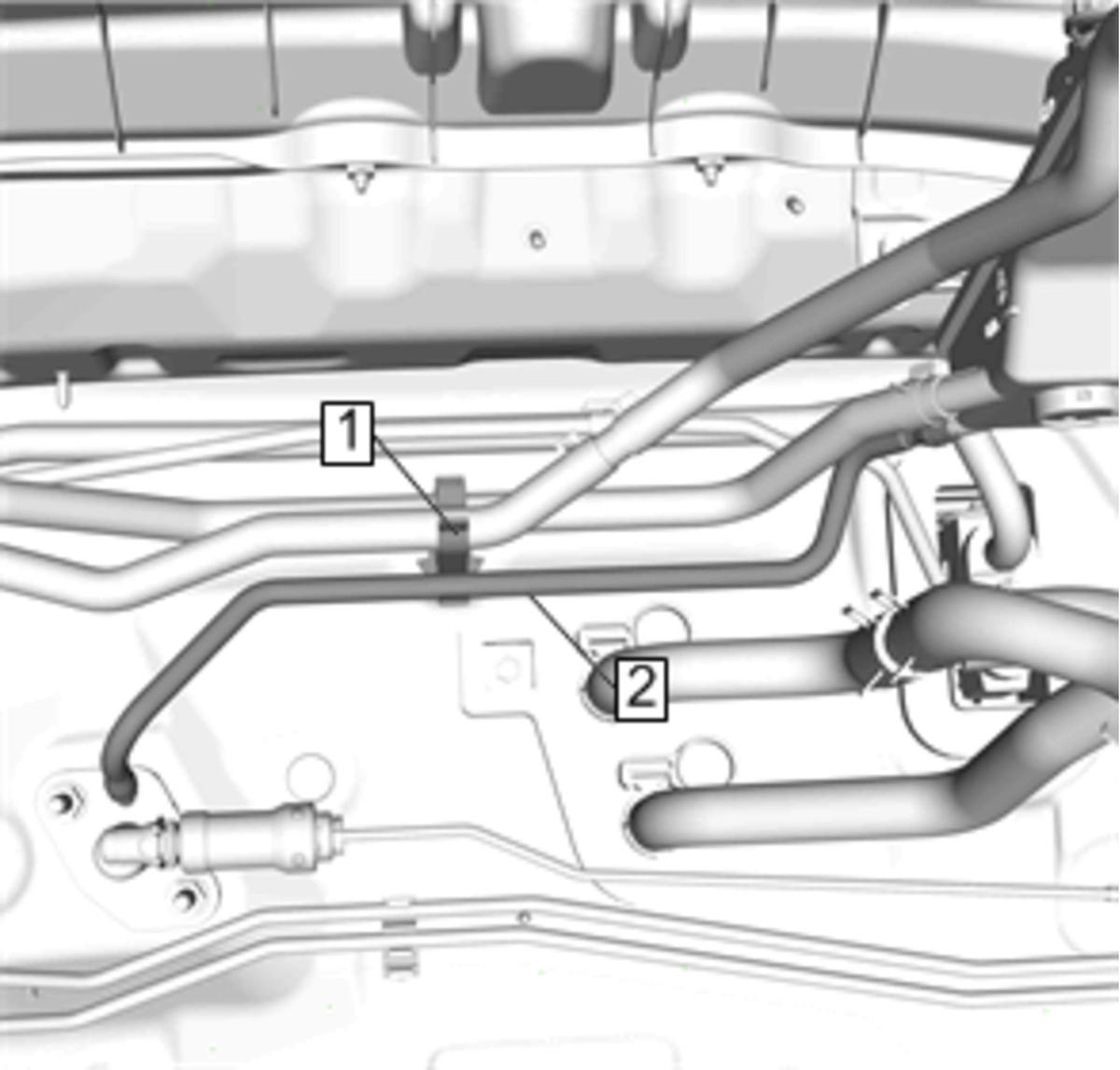

Disconnect the clutch master cylinder reservoir hose from the master cylinder reservoir retainer (1).
- Remove the clutch master cylinder reservoir hose (2) from the reservoir tank and the clutch master cylinder.
