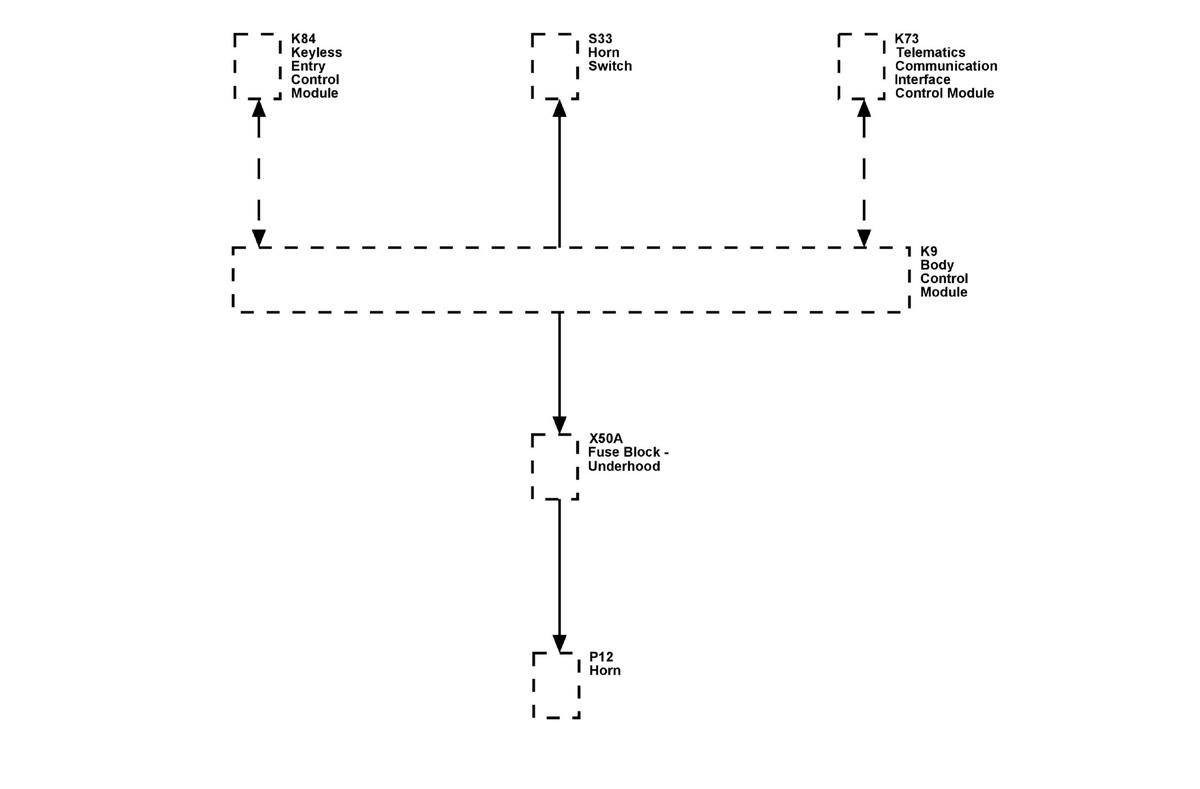

14 Horns Block Diagram
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| K84 |
K84 Keyless Entry Control Module |
| S33 |
S33 Horn Switch |
| K73 |
K73 Telematics Communication Interface Control Module |
| K9 |
K9 Body Control Module |
| X50A |
X50A Fuse Block - Underhood |
| P12 |
P12 Horn |
