Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

Ensure that the park brake lever is in the fully released position.
Remove the front floor console. Refer to Front Floor Console Replacement .
Release the tension from the park brake cables. Using ONLY HAND TOOL, loosen the adjusting nut (1) completely to the end of the park brake cable threaded rod.

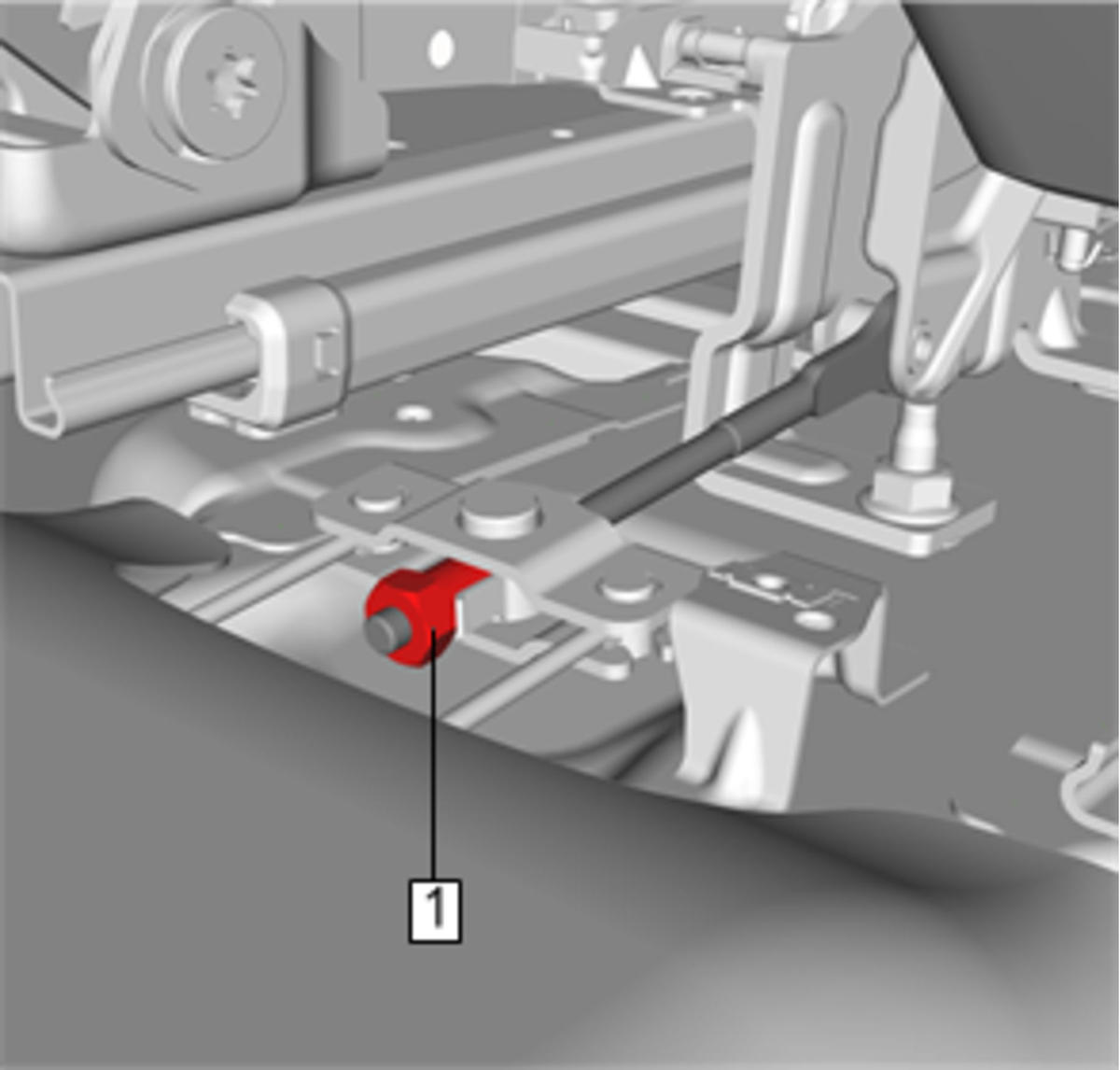

Fig 1: Adjusting Nut
Courtesy of GENERAL MOTORS COMPANY
Disconnect the electrical connector from the park brake indicator switch.
Disconnect the left and right park brake cables (1) from the park brake cable equalizer (2).

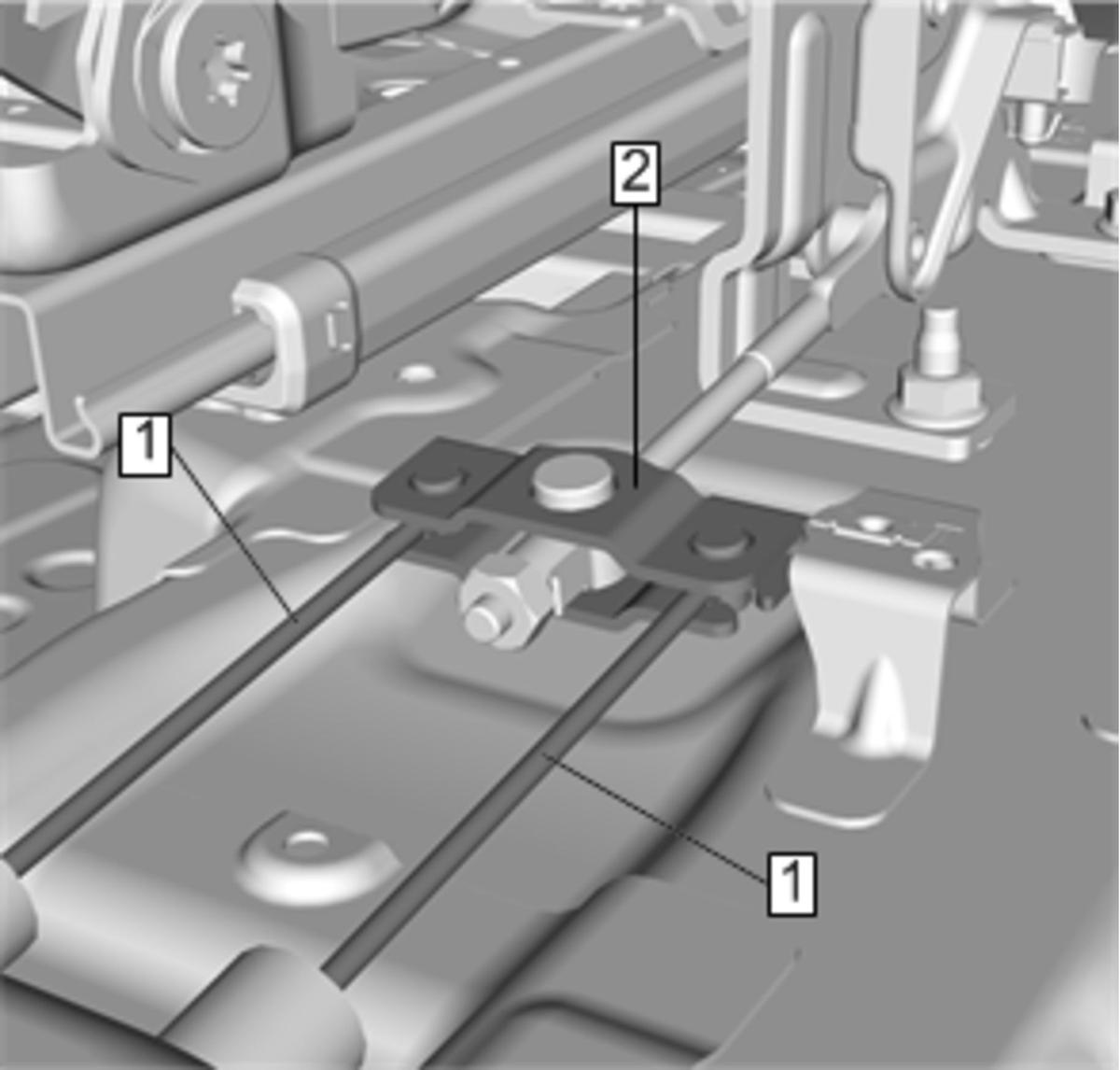

Fig 2: Left And Right Park Brake Cables And Park Brake Cable Equalizer
Courtesy of GENERAL MOTORS COMPANY
Remove the park brake lever nuts (1).

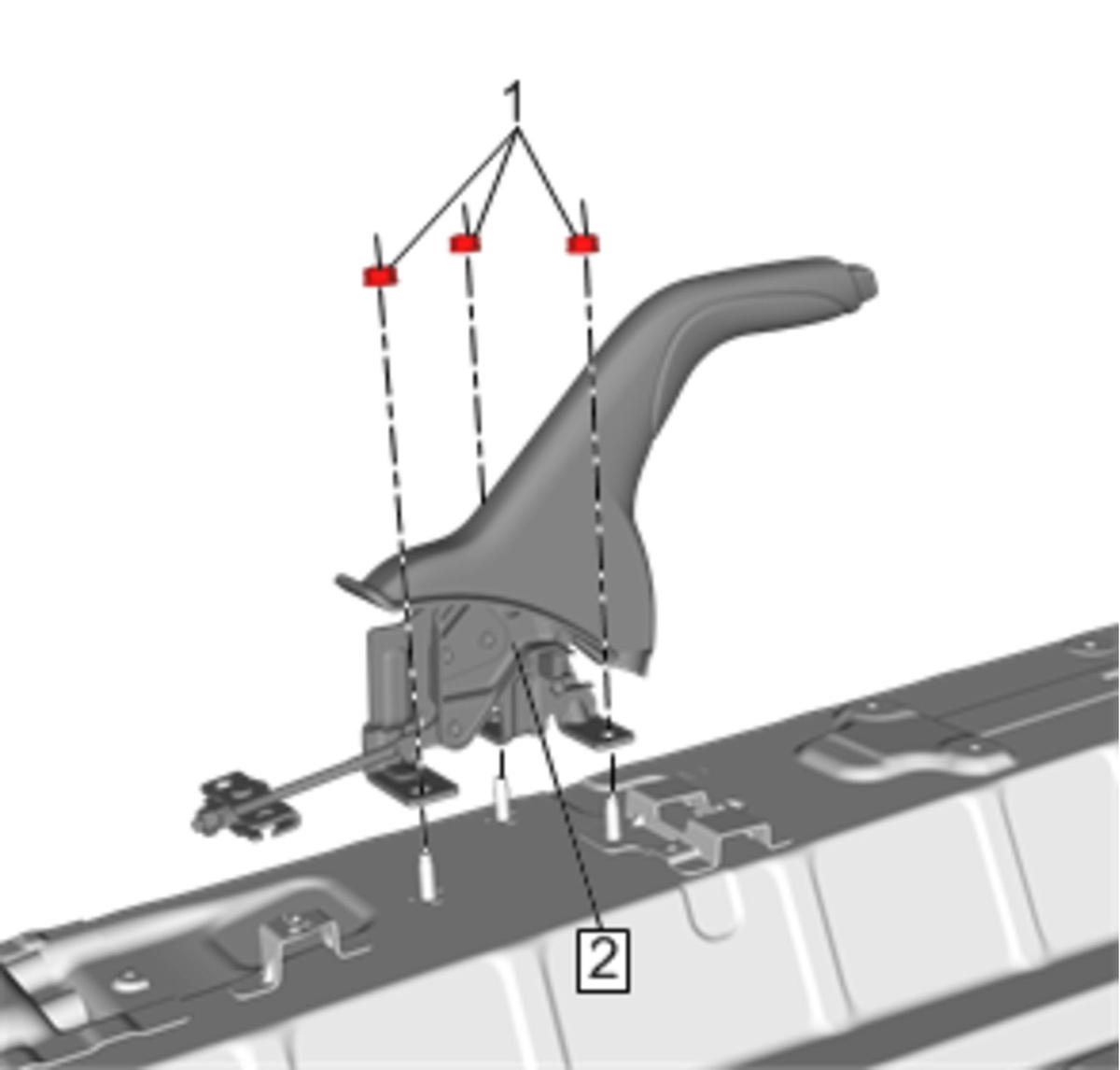

Fig 3: Park Brake Lever Nuts And Park Brake Lever Assembly
Courtesy of GENERAL MOTORS COMPANY
Remove the park brake lever assembly (2) from the vehicle.
