Parking Brake Indicator Switch Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

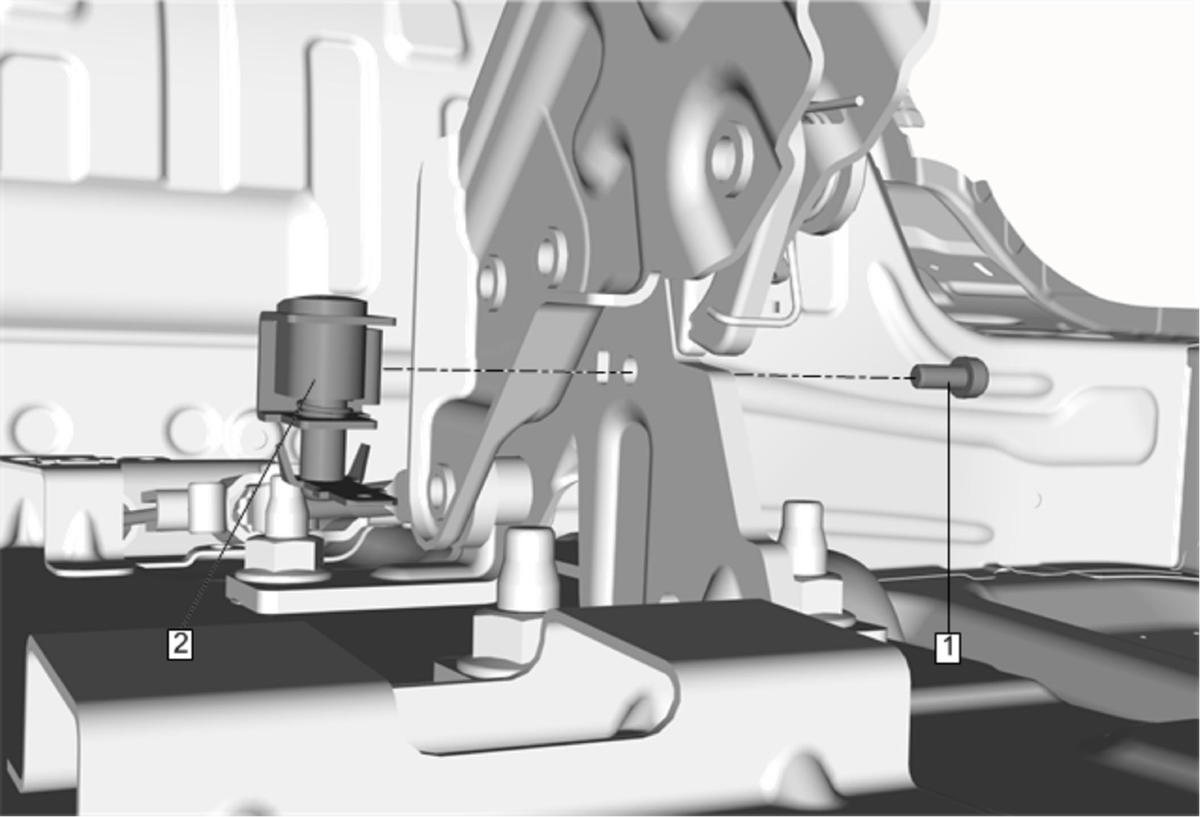

Fig 1: Parking Brake Indicator Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console. Refer to Front Floor Console Replacement .
1	Park Brake Indicator Switch Bolt CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Park Brake Indicator Switch Procedure Disconnect the electrical connector. After installing the park brake indicator switch, check the operation of the park brake indicator switch.

Callout

Component Name

Preliminary Procedure
Remove the front floor console. Refer to Front Floor Console Replacement .

Park Brake Indicator Switch Bolt

CAUTION: Refer to Fastener Caution .

Tighten
1.5 N.m (13 lb in)

Park Brake Indicator Switch

Procedure

Disconnect the electrical connector.
After installing the park brake indicator switch, check the operation of the park brake indicator switch.
