Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

Install the park brake cable to the vehicle.
Using a flat-bladed screwdriver, connect the park brake cable from the park brake lever of the drum brake shoe.
Install the rear park brake cable retaining clip (1) to the drum brake backing plate.

Fig 1: Rear Park Brake Cable Retaining Clip
Courtesy of GENERAL MOTORS COMPANY
Connect the park brake cable (1) to the park brake cable equalizer (2).

Fig 2: Left And Right Park Brake Cables And Park Brake Cable Equalizer
Courtesy of GENERAL MOTORS COMPANY
Install the park brake cable mounting clamp (2) to the floor panel cross bar.

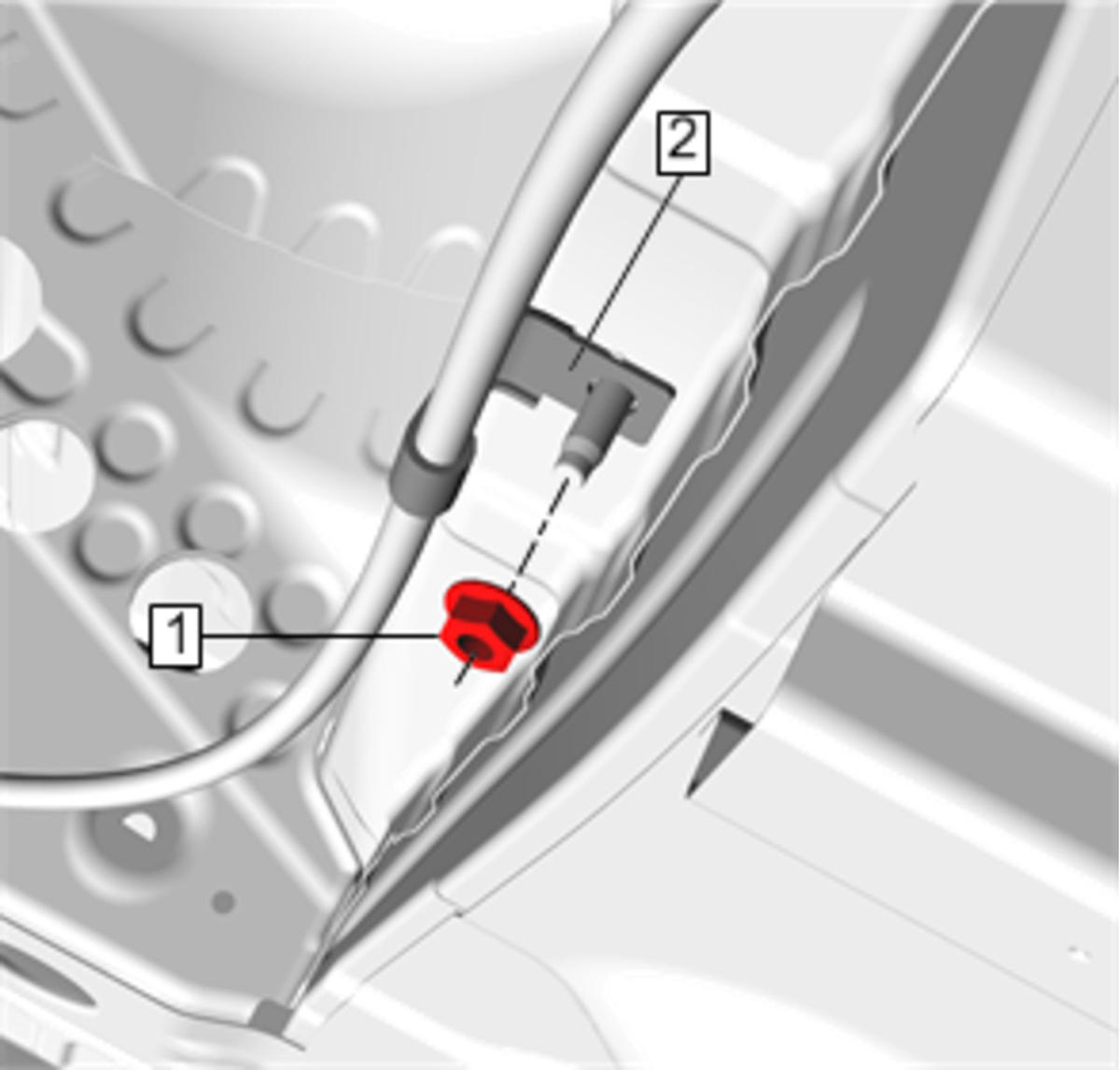

Fig 3: Park Brake Cable Mounting Clamp Nut
Courtesy of GENERAL MOTORS COMPANY
Install the park brake cable mounting clamp nut (1) and tighten to 22 N.m (16 lb ft).
CAUTION: Refer to Fastener Caution .
Install the park brake cable mounting clamp (2) to the rear side rail.

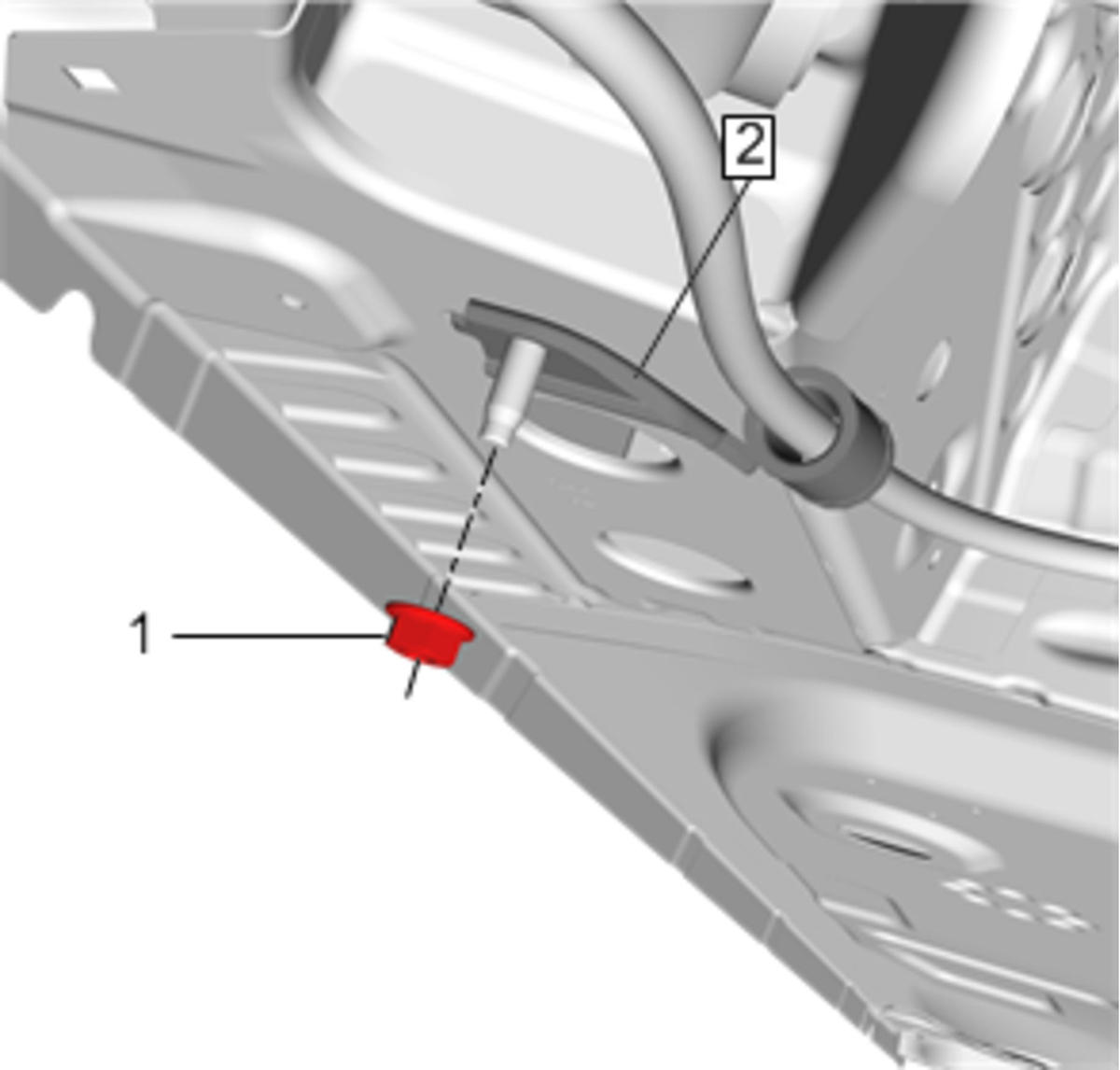

Fig 4: Park Brake Cable Mounting Clamp
Courtesy of GENERAL MOTORS COMPANY
Install the park brake cable mounting clamp nut (1) and tighten to 22 N.m (16 lb ft).
Install the park brake cable mounting clamp (2) to the rear axle bracket.

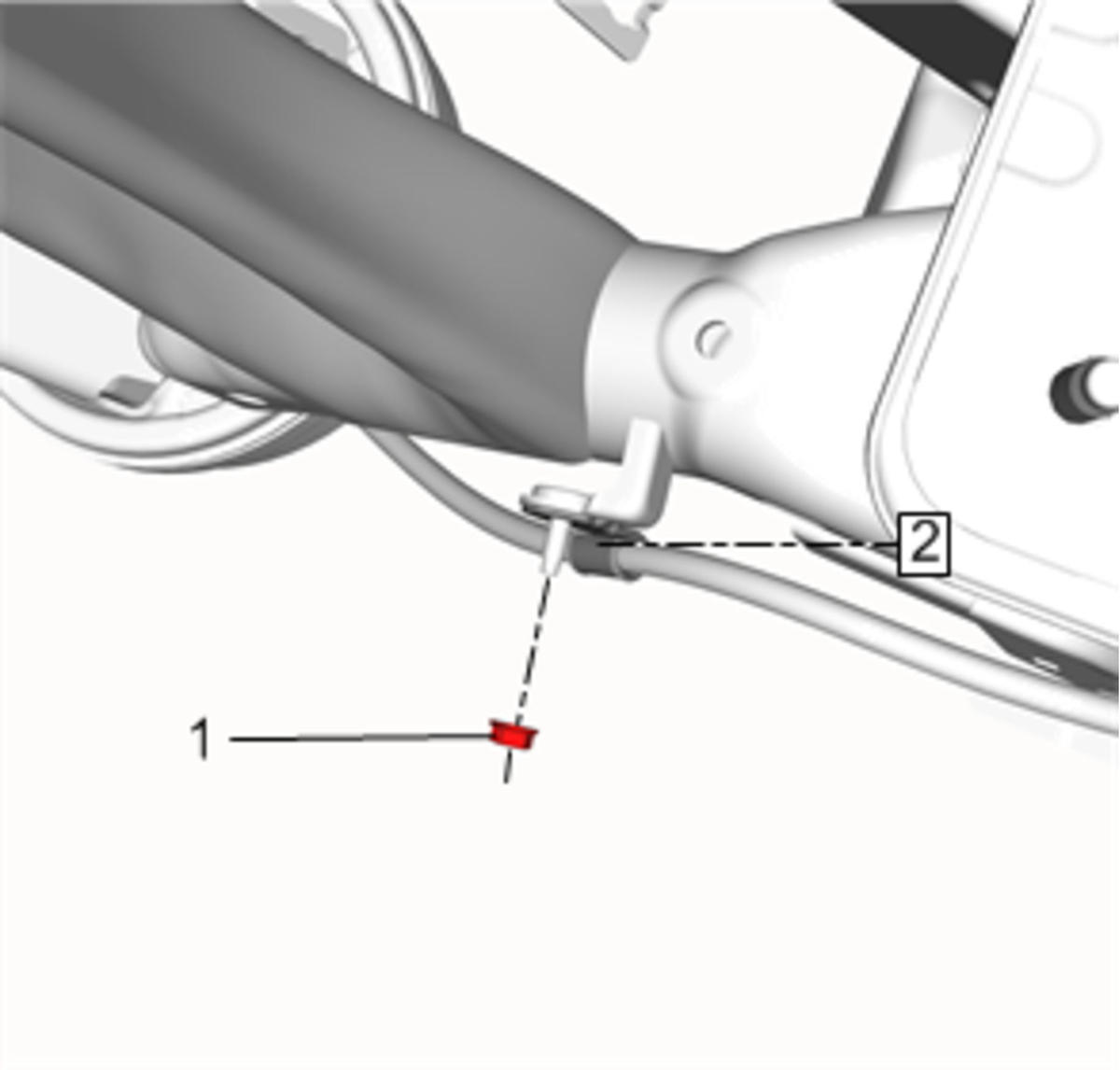

Fig 5: Park Brake Cable Mounting Clamp Nut
Courtesy of GENERAL MOTORS COMPANY
Install the park brake cable mounting clamp nut (1) and tighten to 9 N.m (80 lb in).
Install the brake drum. Refer to Brake Drum Replacement .
Install the wheel and tire assembly. Refer to Tire and Wheel Removal and Installation .
Adjust the park brake cable tension. Refer to Parking Brake Adjustment .
Install the front floor console. Refer to Front Floor Console Replacement .
