Removal Procedure
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to Brake Dust Warning
.
WARNING:
Refer to Brake Fluid Irritant Warning
.
- Raise and support the vehicle. Refer to Vehicle Lifting and Jacking Caution .
- Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- Remove the brake drum. Refer to Brake Drum Replacement .
- Remove the drum brake adjusting hardware. Refer to Drum Brake Adjusting Hardware Replacement .
- Clean the area surrounding the rear brake cylinder of dirt and debris.
- Remove the rear brake bleeder valve to get tool access to the brake pipe fitting.

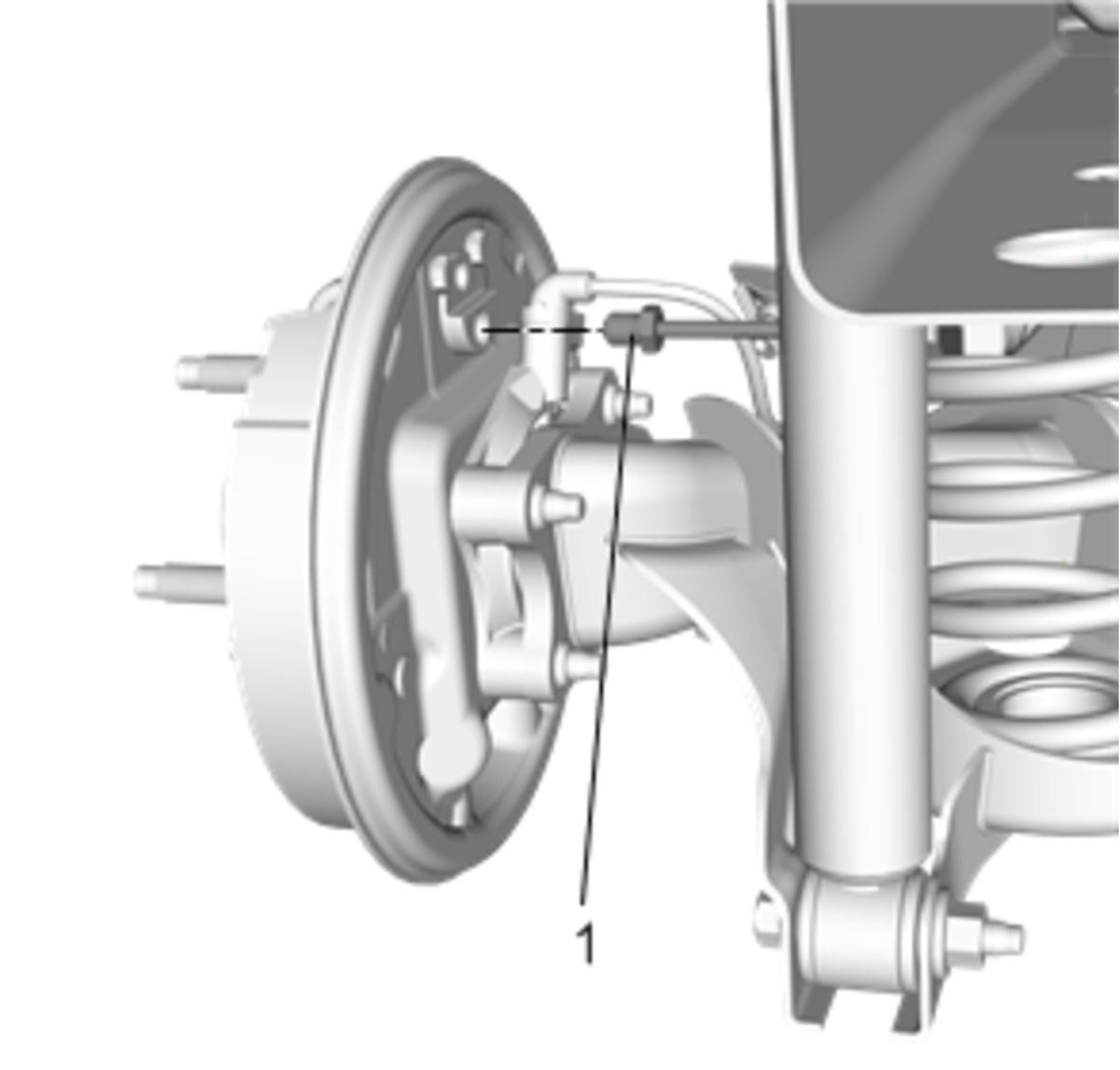

- Disconnect the rear brake cylinder pipe fitting (1). Cap the rear brake cylinder pipe fitting to prevent brake fluid loss and contamination.

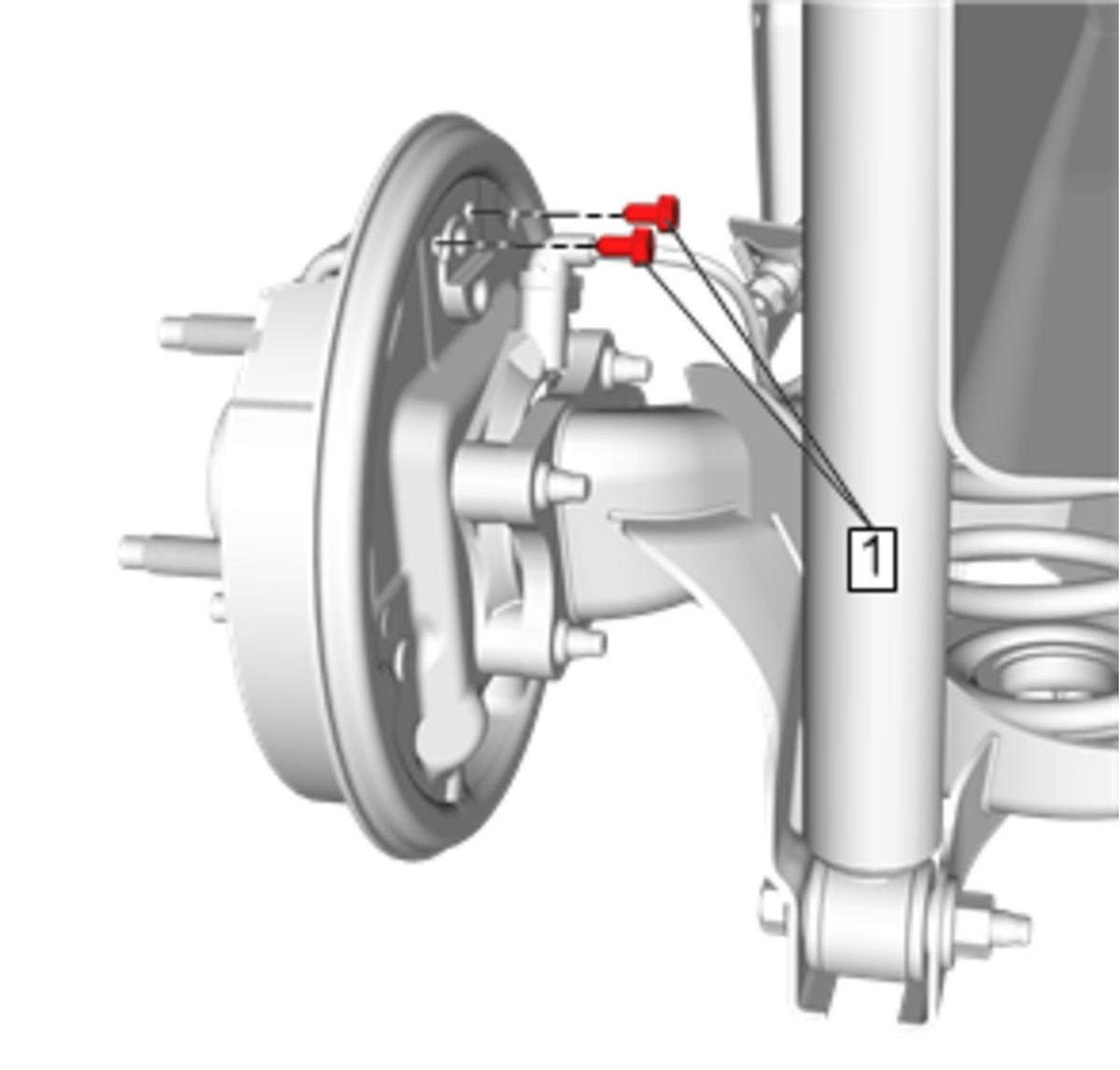

- Remove the rear brake cylinder bolts (1).

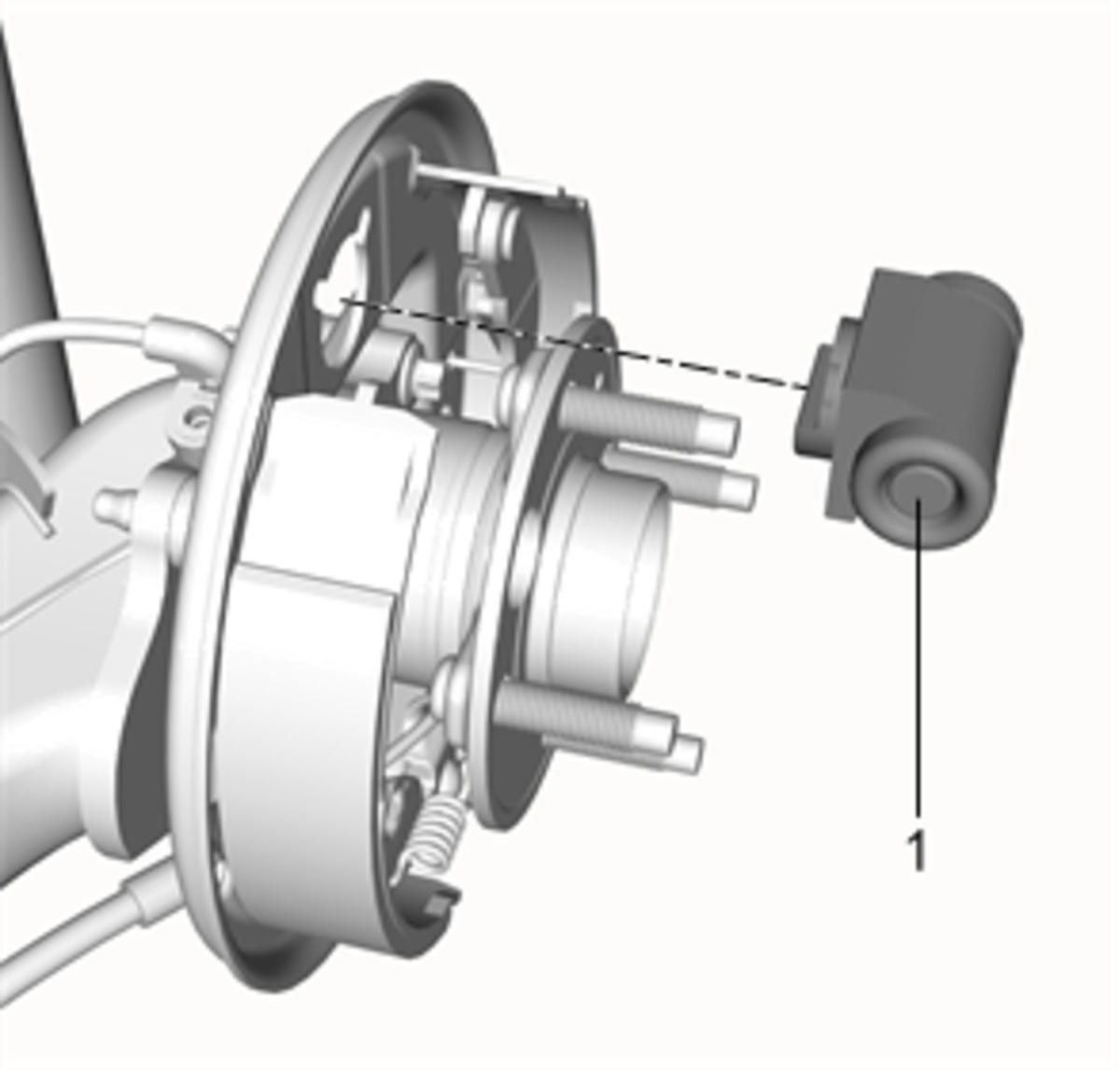

- Spread the top of the brake shoes slightly and remove the rear brake cylinder (1) form the backing plate.
