Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Remove the brake drum. Refer to Brake Drum Replacement .
  4. Remove the rear wheel hub and bearing assembly. Refer to Rear Wheel Bearing and Hub Replacement .
  5. Install a wheel nut (2) flush with the end of the wheel stud (3).

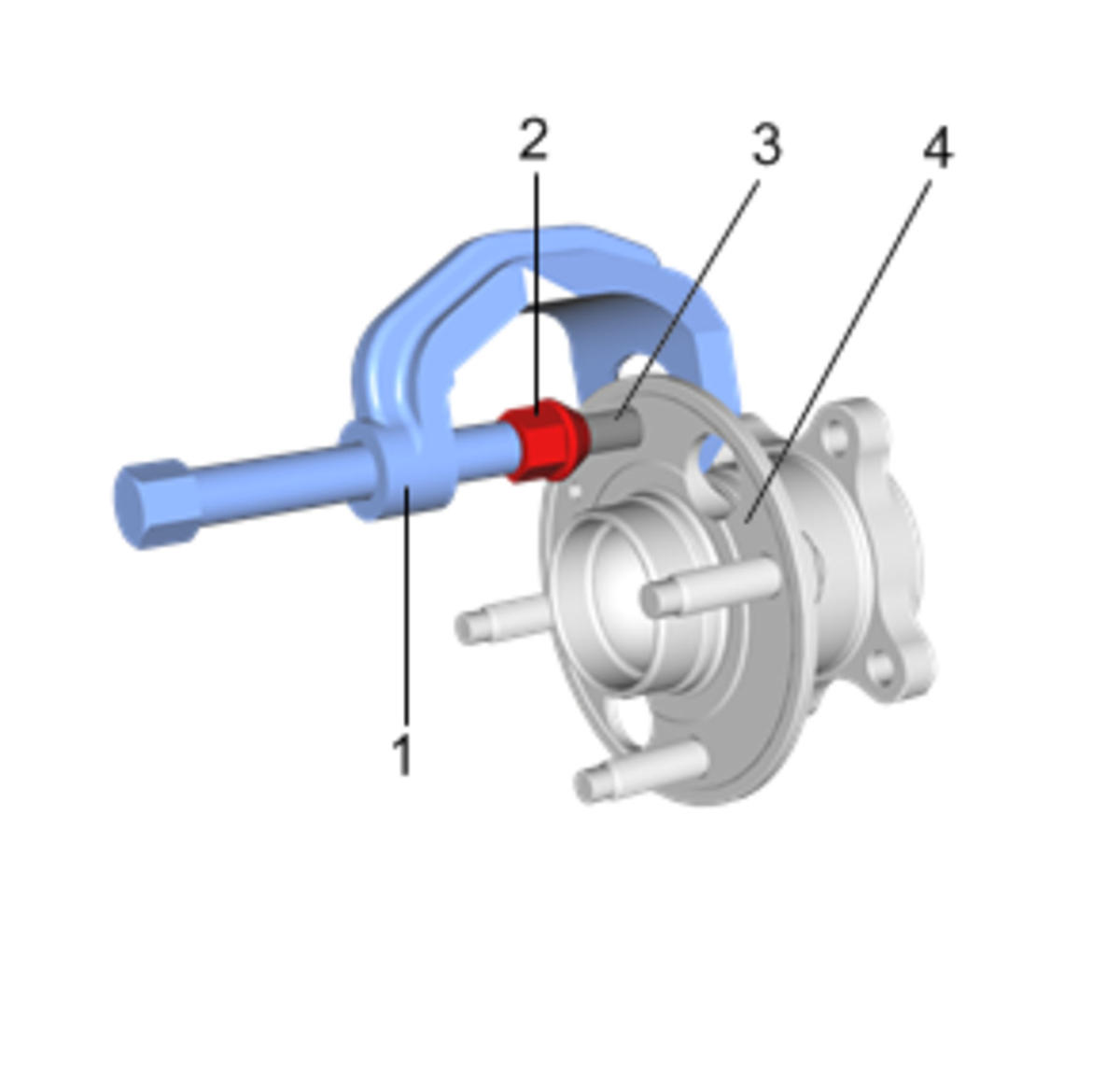

    Fig 1: Wheel Stud And Nut
    GM4042033Courtesy of GENERAL MOTORS COMPANY
  6. Using the CH-43631  ball joint remover (1), remove the wheel stud (3) from the wheel hub (4).
