Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the NEW wheel stud into the wheel bearing/hub (2).

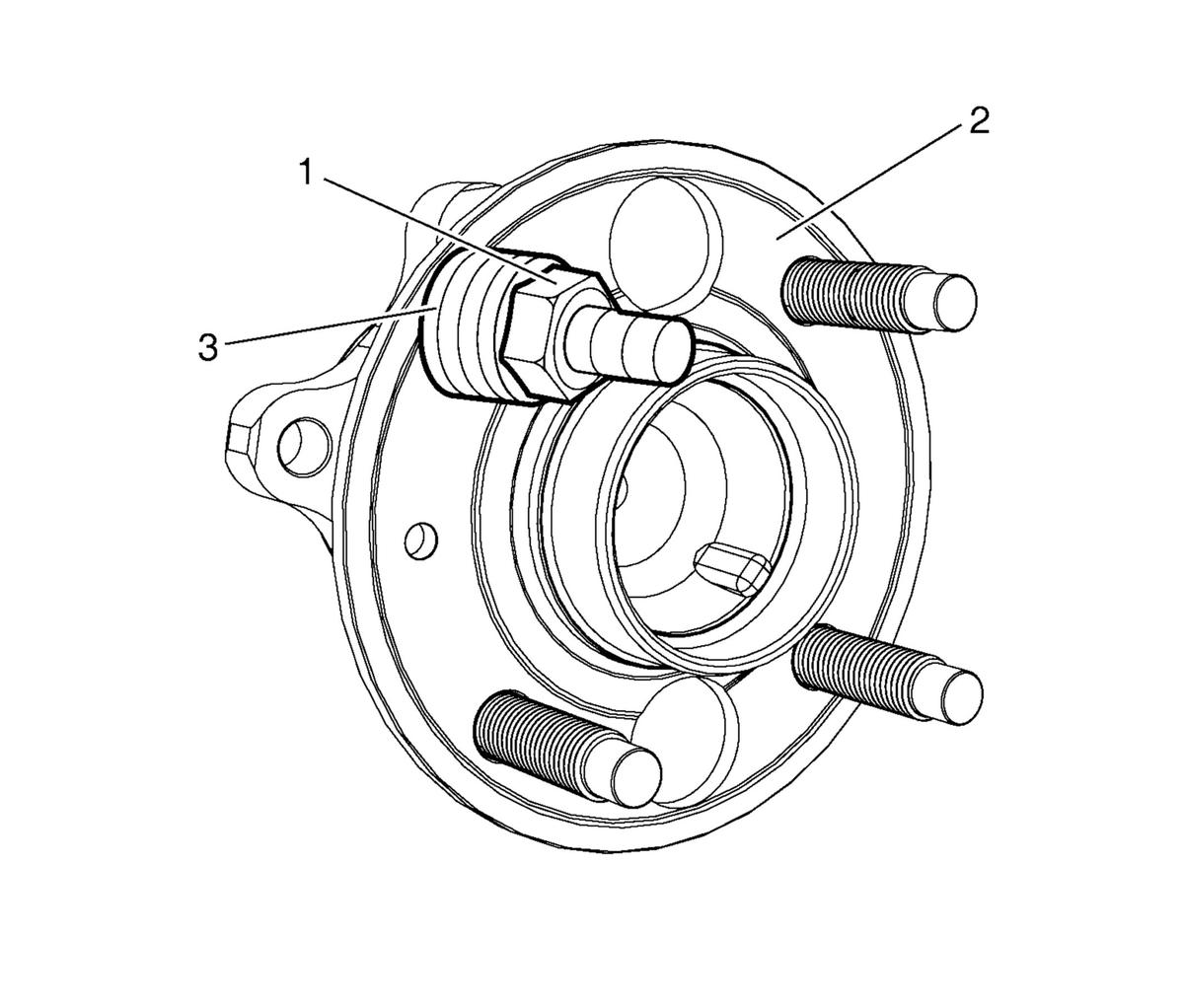

    Fig 1: Wheel Nut And Washers
    GM4042034Courtesy of GENERAL MOTORS COMPANY
  2. Add enough washers (3) in order to draw the stud into the hub.
  3. Install and tighten the wheel nut (1) until the head of the wheel stud is fully seated against the back of the bearing hub flange (2).
  4. Remove the wheel nut (1) and the washers (3).
  5. Install the rear wheel hub and bearing assembly. Refer to Rear Wheel Bearing and Hub Replacement .
  6. Install the brake drum. Refer to Brake Drum Replacement .
  7. Install the rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  8. Lower the vehicle.
