Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear shock absorber (1) to the vehicle.

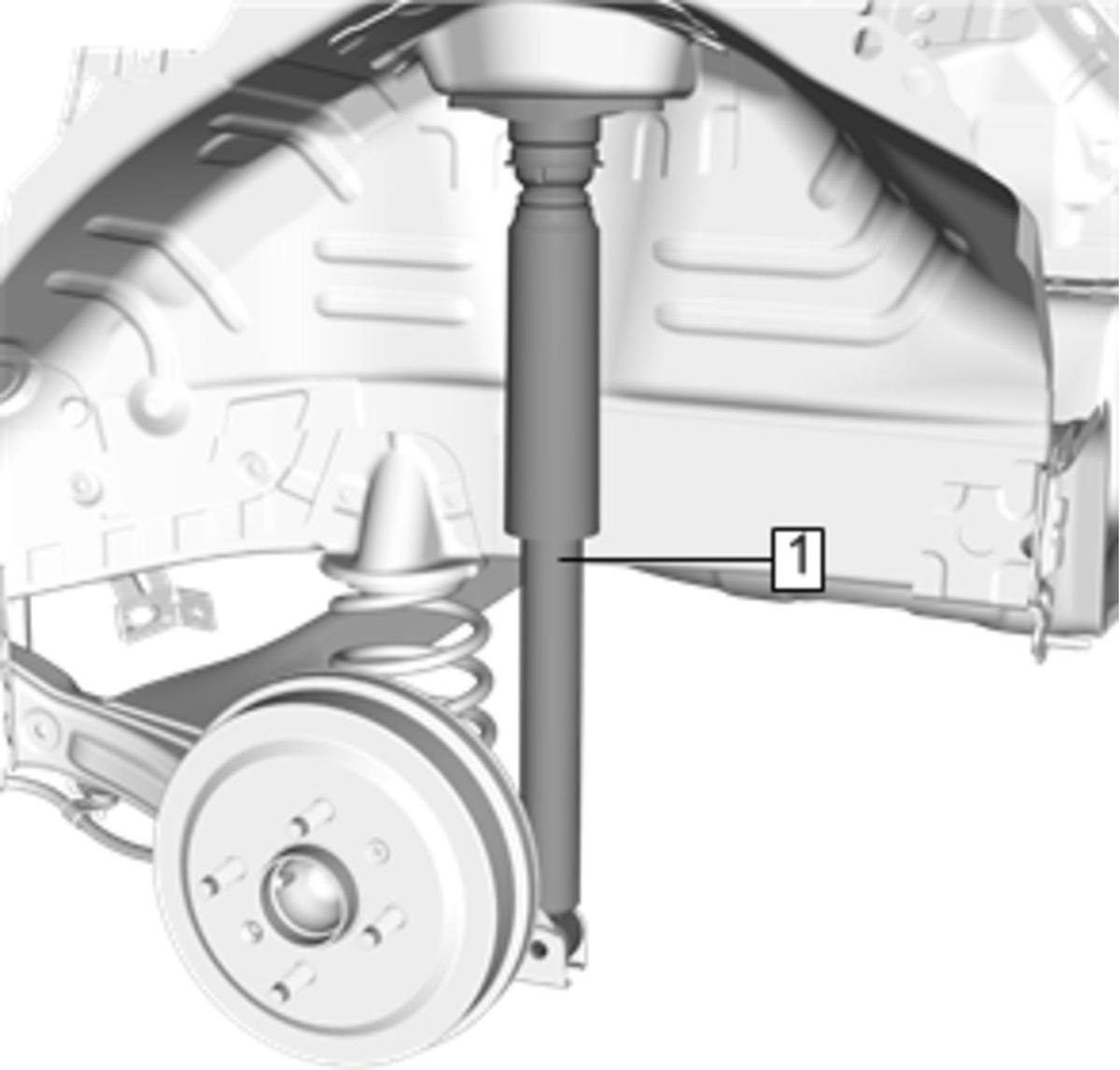

    Fig 1: Rear Shock Absorber
    GM4042031Courtesy of GENERAL MOTORS COMPANY
  2. Install the rear suspension strut bolts (1) and tighten to 22 N.m (16 lb ft).

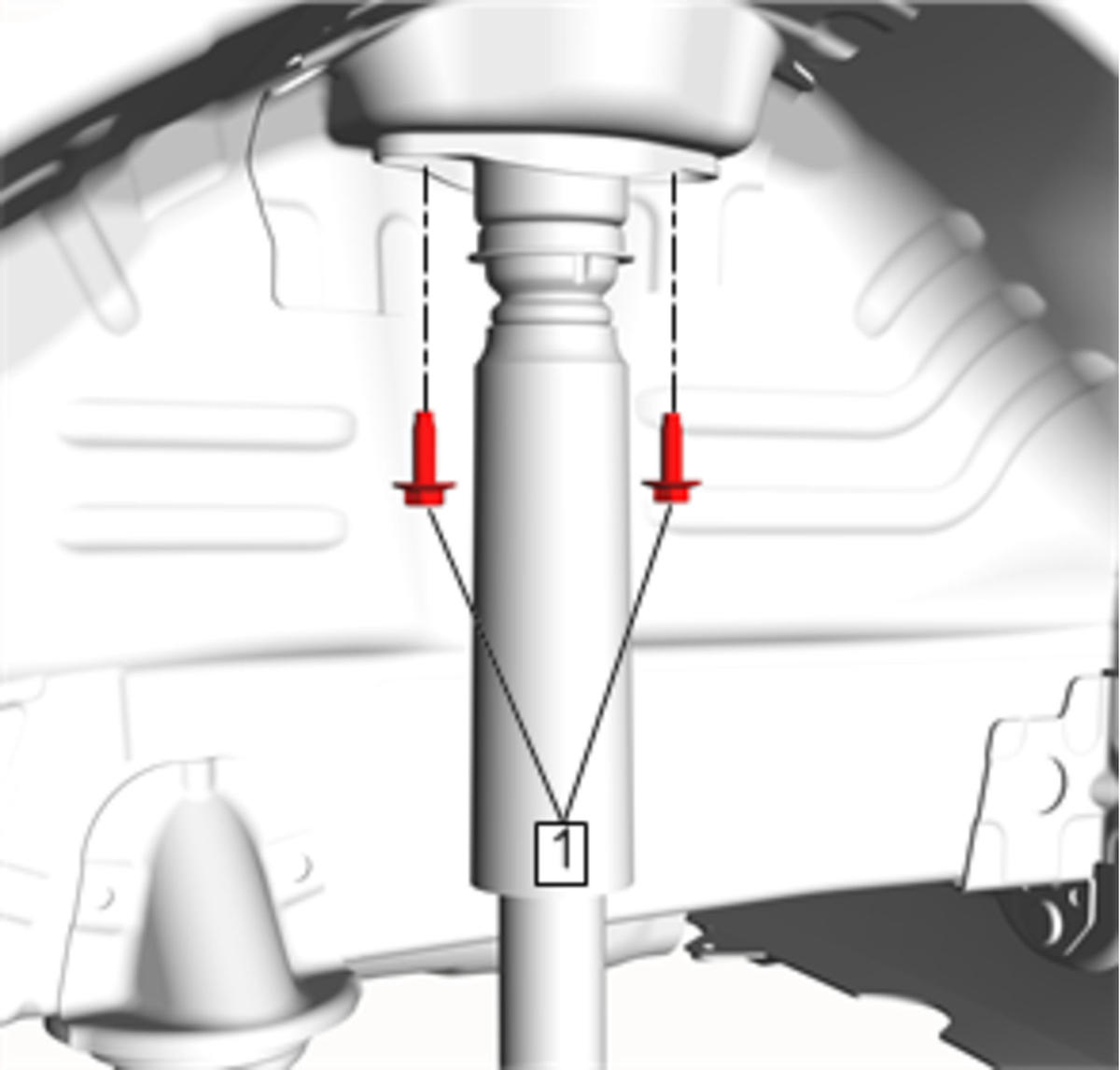

    Fig 2: Rear Suspension Strut Bolts
    GM4042029Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  3. Raise and support the rear axle with a hydraulic jack stand.
  4. Install the rear shock absorber strut to rear axle retaining bolt (1) and tighten to 58 N.m (43 lb ft) + 30 - 45 degrees.

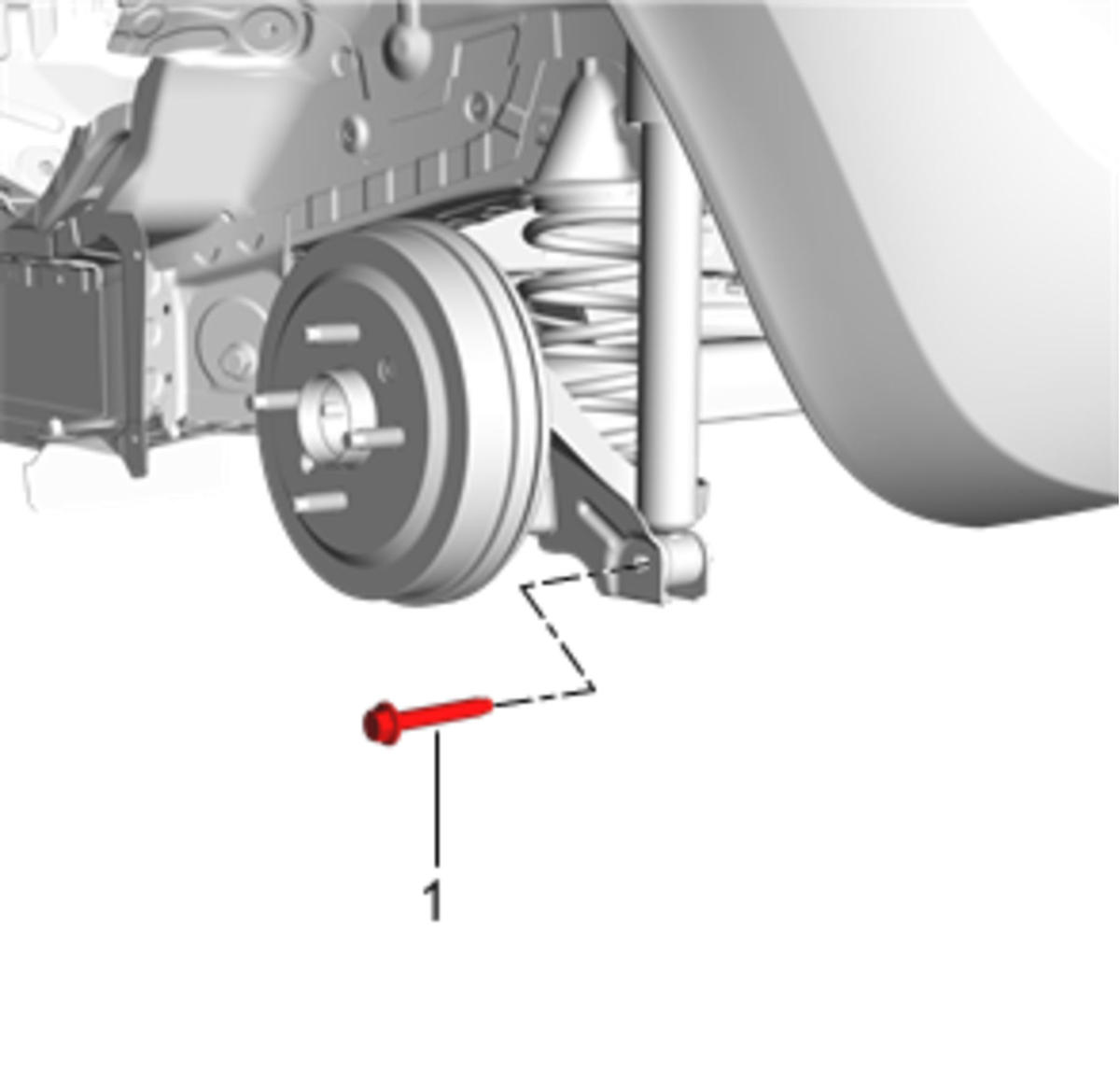

    Fig 3: Rear Shock Absorber Strut To Rear Axle Retaining Bolt
    GM4042028Courtesy of GENERAL MOTORS COMPANY
  5. Remove the hydraulic jack stand from the vehicle.
  6. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  7. Lower the vehicle.
