Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

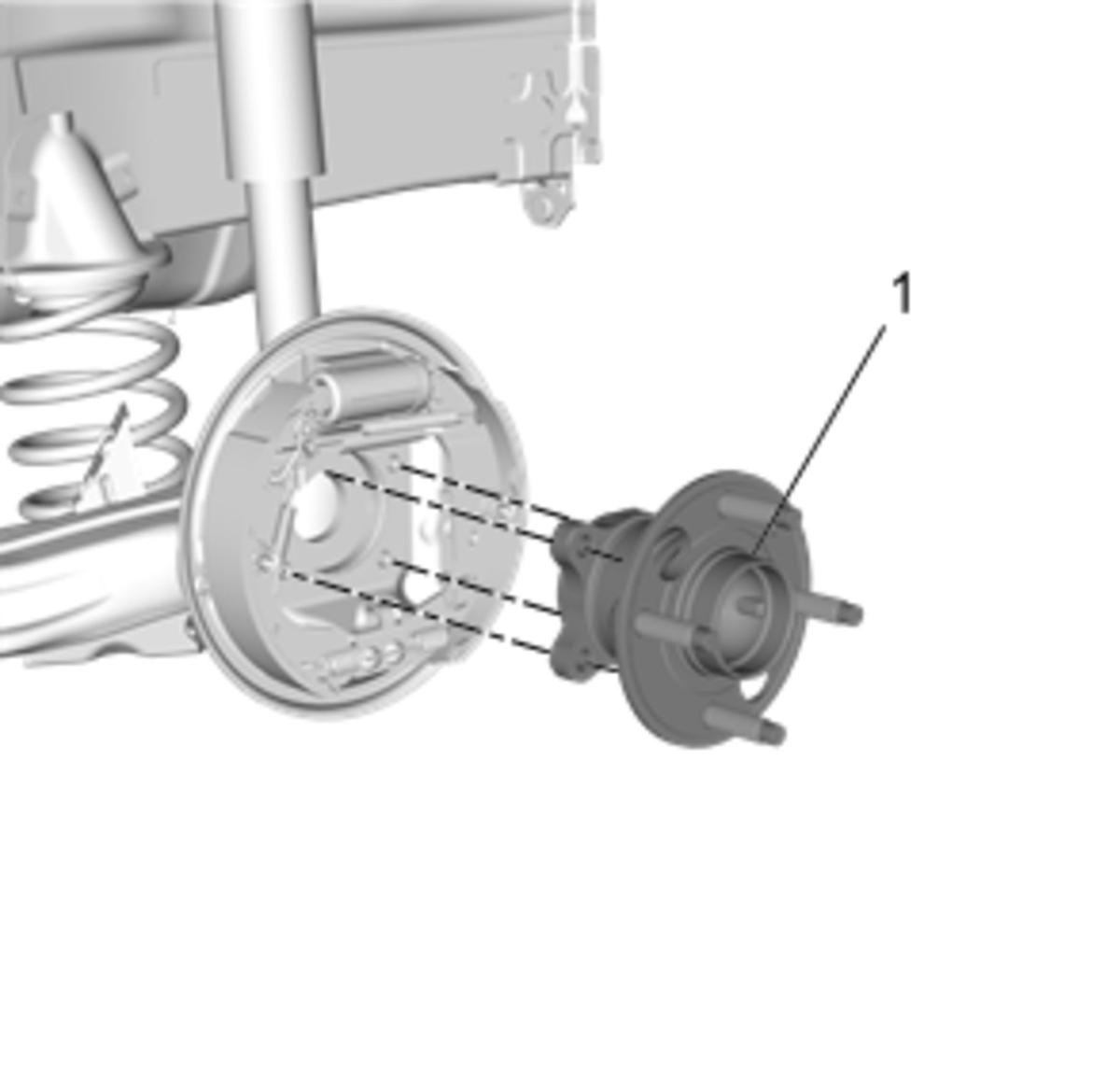

  1. Install the rear wheel bearing and hub assembly (1) to the rear axle.
    Fig 1: Rear Wheel Bearing And Hub Assembly
    GM4042038Courtesy of GENERAL MOTORS COMPANY

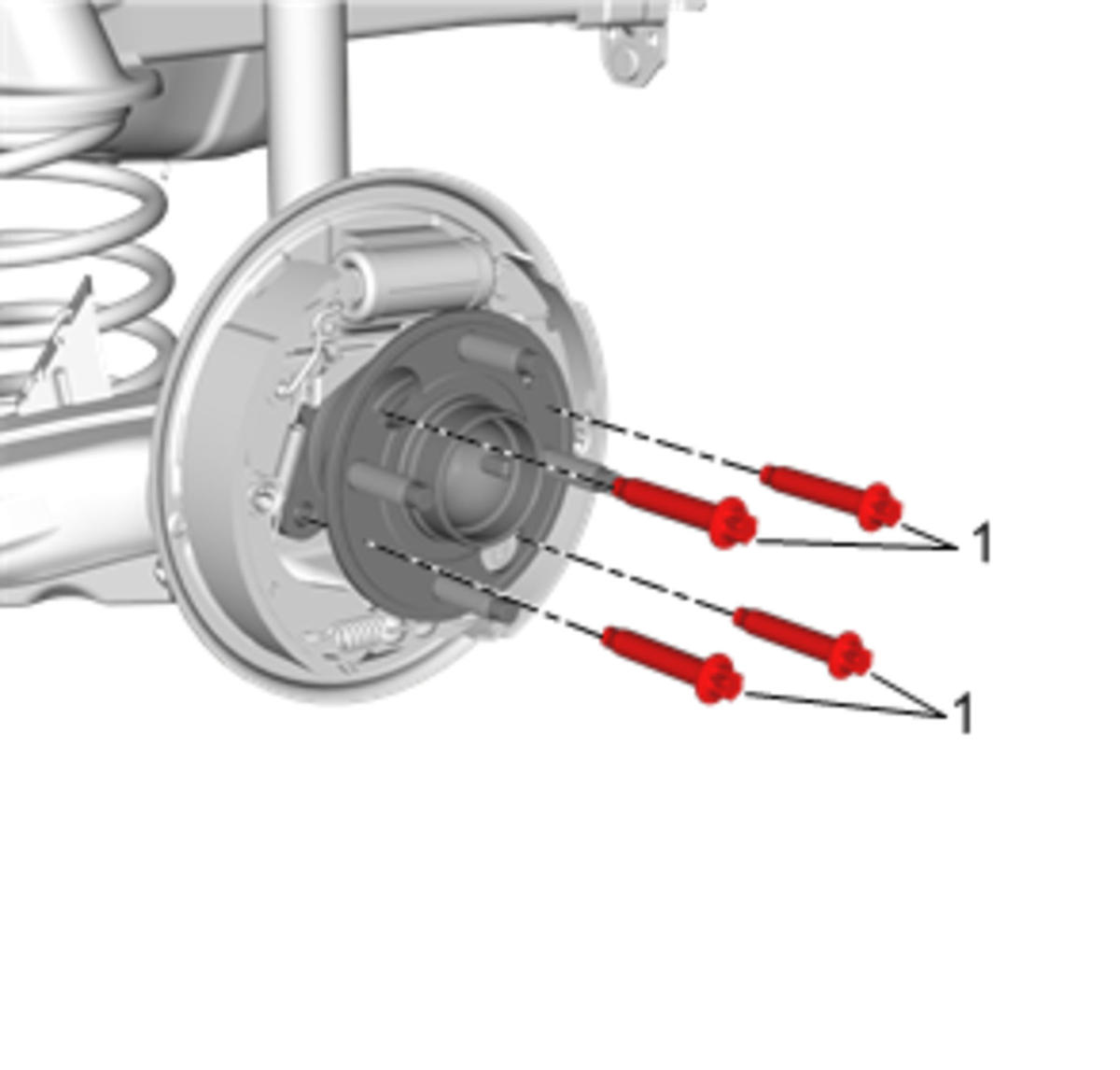

  2. Install the rear wheel hub to rear axle bolts (1) and tighten to 58 N.m (43 lb ft).
    Fig 2: Rear Wheel Hub To Rear Axle Bolts
    GM4042037Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  3. Install the rear wheel speed sensors. Refer to Rear Wheel Speed Sensor Replacement .
  4. Install the brake drum. Refer to Brake Drum Replacement .
  5. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  6. Lower the vehicle.
