Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rear Shock Absorber Mount (2) @ Rear Shock Absorber - Install

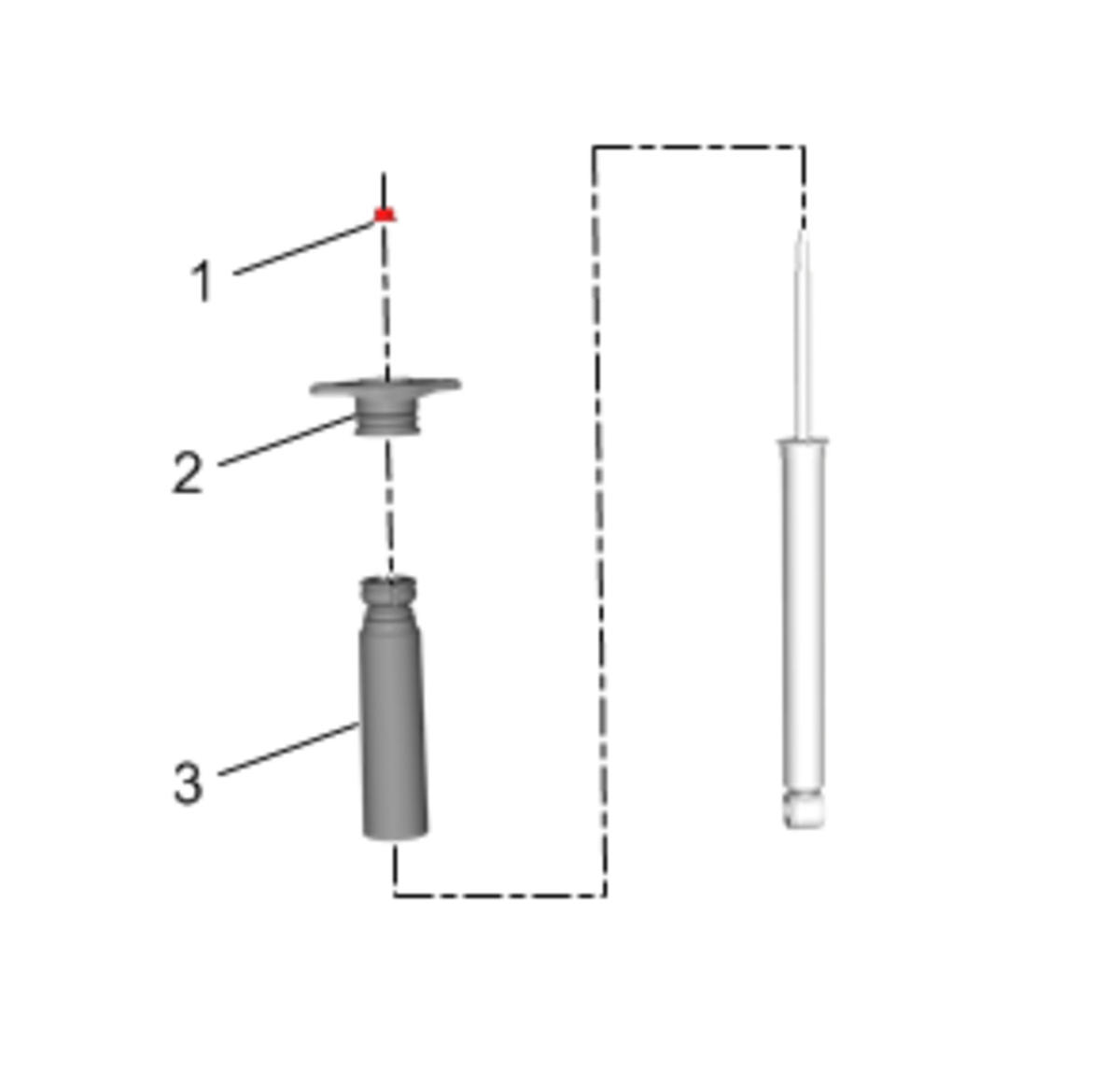

    Fig 1: Rear Shock Absorber Bumper And Mount
    GM4747774Courtesy of GENERAL MOTORS COMPANY
  2. Rear Suspension Shock Absorber Upper Mounting Nut (1) - Install
  3. Use the CH-51095  shock absorber strut nut wrench (1) or equivalent to tighten the rear suspension shock absorber upper mounting nut.

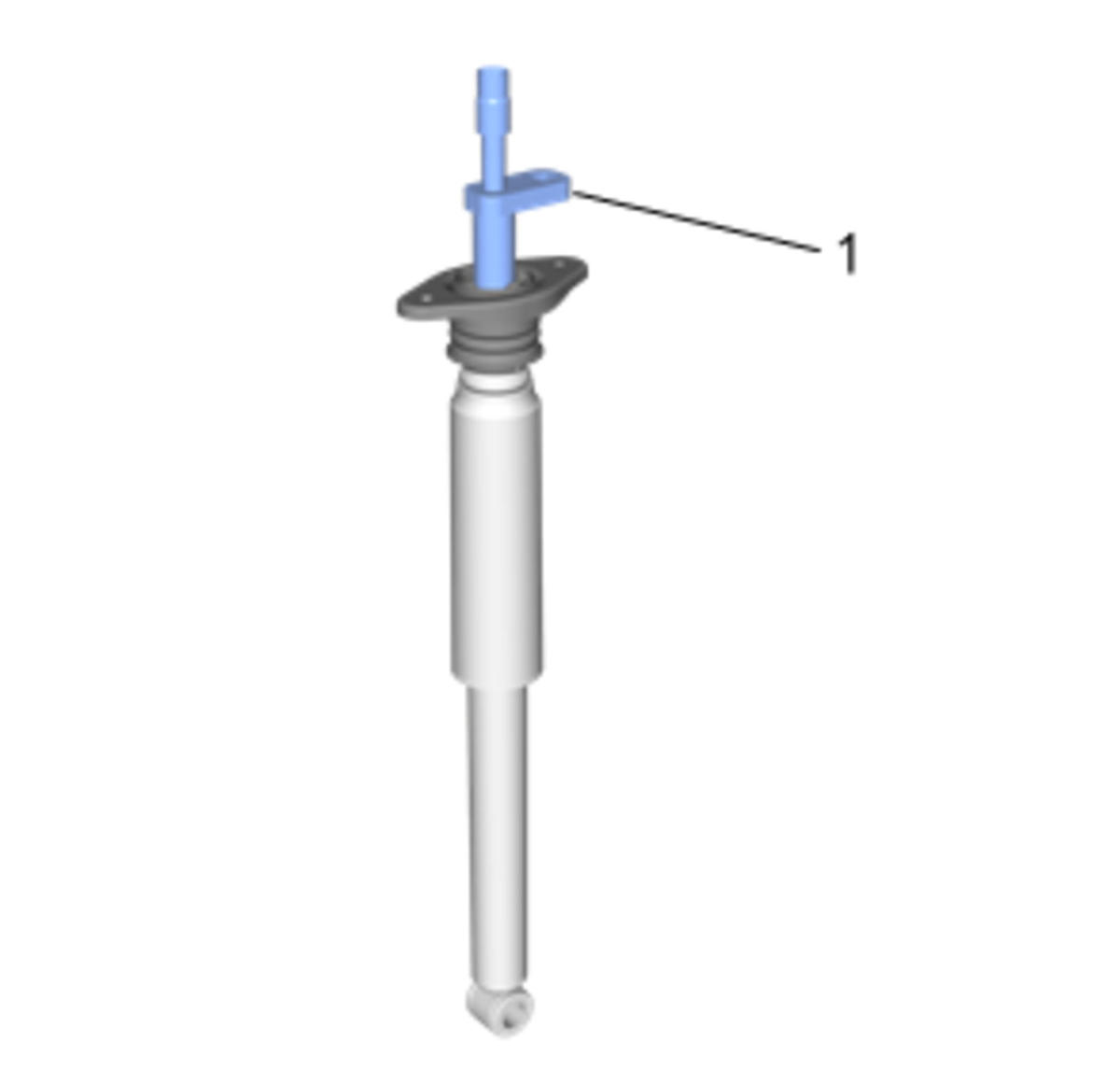

    Fig 2: Shock Absorber Strut Nut Wrench
    GM4747773Courtesy of GENERAL MOTORS COMPANY
  4. Rear Suspension Shock Absorber Upper Mounting Nut - Install and tighten 40 N.m (30 lb ft)
    CAUTION: Fastener Caution
  5. Rear Shock Absorber (1) @ Vehicle - Install - Shock Absorber Replacement

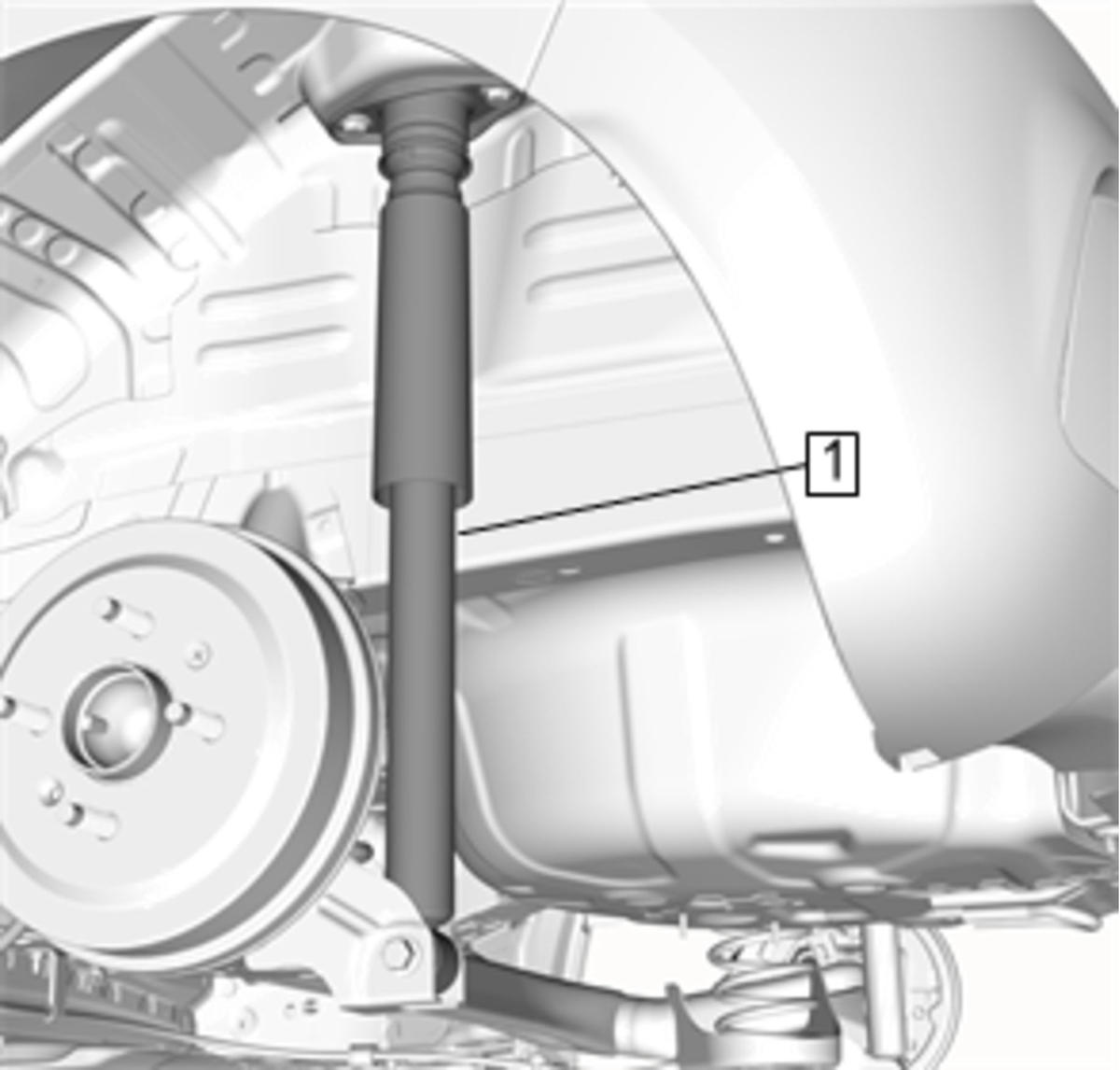

    Fig 3: Rear Shock Absorber
    GM4747772Courtesy of GENERAL MOTORS COMPANY
  6. Install the rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation
  7. Lower the vehicle.
