Installation Procedure
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

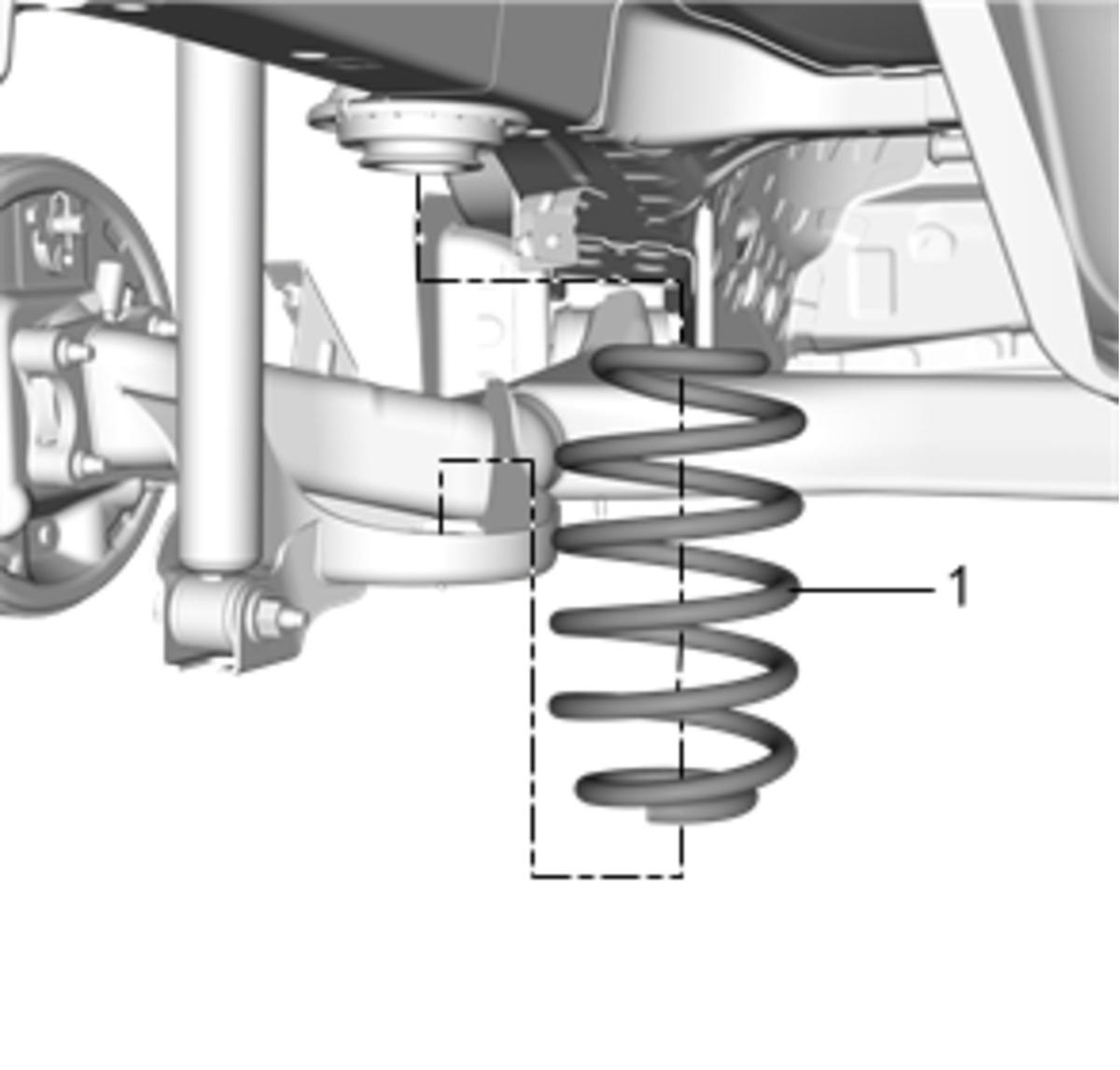

- Install the spring (1) to the vehicle, making sure the lower coil is seated into the lower spring seat.
- Raise the hydraulic jack stand in order to compress the rear spring.
- Install the left and right shock absorber strut to rear axle retaining bolts. Refer to Shock Absorber Replacement .
- Remove the hydraulic jack stand.
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- Lower the vehicle.
