Rear Coil Spring Insulator Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

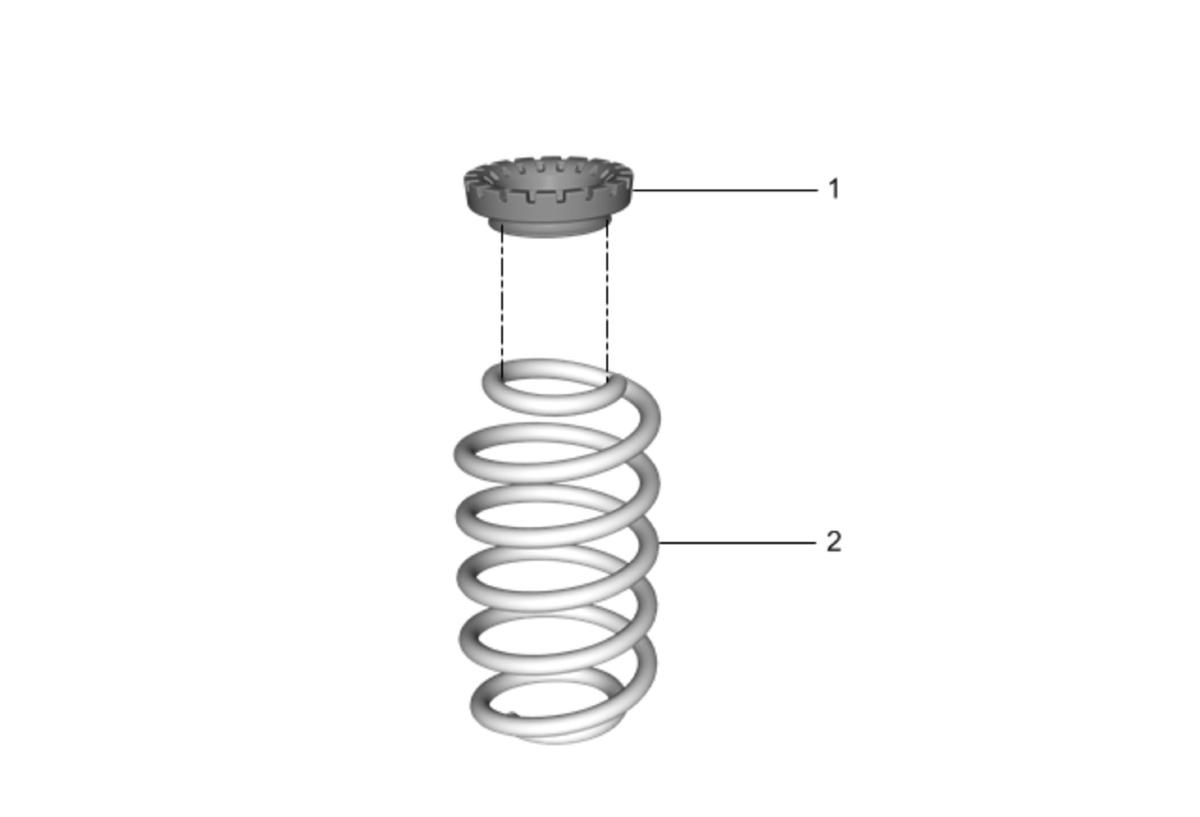

Fig 1: Rear Coil Spring Insulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove the rear coil spring. Refer to Rear Coil Spring Replacement .
1	Rear Coil Spring Insulator
2	Rear Coil Spring

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Remove the rear coil spring. Refer to Rear Coil Spring Replacement .

Rear Coil Spring Insulator

Rear Coil Spring
