Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that the steering wheel is set in a straight ahead position and centered.

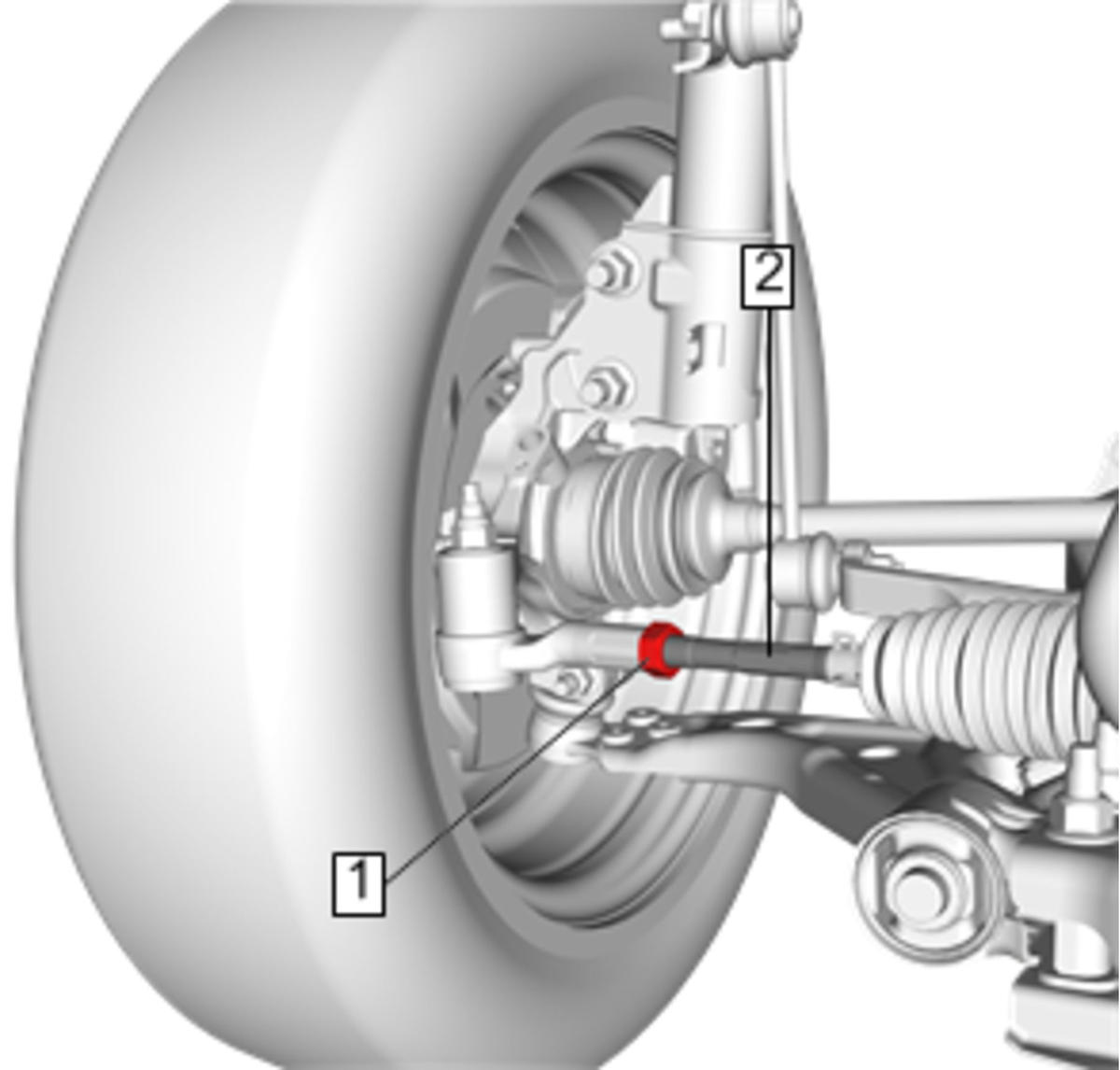

    Fig 1: Steering Linkage Inner Tie Rod Jam Nut And Steering Linkage Inner Tie Rod
    GM4042048Courtesy of GENERAL MOTORS COMPANY
  2. Loosen the steering linkage inner tie rod jam nut (1).
  3. Adjust the toe to specification by turning the adjuster (2). Refer to Wheel Alignment Specifications .
  4. Install the steering linkage inner tie rod jam nut (1) and tighten to 75 N.m (55 lb ft).
    CAUTION: Refer to Fastener Caution .
  5. Check and center the steering angle sensor. Refer to Steering Wheel Angle Sensor Centering .
