Oil Pressure Control (L5Q/LV7)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

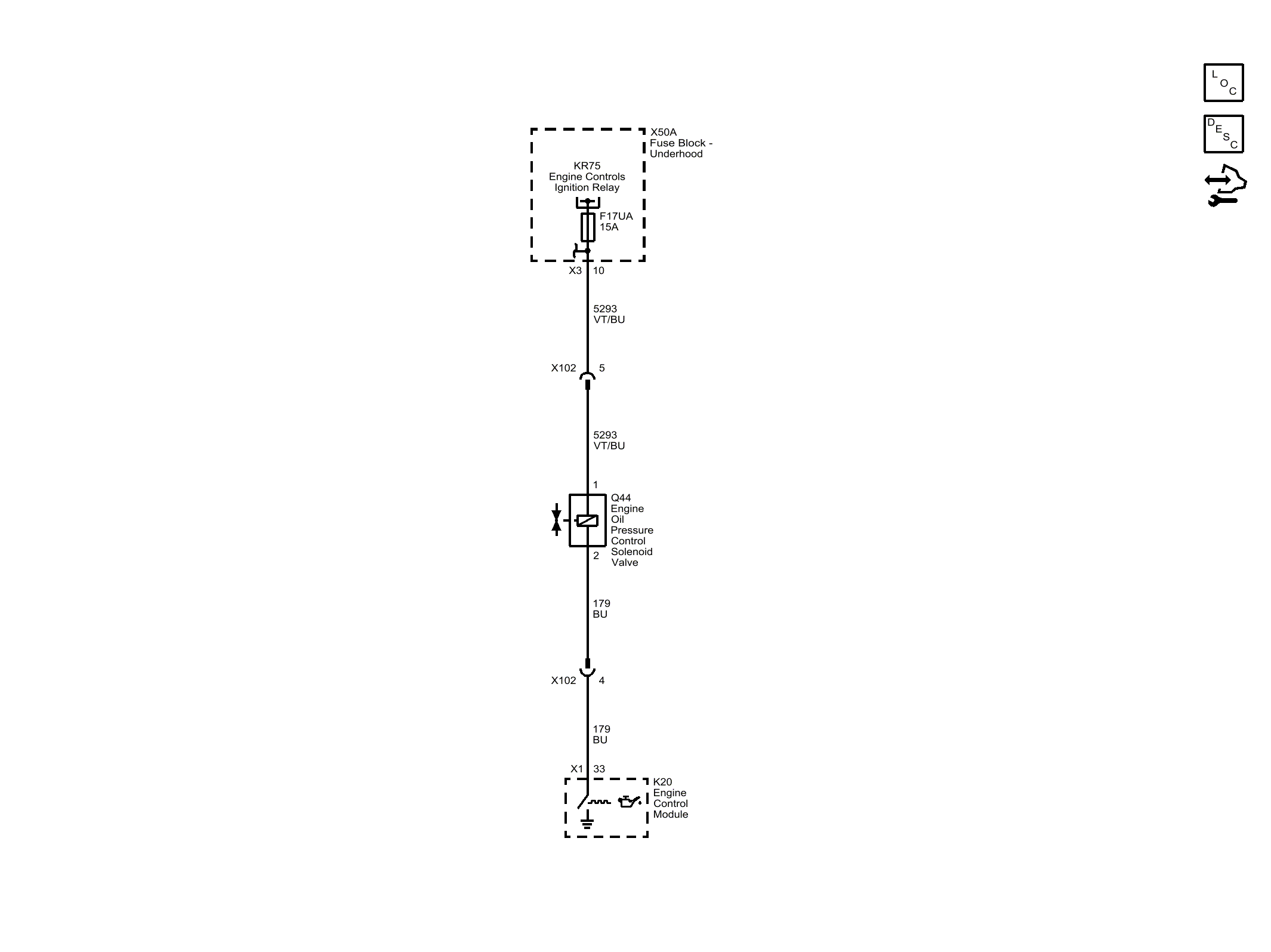

Fig 1: Oil Pressure Control (L5Q/LV7)
GM4322545Courtesy of GENERAL MOTORS COMPANY
