Front Seat Belt Buckle Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

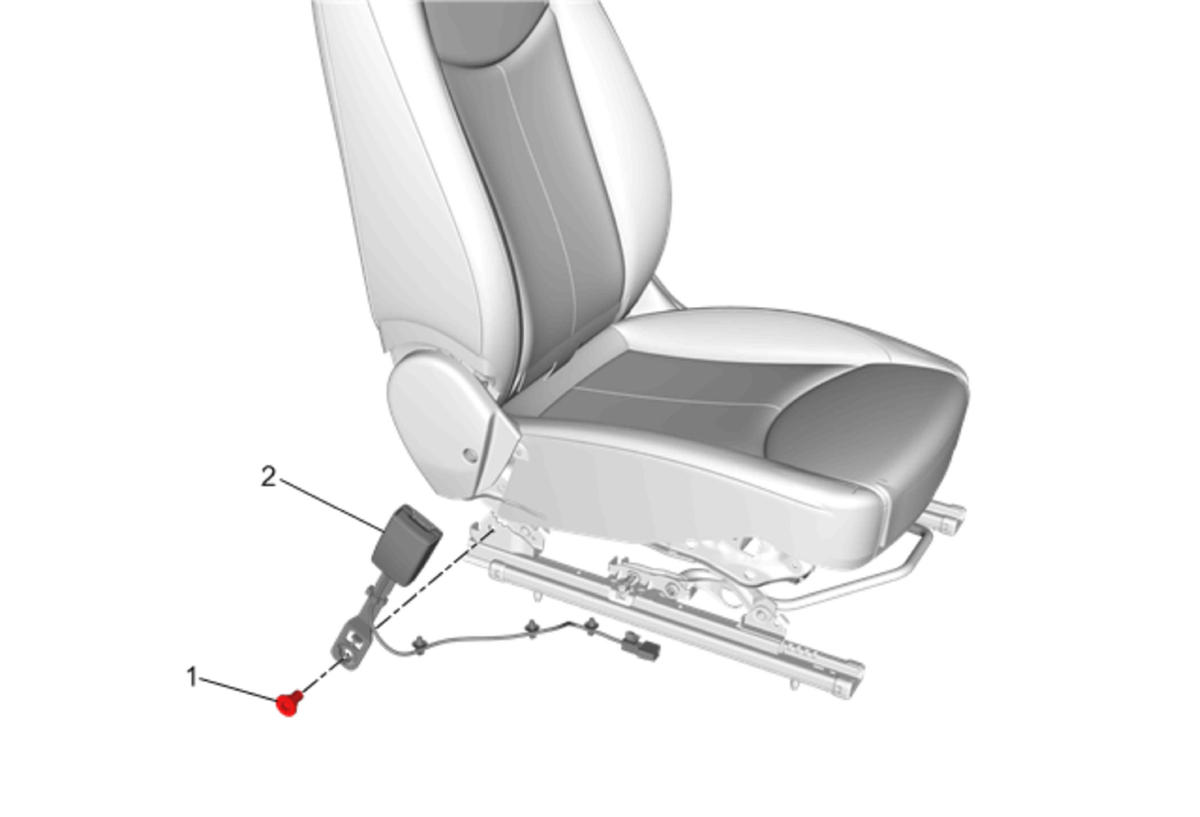

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation . |
|
| 1 | Front Seat Belt Buckle Bolt
CAUTION:
Refer to Fastener Caution
. Tighten 40 N.m (30 lb ft) |
| 2 | Front Seat Belt Buckle Assembly |
