Front Seat Heater Switch Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

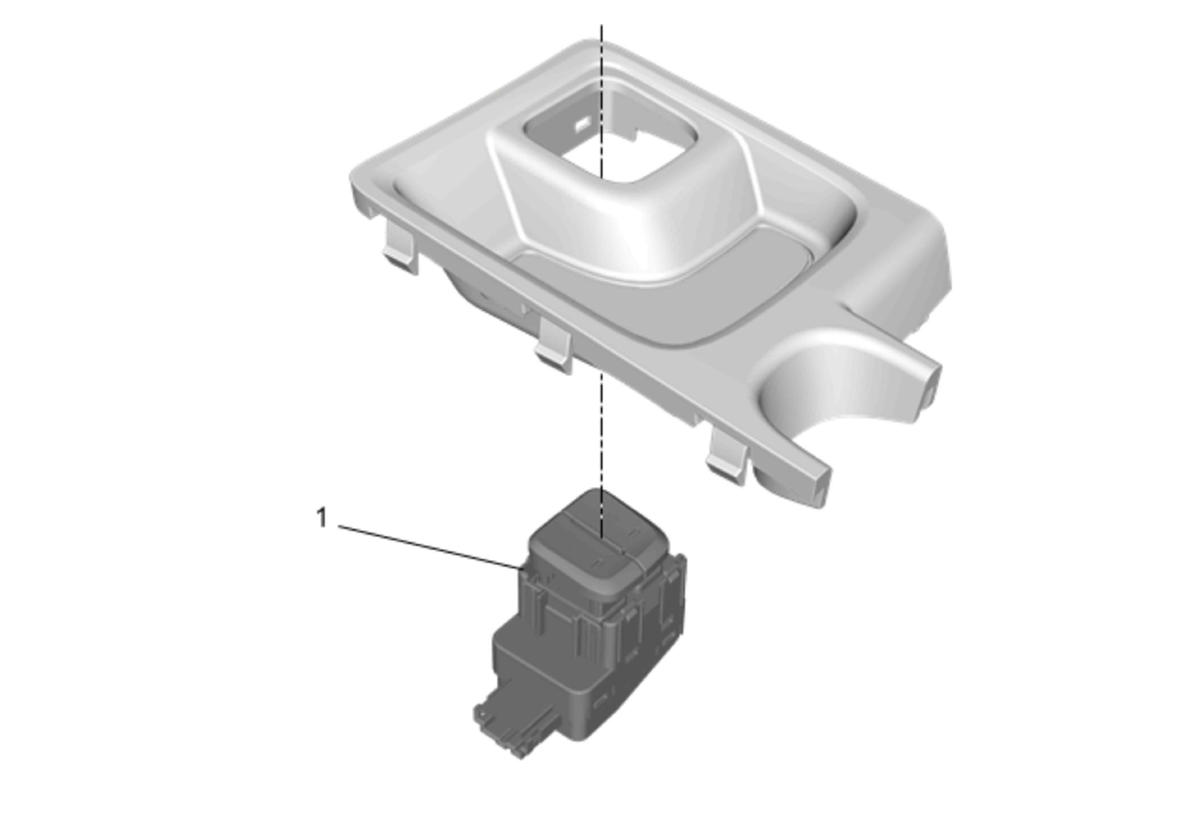

Fig 1: Front Seat Heater Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console front cover. Refer to Front Floor Console Front Cover Replacement .
2	Front Seat Heater Switch Procedure Remove the front seat heater switch from the front floor console front cover. Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedure
Remove the front floor console front cover. Refer to Front Floor Console Front Cover Replacement .

Front Seat Heater Switch

Procedure

Remove the front seat heater switch from the front floor console front cover.
Disconnect the electrical connectors.
