Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Vehicle Lifting and Jacking Caution .
  2. Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Remove the front brake rotor. Refer to Front Brake Rotor Replacement .

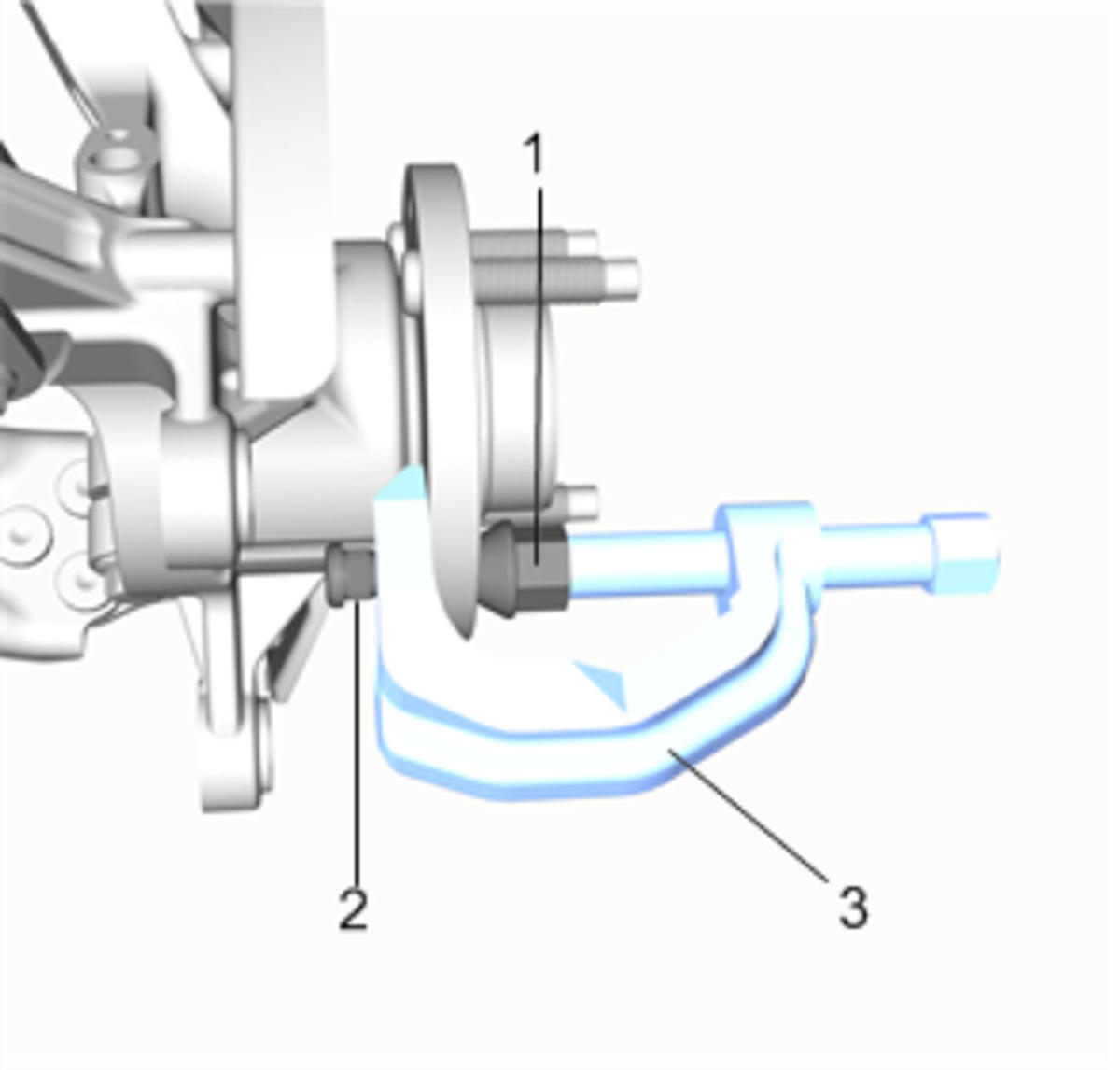

  4. Hand tighten the wheel nut (1) to the wheel stud (2) and install CH-43631  ball joint separator (3).
    Fig 1: Wheel Stud And Nut
    GM4041934Courtesy of GENERAL MOTORS COMPANY
  5. Using the CH-43631  ball joint separator (3), remove the wheel stud (2) from the wheel hub and discard the wheel stud.
    NOTE: Use the groove on the outer surface of steering knuckle when removing the wheel stud from the wheel hub.
