Strut and Shock Absorber Inspection: Notes

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The strut assembly DOES NOT have to be removed from the vehicle to perform the following inspection procedure.
NOTE: A light film of oil on the top portion of the strut is normal. DO NOT replace the strut for this condition.

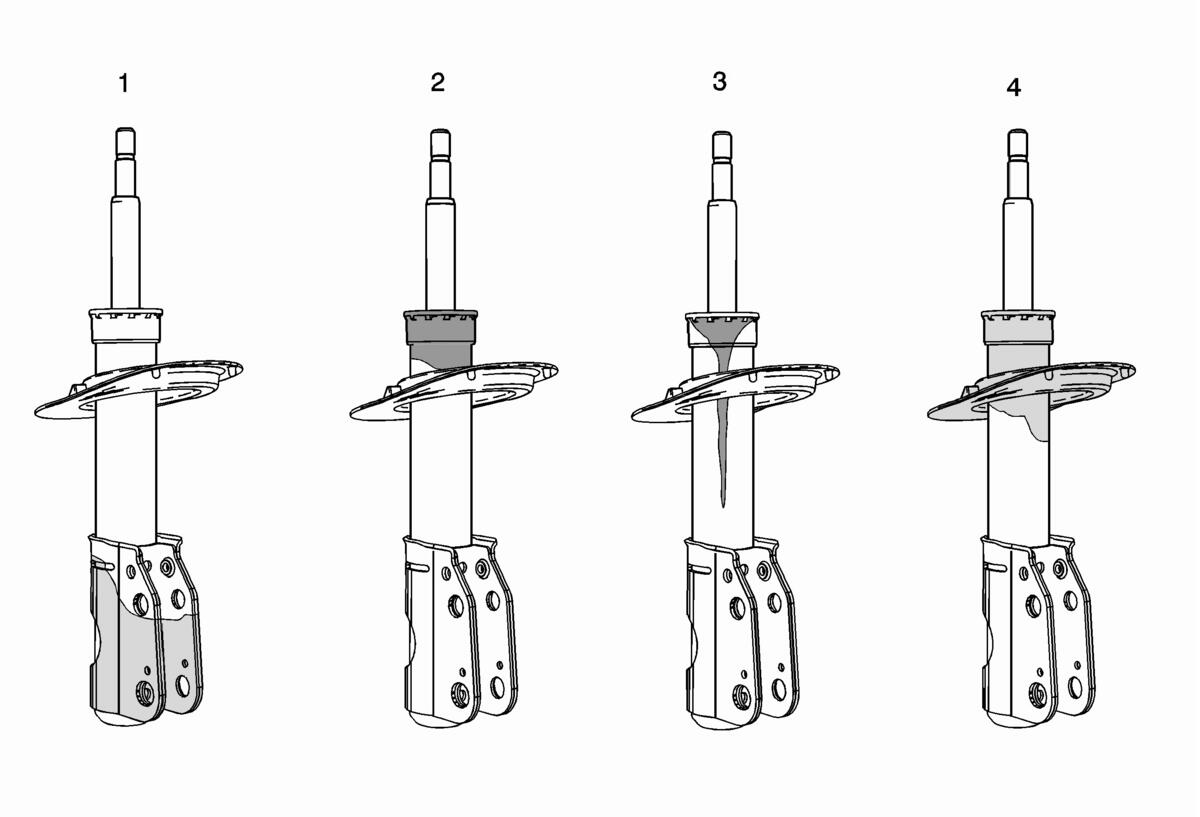

Fig 1: Strut and Shock Absorber Inspection
GM4679136Courtesy of GENERAL MOTORS COMPANY
